Midea M thermal Mono Engineering Data Book
3 Piping Diagrams

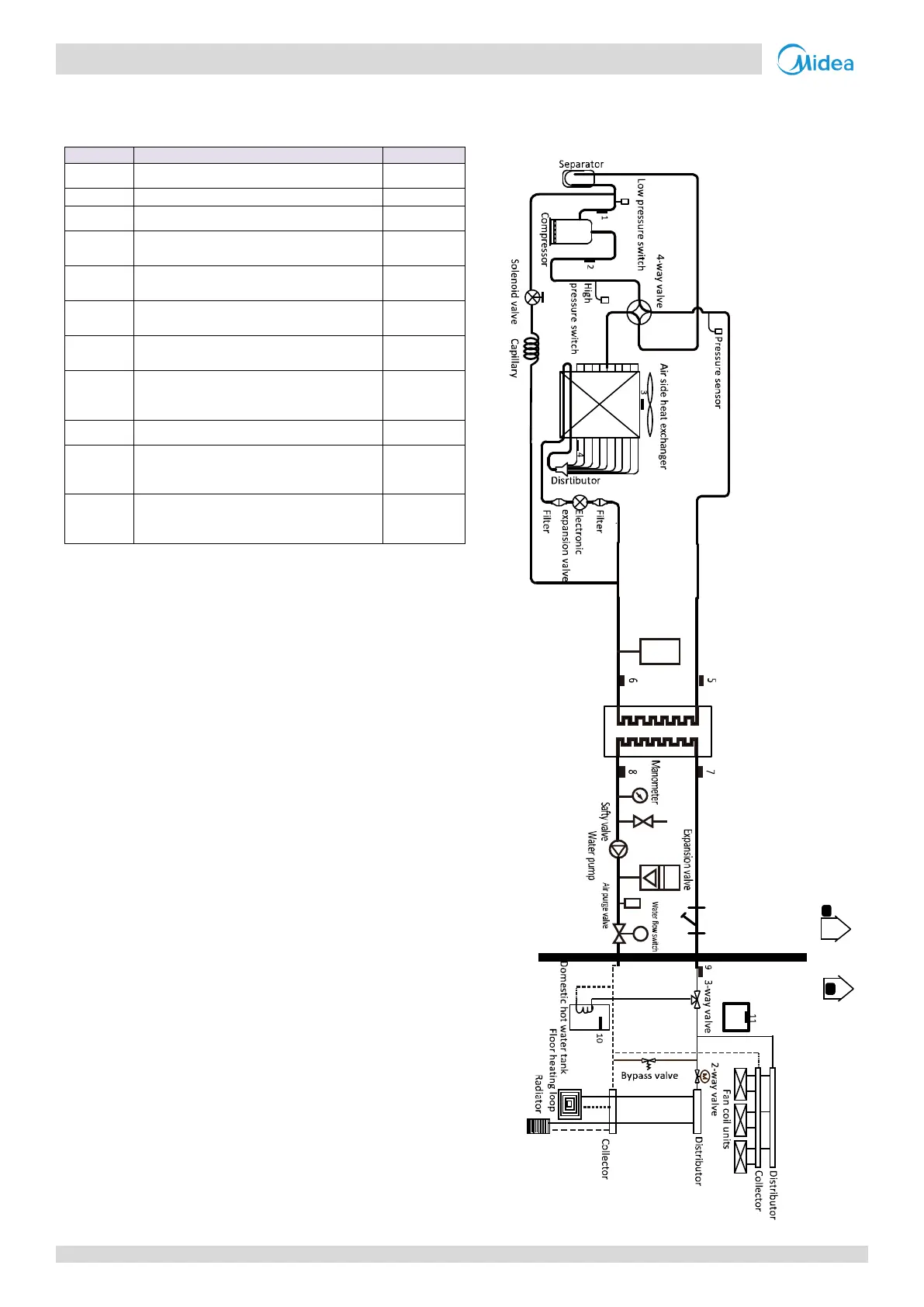

Figure 2-3.1: MHC-V18(22, 26,30)W/D2RN8 piping diagram
Number
Sensor name
Sensor code
1
Suction pipe temperature sensor
Th
2
Discharge pipe temperature sensor
Tp
3
Outdoor ambient temperature sensor
T4
4
Air side heat exchanger refrigerant
outlet temperature sensor
T3
5
Water side heat exchanger refrigerant
outlet (gas pipe)
temperature sensor
T2B
6
Water side heat exchanger refrigerant
outlet (liquid pipe)
temperature sensor
T2
7
Water side heat exchanger water outlet
temperature sensor
Tw_out
8
Water side heat exchanger water inlet
temperature sensor
Tw_in
9
Final water outlet temperature sensor
T1
10
Domestic hot water tank temperature
sensor
T5
11
Room temperature sensor
(Built-in controller)
Ta
F
