M thermal Mono
202004 47

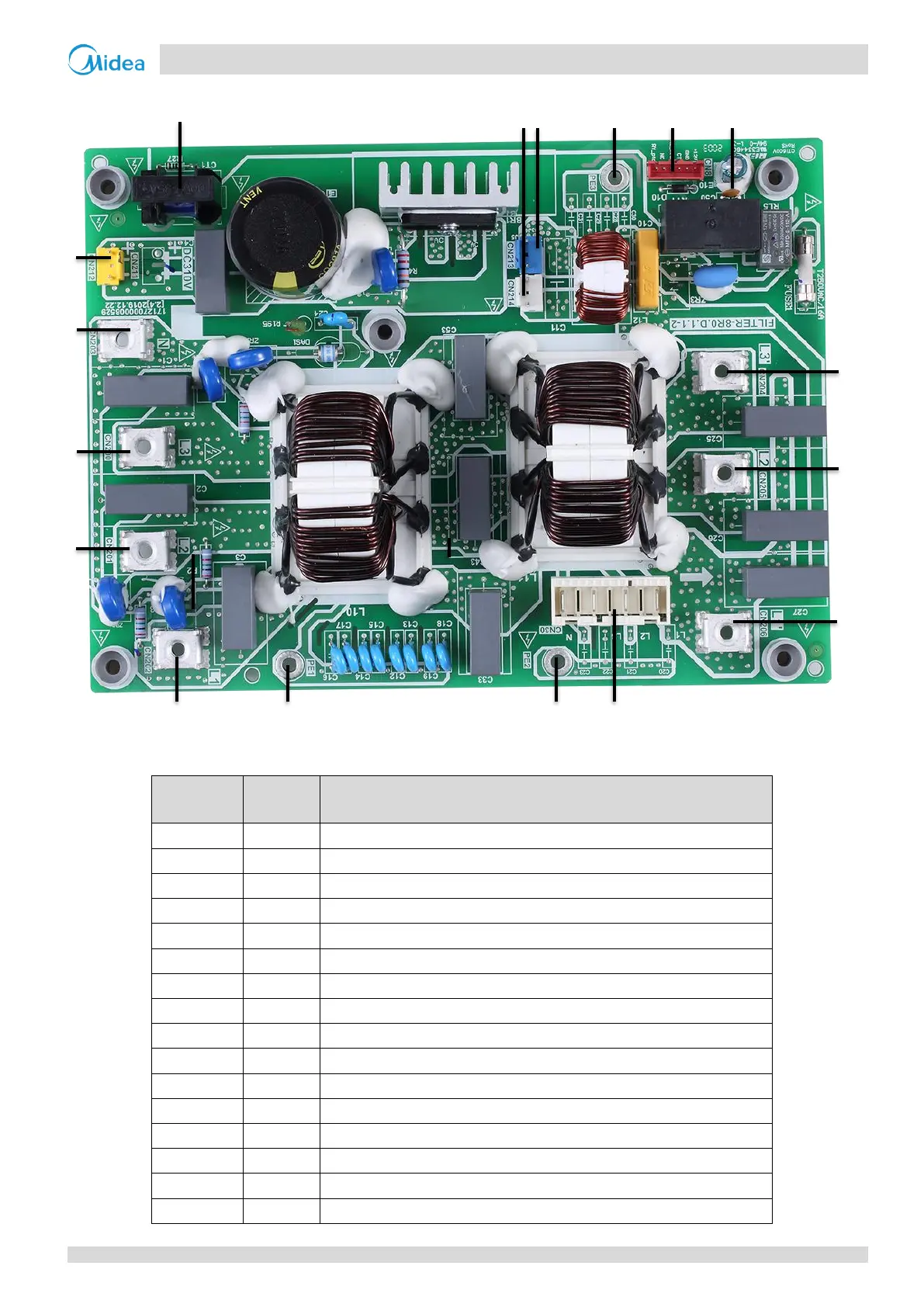

Figure 4-2.8: MHC-V12(14, 16)W/W/D2RN8-B outdoor unit filter board
5 6 7 8 9 10
4
3
2
1
11
12
13
16 15 14 13
Table 4-2.8: MHA-V12(14,16)W/D2RN8-B outdoor unit filter board
Label in
Figure 4-2.8
Code
Content
1
CN201
Power supply L2
2
CN200
Power supply L3
3
CN203
Power supply N
4
CN212
Power supply port of 310VDC
5
CN211
Power supply port for load
6
CN213
Port for FAN Reactor
7
CN214
Power supply port for Inverter module
8
PE3
Ground wire
9
CN8
Port for communication with FILTER BOARD
10
L3’
Power filtering L3
11
L2’
Power filtering L2
12
L1’
Power filtering L1
13
CN30
Power supply port for main control board
14
PE2
Ground wire
15
PE1
Ground wire
16
L1
Power supply L1
Midea CAC Confidential
