Indoor Unit Disassembly 7
Procedure Illustration

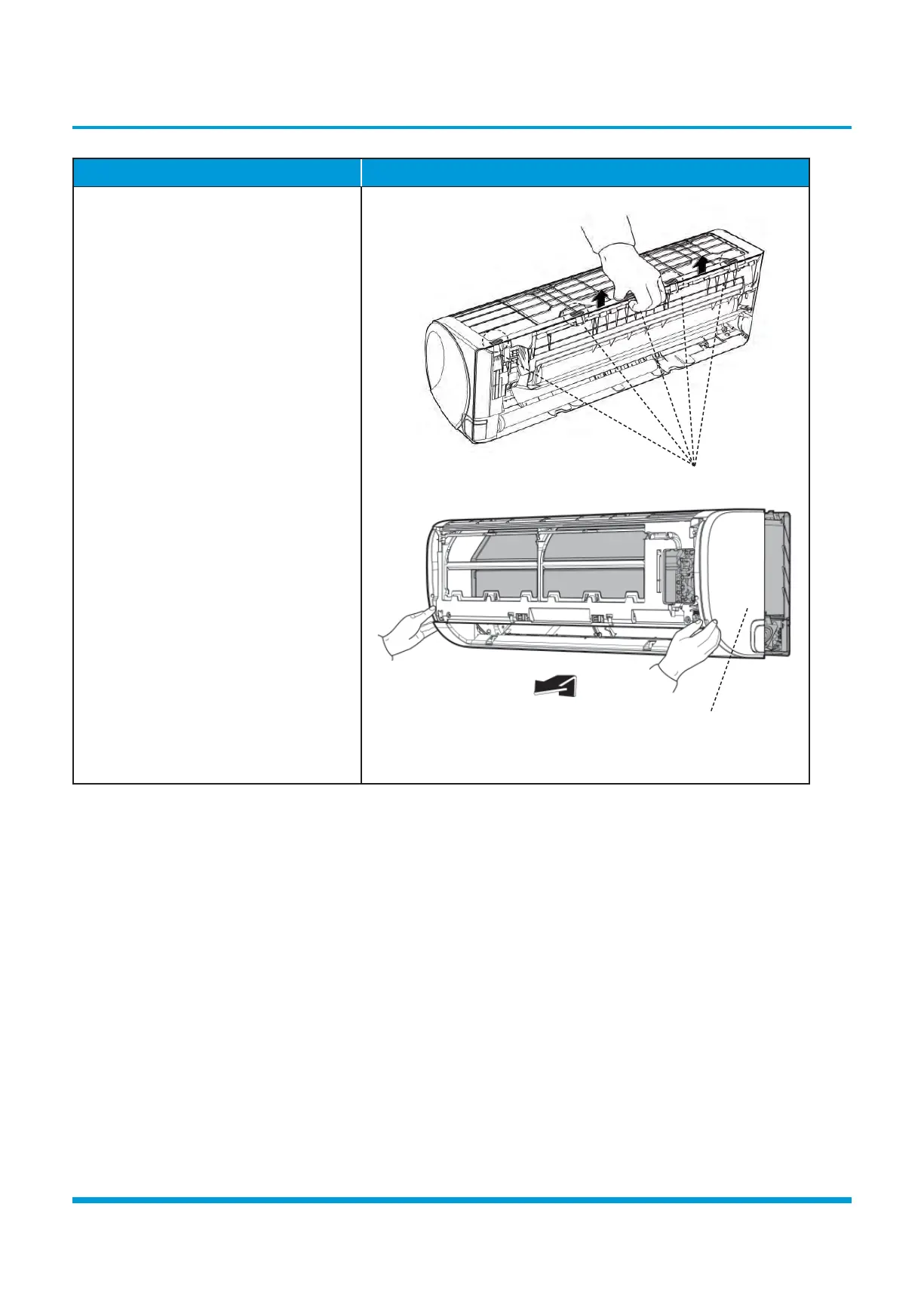

11) Release the fi ve hooks in the back (see
CJ_MA_009).
12) Pull out the panel frame while
pushing the hook through a clearance
between the panel frame and the heat
exchanger (see CJ_MA_010).
CJ_MA_009
CJ_MA_010
Note: This section is for reference only. Actual unit appearance may vary.
Hooks
Panel Frame
To Next Page
