Indoor Unit Disassembly 13

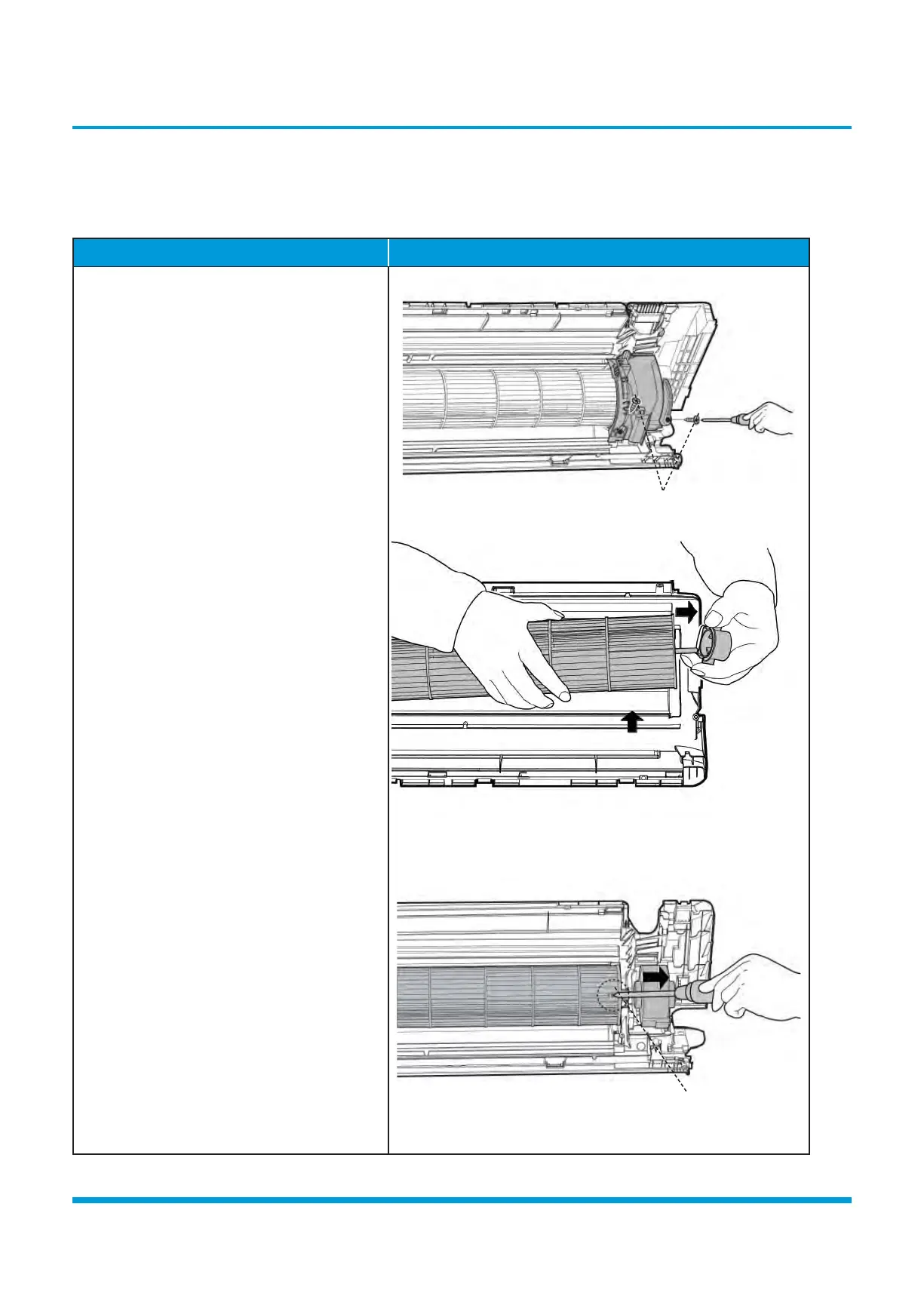

2.4 Fan motor and fan
Note: Remove the front panel, electrical parts and evaporator (refer to 1. Front panel, 2. Electrical parts, and
3. Evaporator). before disassembling fan motor and fan.
Procedure Illustration
1) Remove the two screws and remove the
fi xing board of the fan motor (see CJ_
MA_020).
2) Remove the Bearing sleeve(see CJ_
MA_021).
3) Remove the fi xing screw (see CJ_MA_022).
4) Pull out the fan motor and fan assembly
from the side.
CJ_MA_020
CJ_MA_021
CJ_MA_022
Note: This section is for reference only. Actual unit appearance may vary.
Fixing Screw
Screws
