Indoor Unit Disassembly 9
Procedure Illustration

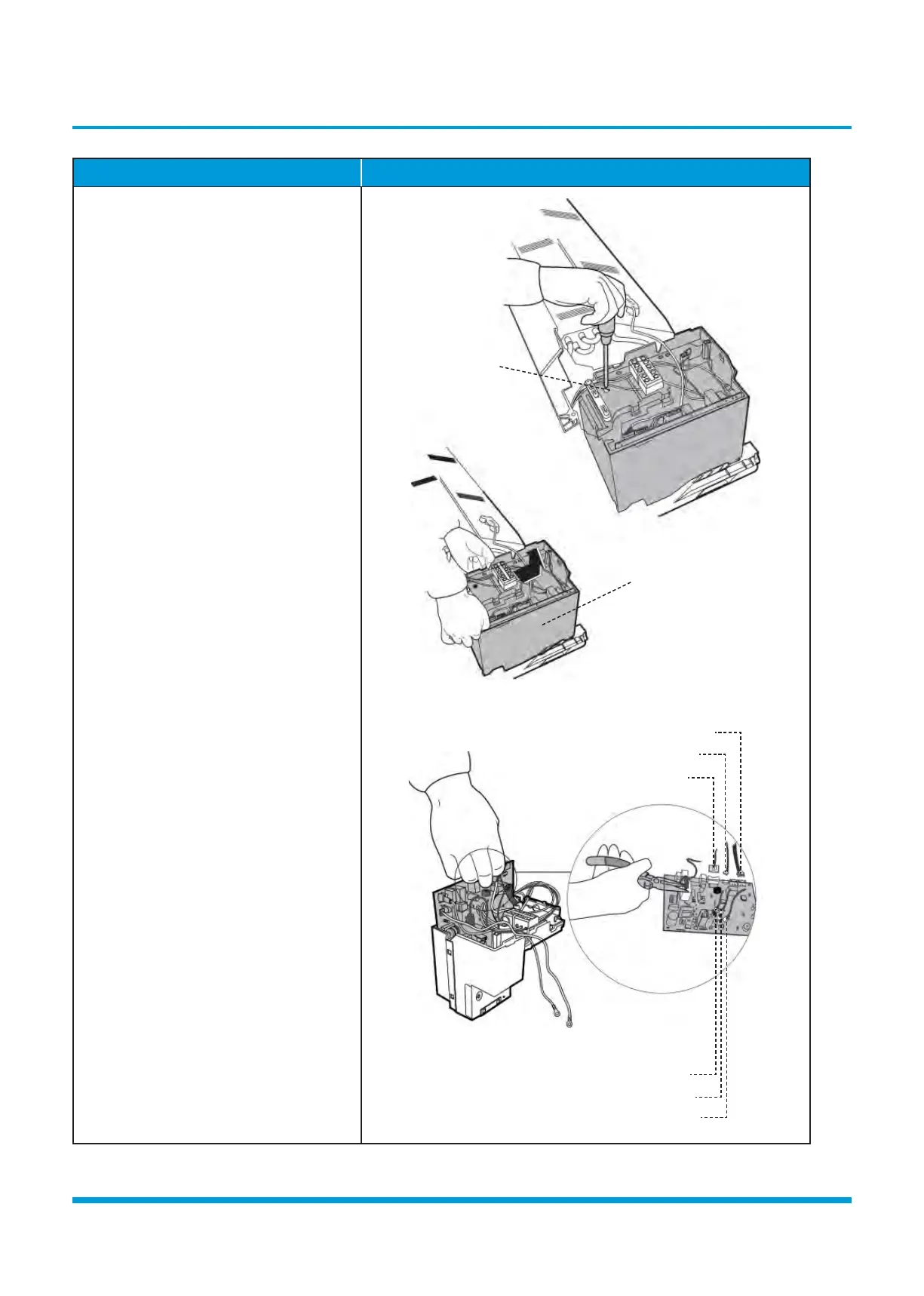

4) Remove the fi xing screw (see CJ_
MA_013-1).
5) Pull out the Electrical control box along
the direction indicated in right image
to remove it (CJ_MA_013-2).
6) Disconnect the wires. Then remove the
electronic main board (CJ_MA_014).
CJ_MA_013-2
CJ_MA_014
Note: This section is for reference only. Actual unit appearance may vary.
Fixing Screw
Electronic Box
Indoor Fan Motor
Applicable to AC Motor Only
Swing Motor
Display Board
Pipe Temperature Sensor
Room Temperature Sensor
CJ_MA_013-1
