Outdoor Unit Disassembly 19
Procedure Illustration

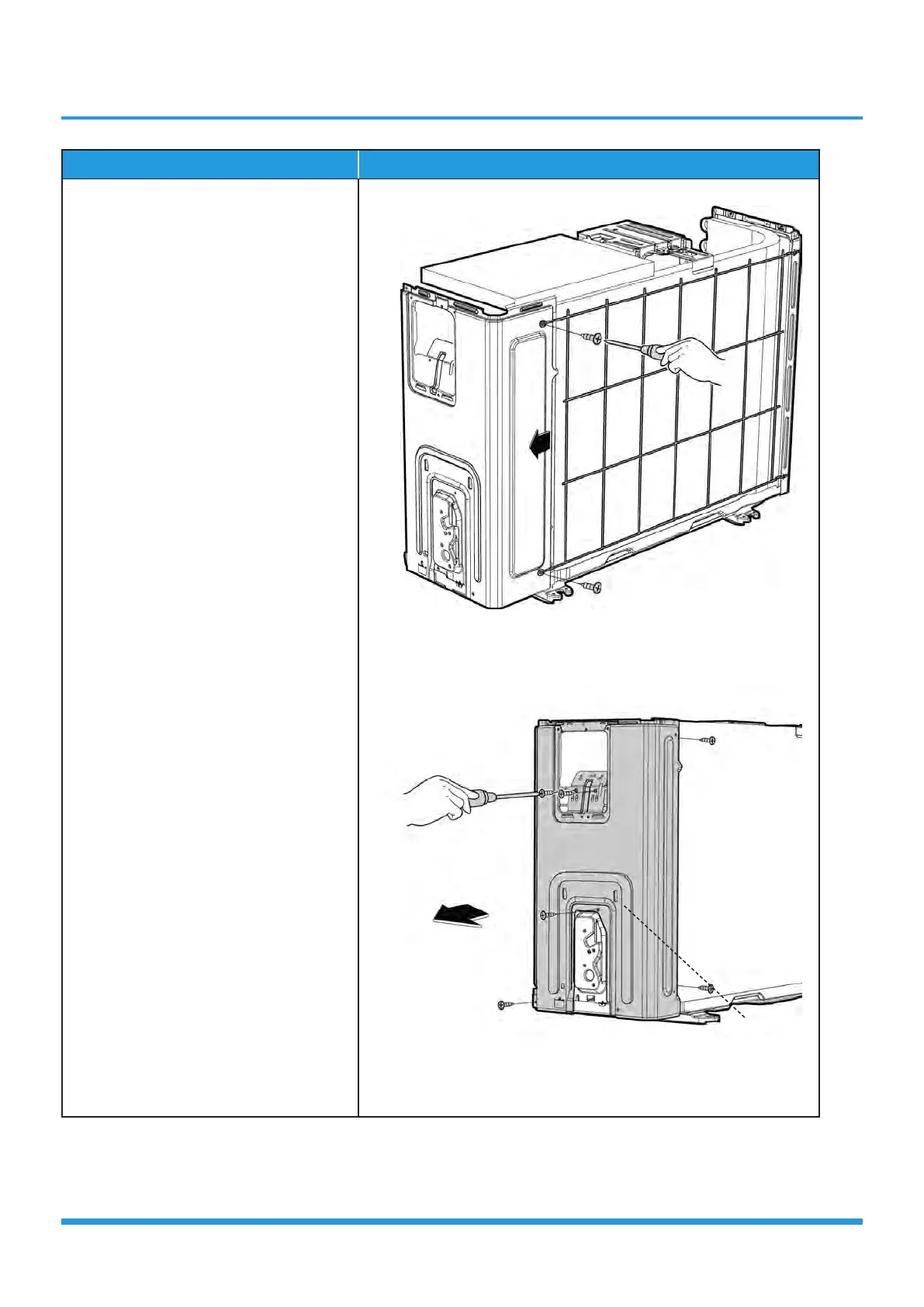

6) Remove the screws of the rear net and
then remove the rear net (2 screws)
(see CJ_BA01_005). (for some
models)
7) Remove the screws of the right panel
and then remove the right panel
(5 screws) (see CJ_BA01_006).
CJ_BA01_005
CJ_BA01_006
Note: This section is for reference only. Actual unit appearance may vary.
Right Panel
To Next Page
