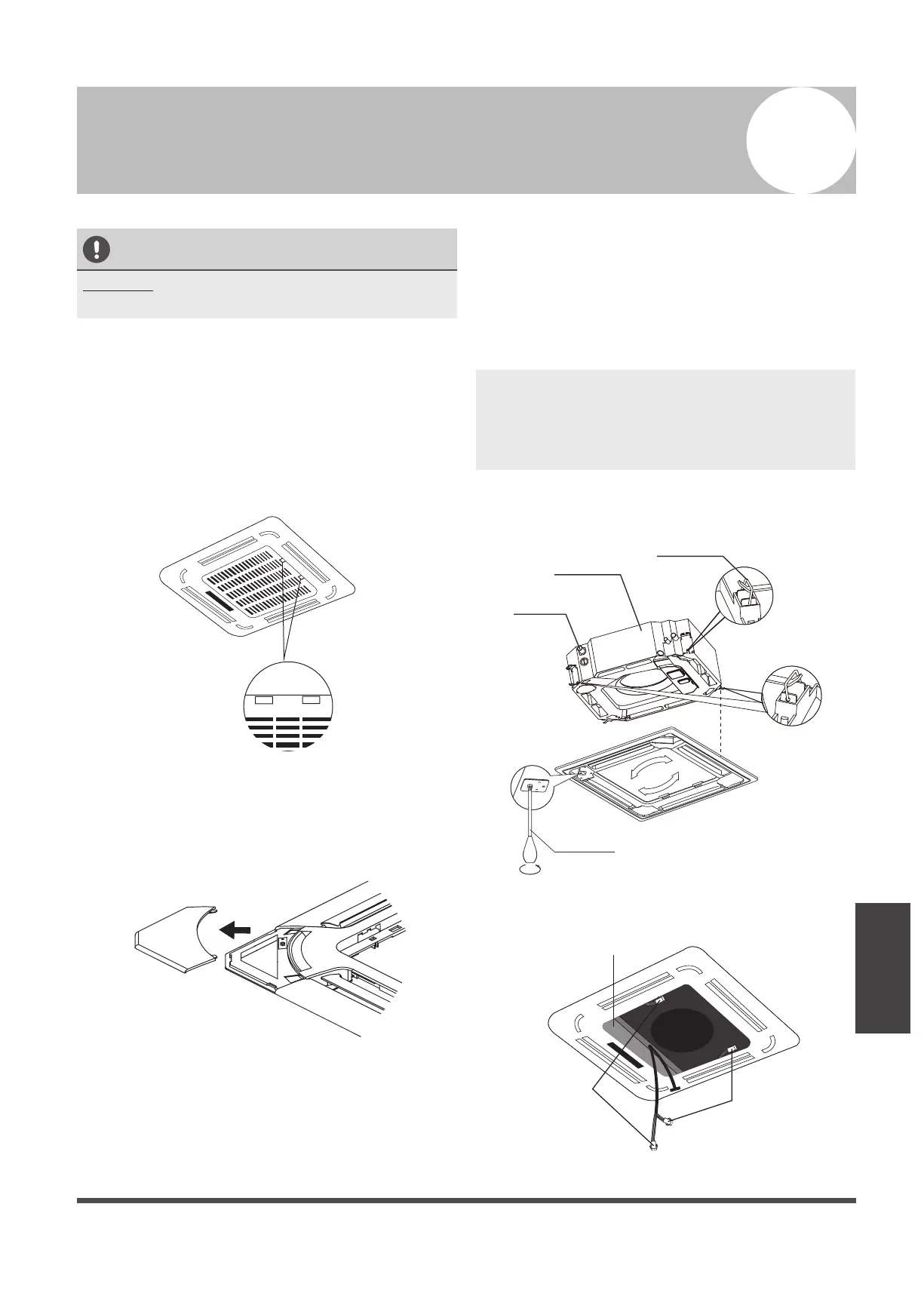

Panel Installation
CAUTION
DO NOT place the panel facedown on the floor,
against a wall, or on uneven surfaces.
Step 1: Remove the front grille.
1. Push both of the tabs towards the middle
simultaneously to unlock the hook on the
grille.
2. Hold the grille at a 45° angle, lift it up
slightly and detach it from the main body.
Fig. 10.1
Step 2: Remove the installation covers at the
four corners by sliding them outwards.
Fig. 10.2
Step 3: Install the panel
Align the front panel to the main body, taking
into account the position of the piping and
drain sides. Hang the four latches of the
decorative panel to the hooks of the indoor
unit. Tighten the panel hook screws evenly at
the four corners. (See Fig 10.3)
NOTE: Tighten the screws until the thickness of
the sponge between the main body and the
panel reduces to 4-6mm (0.2-0.3”). The edge
of the panel should be in contact with the
ceiling well.
Adjust the panel by turning it to the arrowed
direction shown in Fig 10.3 so that the ceiling
opening is completely covered.
Piping side
Drain side
Screwdriver
1.
Connect the two louver motor connectors
to the corresponding wires in the control
box.
Connect the
louver motor
Connect the
louver motor
Fig. 10.4
Fig. 10.3
Panel Installation
10
