Midea MOV-120CN1-C - Page 44

R410A 50Hz Tropical Split AC MCAC-UTSM-2012-12
44

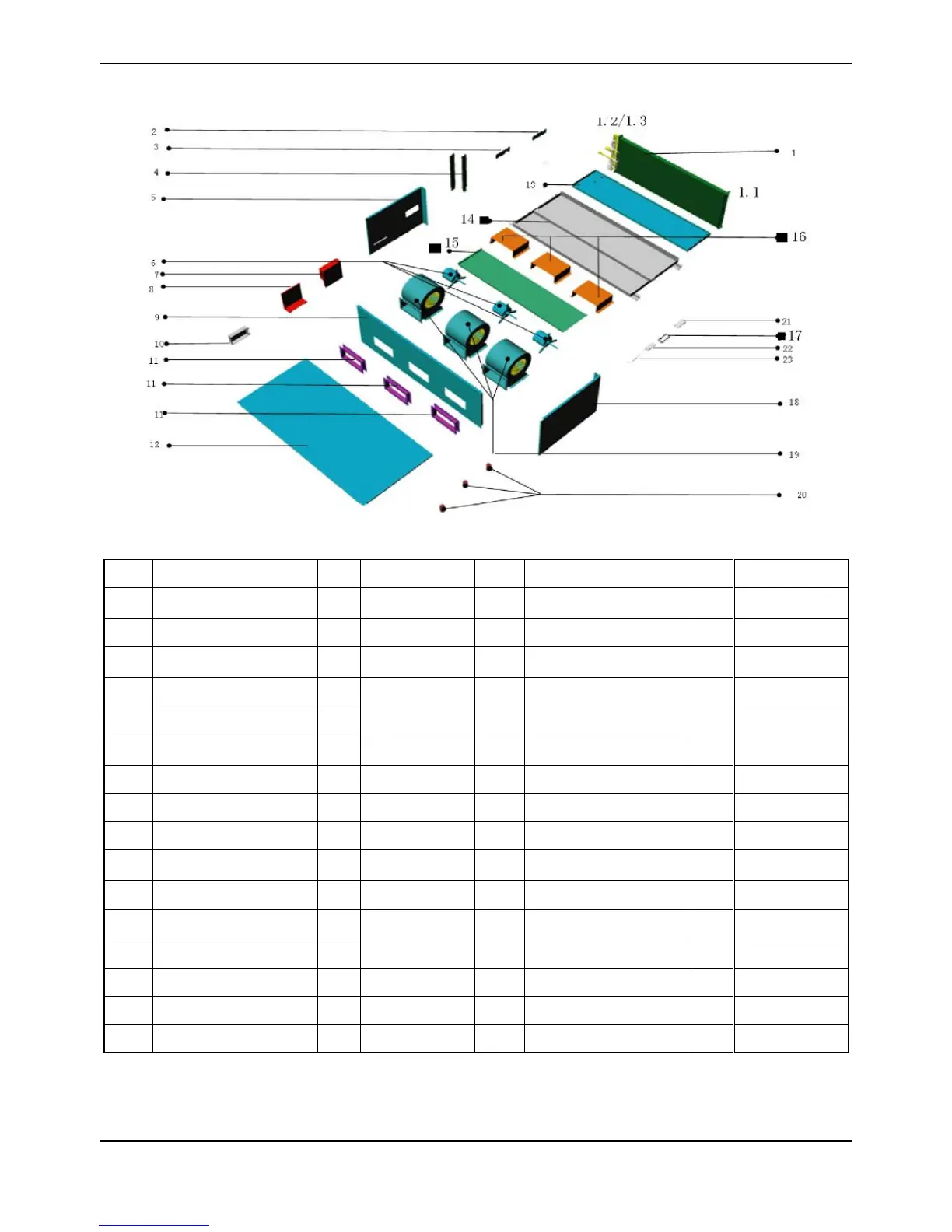

11.6 MTA-120HRN1
No.
Part Name
QTY
BOM Code
No.
Part Name
QTY
BOM Code
1
Evaporator ass'y
1
201570990082
8
Components of electronic
control box cover
1
201270600180
1.1
Evaporator
1
201570990083
9
Front panel ass'y
1
201286910001
1.2
Inlet pipe ass'y of
evaporator
1
201670990108
10
Capacitor box
3
201286900512
1.3
Outlet pipe ass'y of
evaporator
1
201670990107
11
Air outlet ass'y
3
201285000612
2
Pipe clamp ass'y
1
201270990000
12
Top cover ass'y
1
201286900504
3
Pipe clamp ass'y
1
201270990001
13
Drainage pan ass'y
1
201252600013
4
Evaporator left clapboard
2
201252600012
14
Base ass'y
1
201286910002
5
Left clapboard ass'y
1
201270990002
15
Drainage pan ass'y
1
201252600023
6
Asynchronous motor
3
202400400641
16
Motor installation board
3
201286910000
7
Indoor electronic control
box components
1
203370990033
17
Display board ass'y
1
203342090051
7.1
E-part box
1
201285000350
18
Right cover ass'y
1
201286900503
7.2
Main control board
assembly
1
201370900071
19
Volute shell ass'y
3
201200300201
7.3
Relay
3
202300800003
20
compressor Capacitor
3
202401000065
7.4
Transformer
1
202300900093
21
Remote controller
1
203355090100
7.5
Wire joint, 7p
1
202301450056
22
Room temp sensor ass'y
1
202301300214
7.6
Wire joint
2
202301450122
23
Temp.sensor ass'y
1
202440500002
