Service manual
- 18 -
8. Installation details
8.1 Wrench torque sheet for installation
Torque
mm inch Kg.m
φ6.35 1/4 1.8
φ9.53 3/8 4.2
φ12.7 1/2 5.5
Outside diameter
8.2 Connecting the cables
The power cord of connect should be selected according to the following specifications sheet.
Unit 9K 12K 18K
mm2 1.0 1.5 2.5

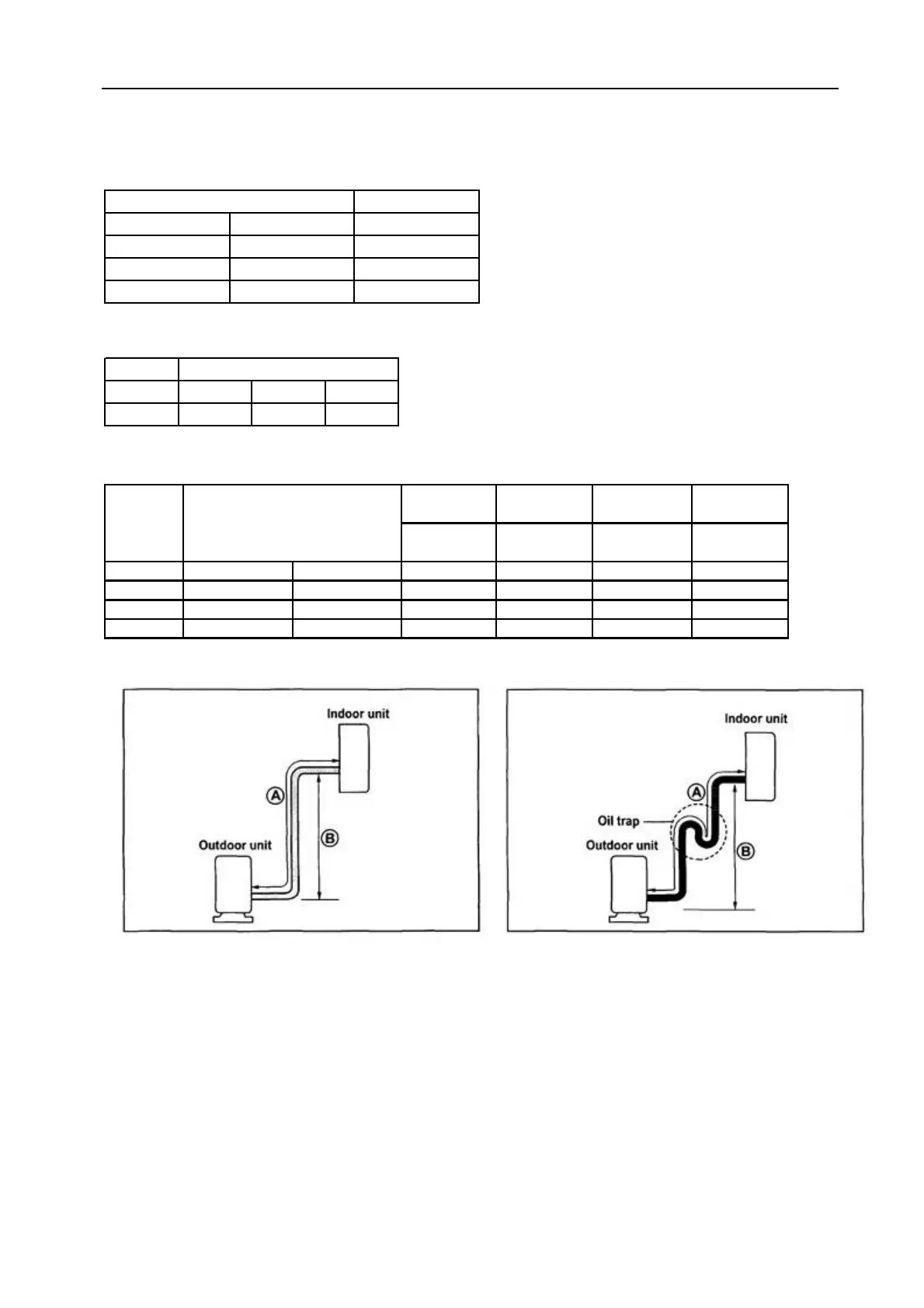

8.3 Pipe length and the elevation
Standard
length
Max. Max. Additional
(m) Elevation Elevation refrigerant
Btu/h GAS LIQUID B (m)
(m) (g/m)
9K 3/8’’ (φ9.52) 1/4’’ (φ6.35) 5 5 10 30
12K 1/2’’ (φ12.7) 1/4’’ (φ6.35) 5 5 10 30
18K 1/2’’ (φ12.7) 1/4’’ (φ6.35) 5 8 15 30
Pipe sizeCapacity
Caution:
Capacity is base on standard length and maximum allowance length is base of reliability.
Oil trap should be install per 5-7 meters.
In case that
more than
