Midea MSG-09CR-QC3 - Dehumidifying Mode

Service manual
- 30 -

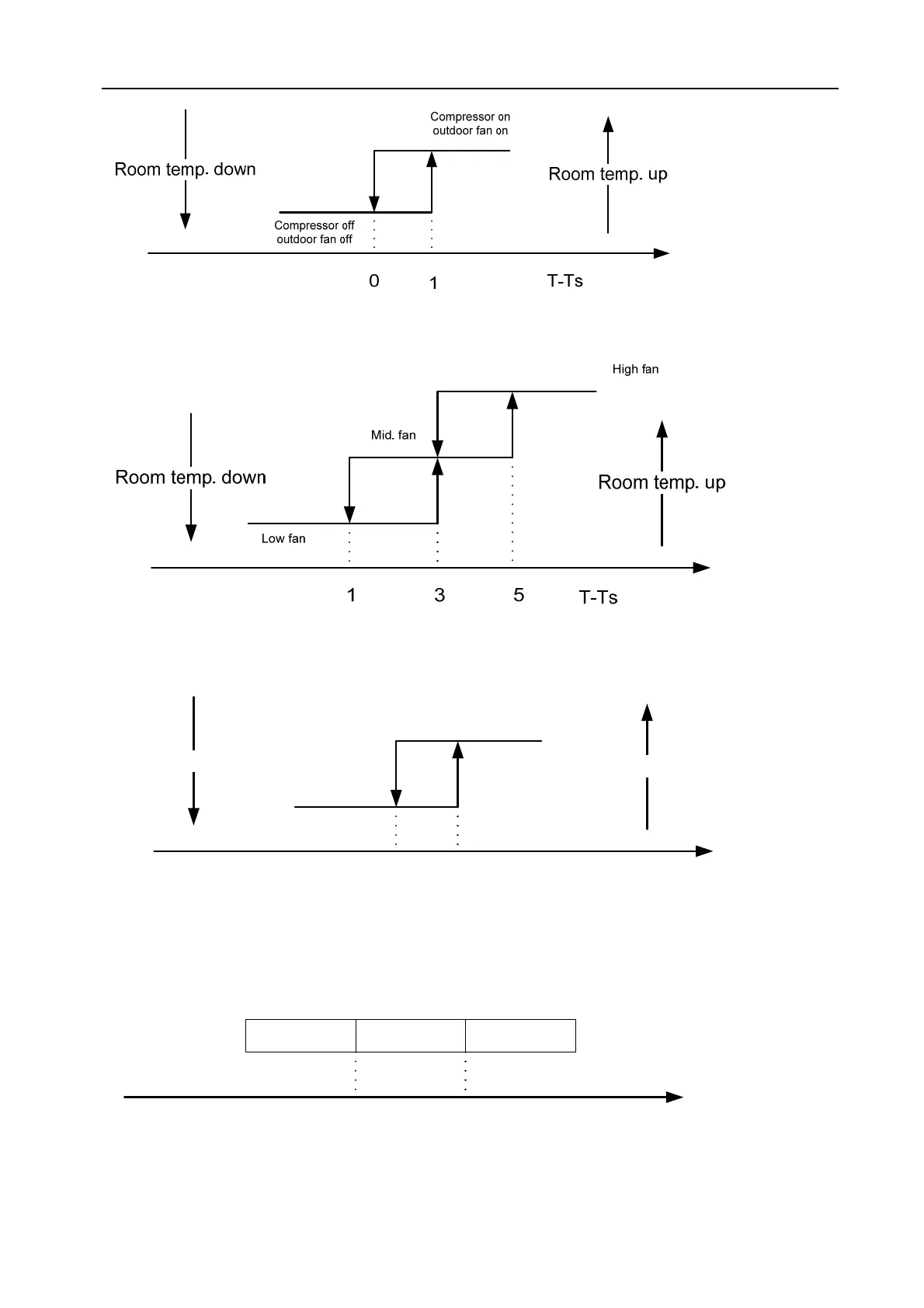

Auto fan at cooling mode:
Anti-freezing control to indoor evaporator at cooling mode ( T: evaporator temp. )
TE5 T
EVAP. temp. up
EVAP. temp. down
TE6
Compressor and
outdoor fan on
Compressor and outdoor
fan off (after 5 mins)
10.7 Dehumidifying mode
10.7.1 The 4-way valve is off in dehumidifying mode
10.7.2 Compressor and Indoor Fan actions in dehumidifying mode
0 TA-TS2
C B A
