Maintenance and
Disassembly
Page 57

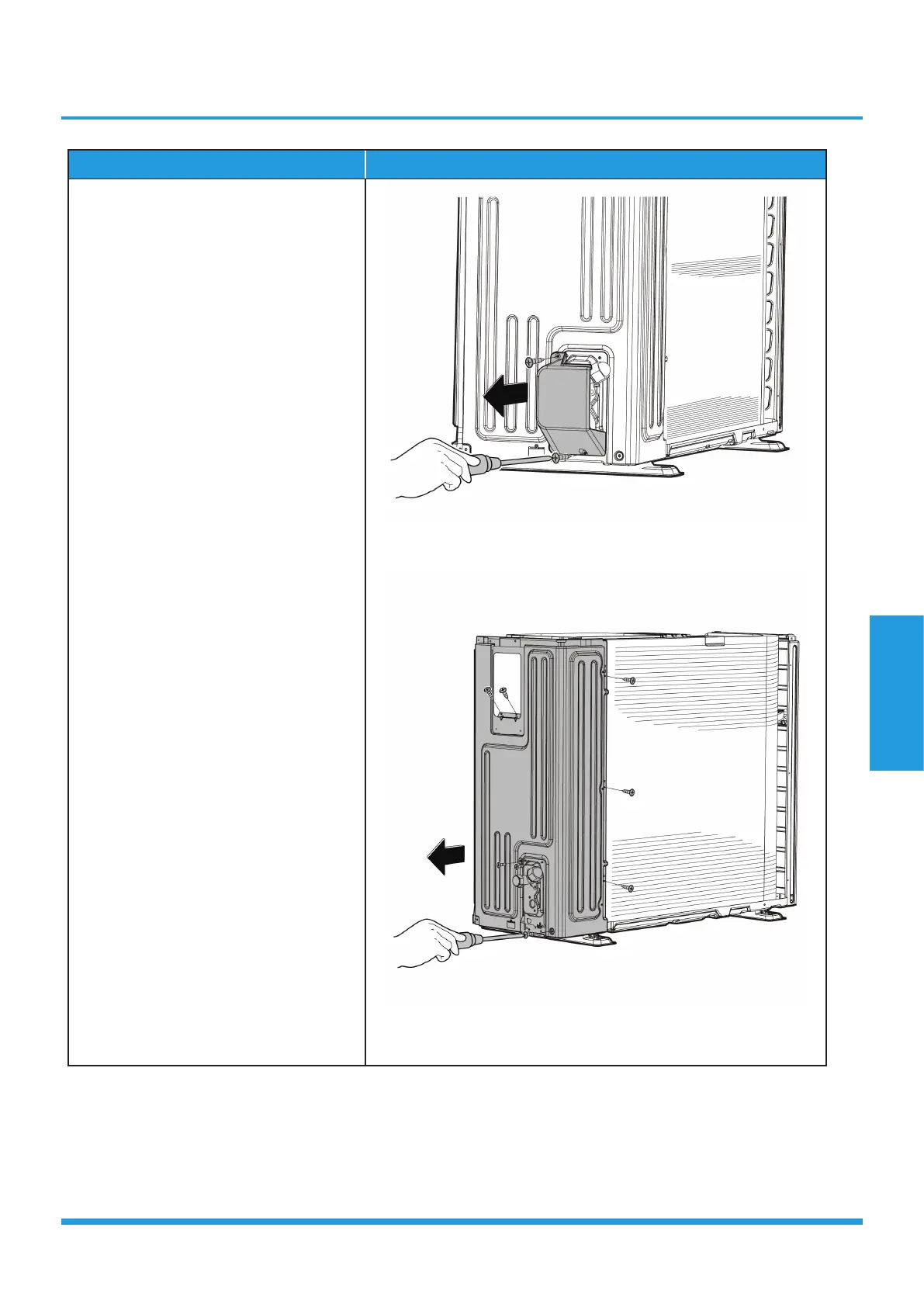

Procedure Illustration
1) Remove the screws of water collecting
cover and then remove the water
collecting cover (2 screw) (see CJ_
D01_INV_005).
2) Remove the screws of the right panel
and then remove the right panel
(8 screws) (see CJ_D01_INV_006).
CJ_D01_INV_005
CJ_D01_INV_006
Note: This section is for reference only. Actual unit appearance may vary.
