Maintenance and
Disassembly
Page 60
MOB01-09HFN1-MW0W, MOB01-12HFN1-MV0W, MOCA01-18HFN1-MT0W

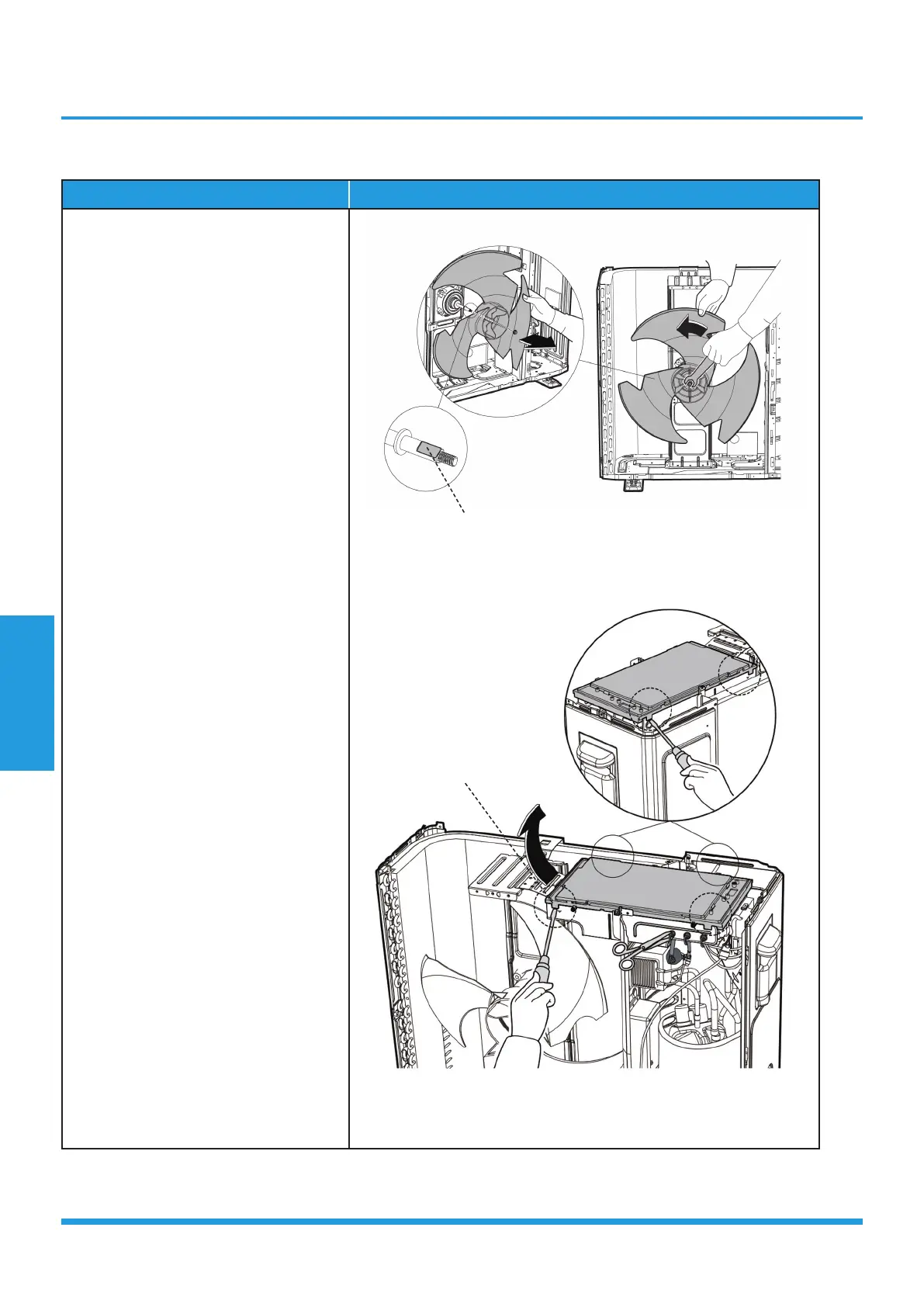

Procedure Illustration
1) Remove the nut securing the fan
with a spanner (see CJ_ODU_
INV_006).
2) Remove the fan.
3) Unfix the hooks and then open the
electronic control box cover (4 hooks)
(see CJ_ODU_INV_007).
CJ_ODU_INV_006
CJ_ODU_INV_007
Note: This section is for reference only. Actual unit appearance may vary.
Hook
D-cut
To Next Page
