Procedure Illustration
4) Disconnect the connector for fan motor
from the electronic control board (see
CJ_ODU_INV_008).
5) Remove the fixing screws of the fan motor
(4 screws) (see CJ_ODU_INV_009).
6) Remove the fan motor.

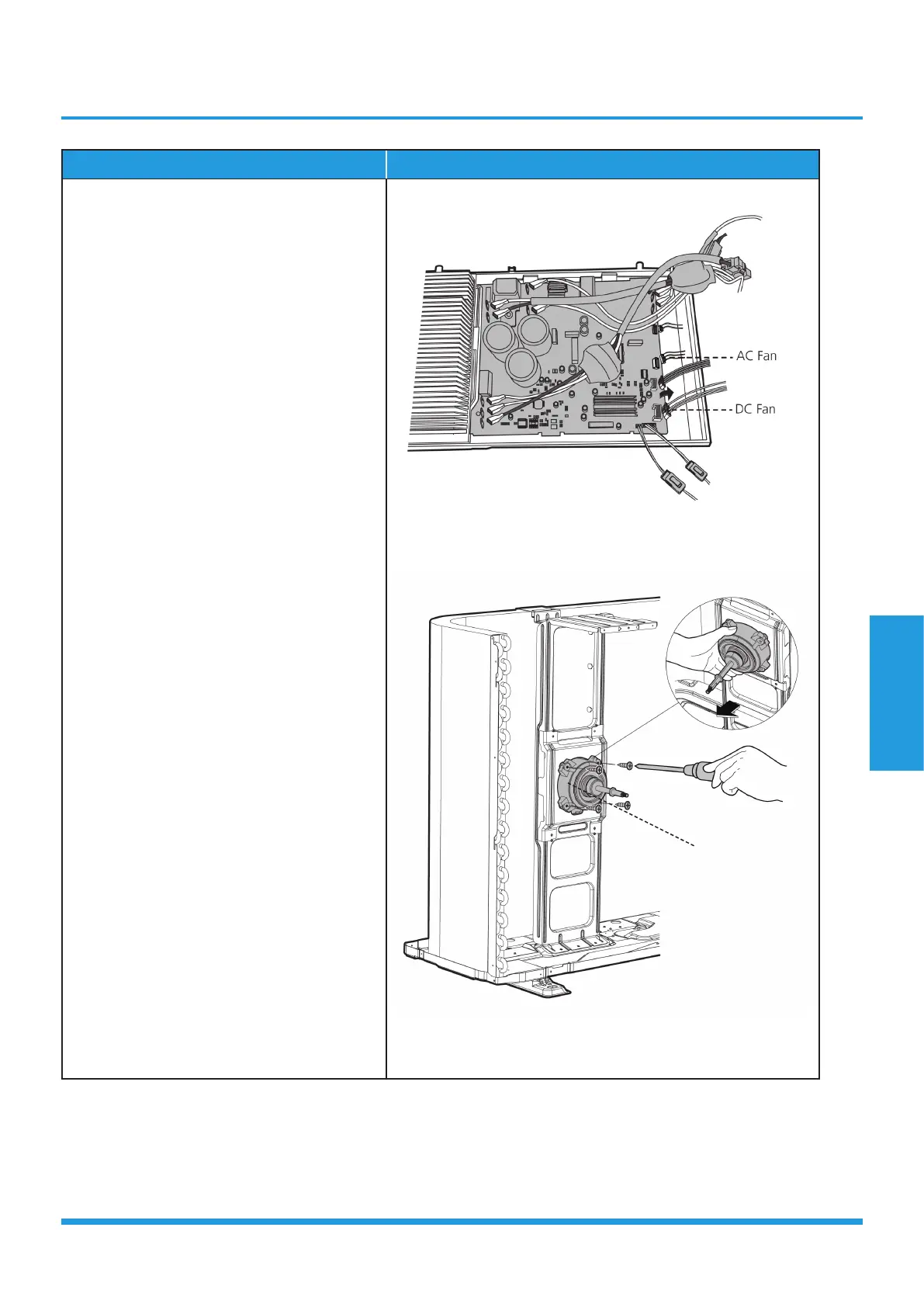

CJ_ODU_INV_008
CJ_ODU_INV_009
Note: This section is for reference only. Actual unit appearance may vary.
Fan Motor
