Midea MV6-i730WV2GN1-E User Manual

V6-i VRF 50/60Hz
10
Midea V6-i Series Service Manual
1 Layout of Functional Components
8/10/12HP

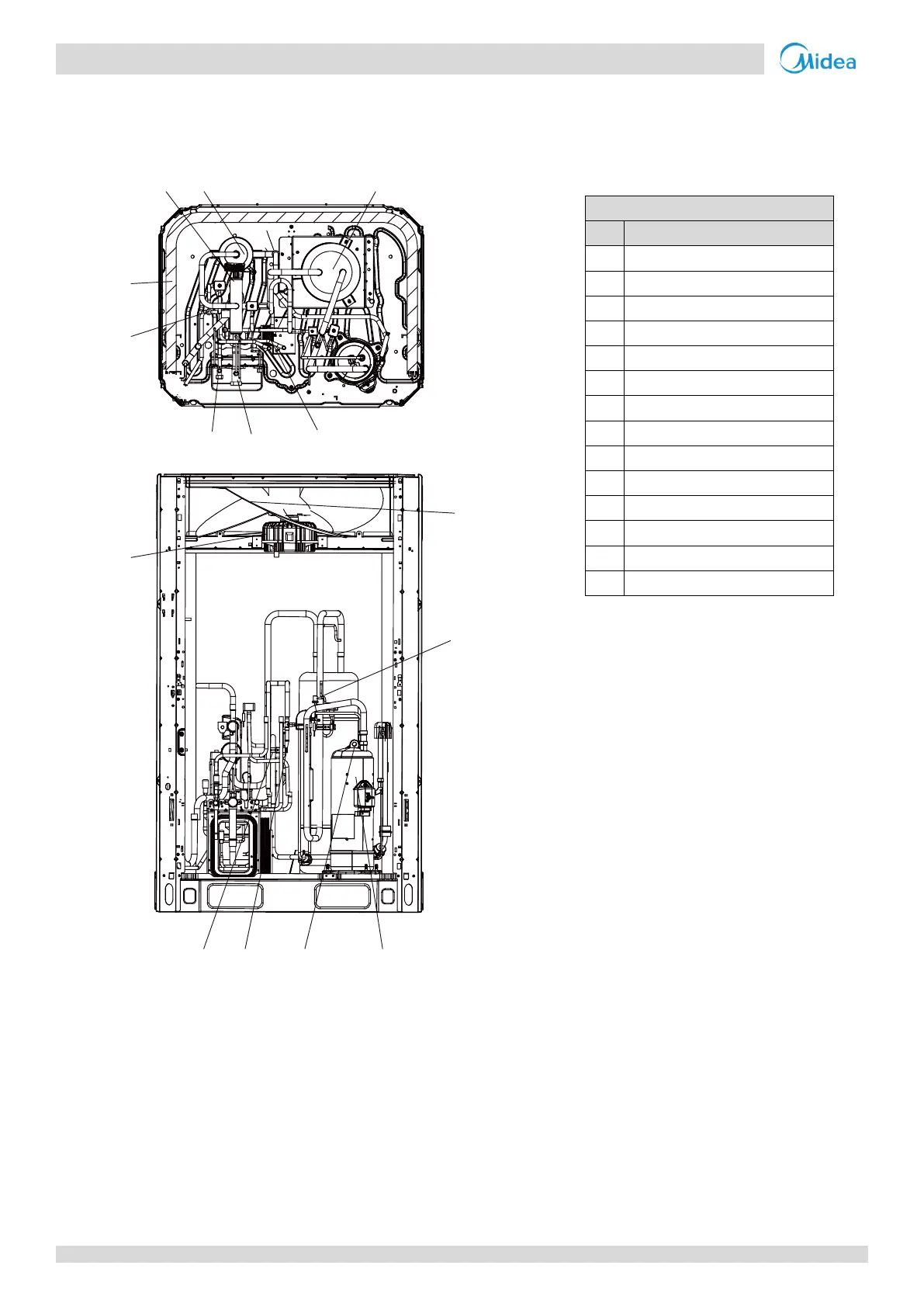

Figure 2-1.1: 8/10/12 layout of functional components
Legend
No.
Parts name
1
Compressor
2
Discharge temperature switch
3
High pressure switch
4
High pressure sensor
5
Oil separator
6
Four-way valve
7
Heat exchanger
8
Electronic expansion valve (EXV)
9
Low pressure switch
10
Fan motor
11
Fan
12
Stop valve (liquid side)
13
Stop valve (gas side)
14
Plate heat exchanger
15
56
7
8
12
13
14
11
9
10
3
4 2
1
