Midea MV6-i730WV2GN1-E

To Next Page

To Previous Page

V6-i VRF 50/60Hz

Midea V6-i Series Service Manual

1 Outdoor Unit Electric Control Box Layout

8-18HP

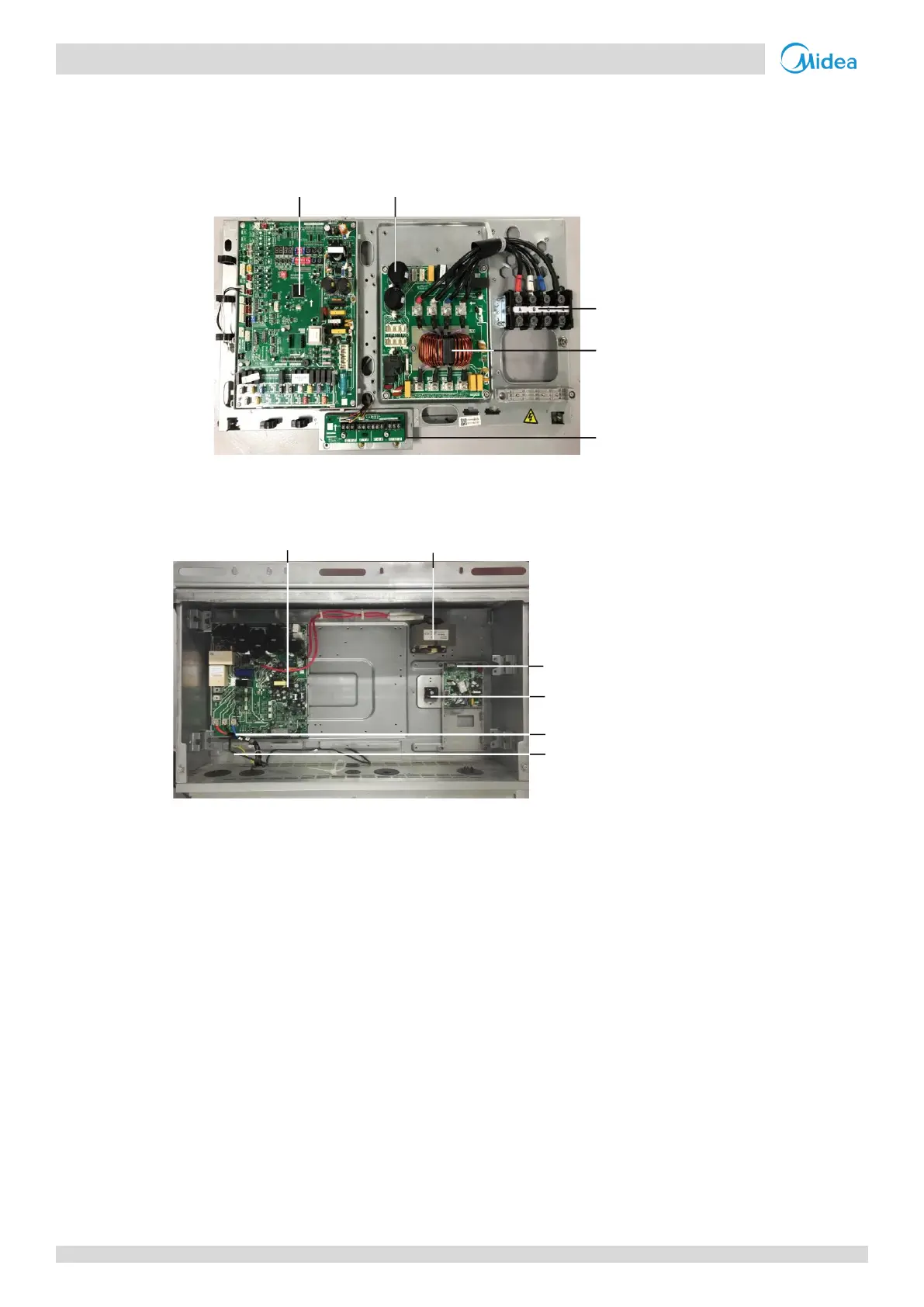

Figure 5-1.1: 8-18HP top layer of electric control box

Figure 5-1.2: 8-18HP bottom layer of electric control box

Power supply

terminals

Communication

terminals block

Inductor

Filter boardMain PCB

Inverter

module Reactor

Pipe temp. sensor

Compressor connection wire

Fan module

Bridge rectifier
