Midea MV6-i730WV2GN1-E

-i V6-i VRF 50/60Hz
13
Part 2
- Component Layout
and
Refrigerant Circuits
24HP

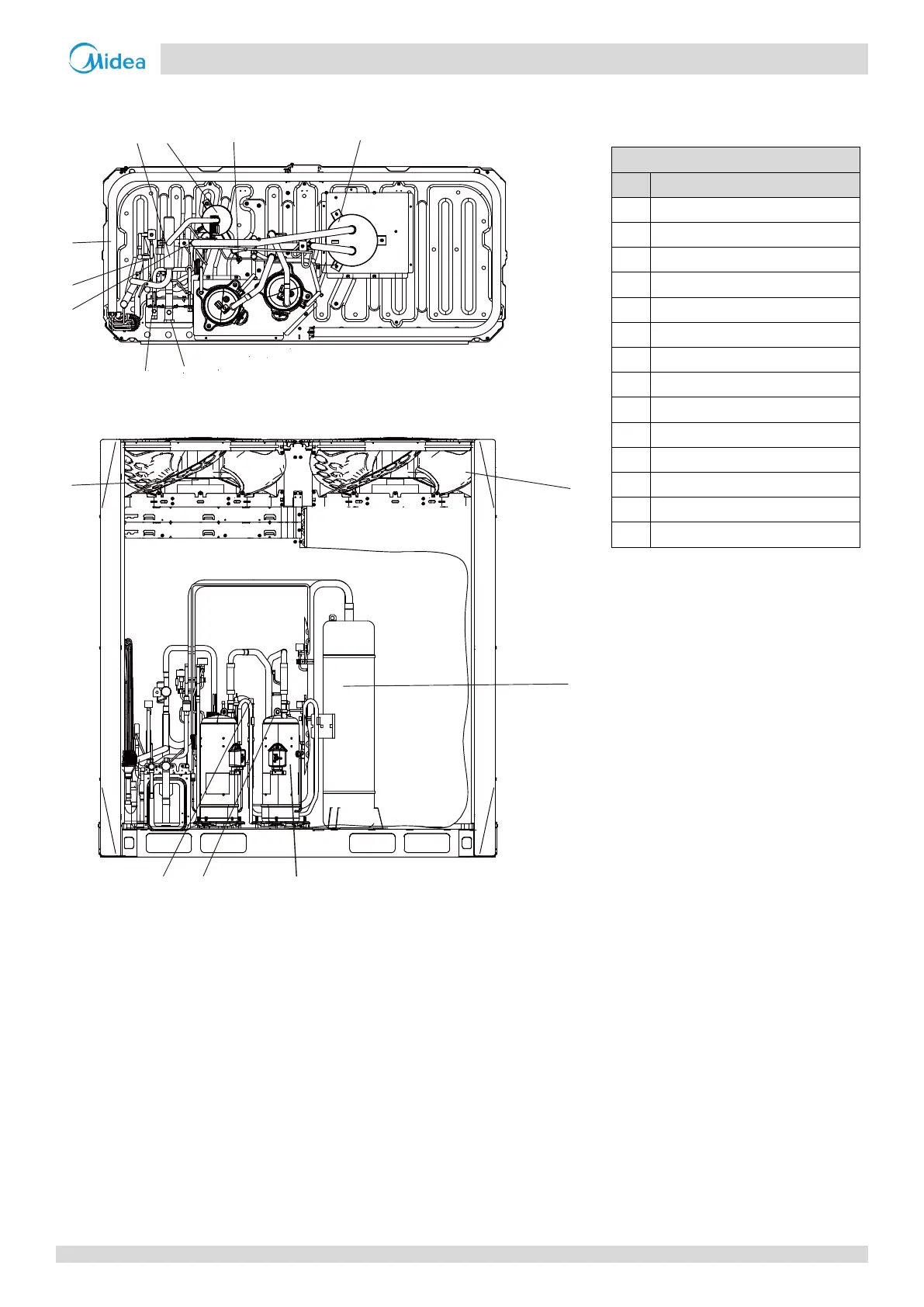

Figure 2-1.4: 24 layout of functional components
Legend
No.
Parts name
1
Compressor
2
Discharge temperature switch
3
High pressure switch
4
High pressure sensor
5
Oil separator
6
Four-way valve
7
Heat exchanger
8
Electronic expansion valve (EXV)
9
Low pressure switch
10
Fan motor
11
Fan
12
Stop valve (liquid side)
13
Stop valve (gas side)
15
Accumulator
15
5
4
6
7
8
9
12
13
11
9
10
3
2
1
