Page 12
Installation
Instructions
3

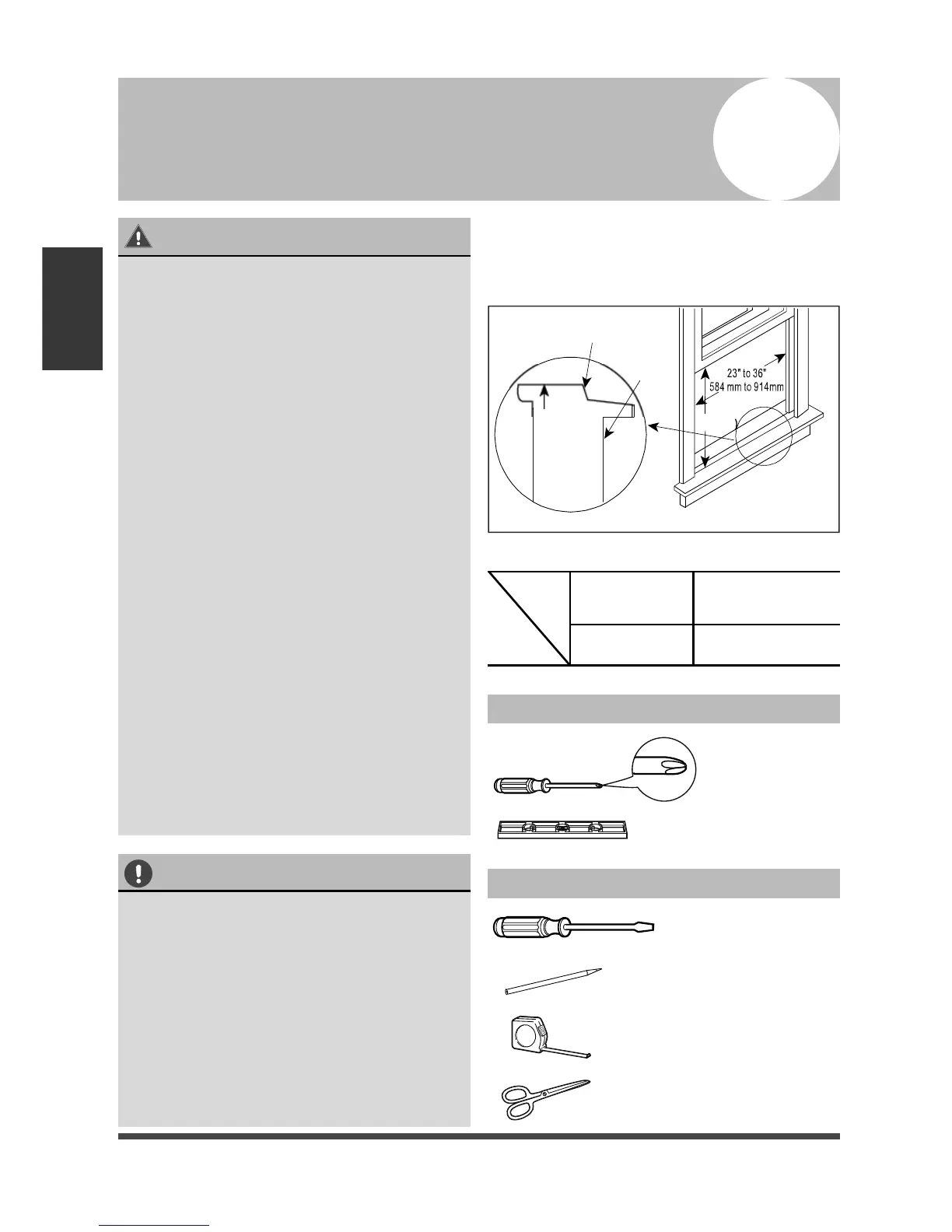

Installation Instructions
Your air conditioner is designed to install
in standard double hung windows with
opening widths of 23 to 36 inches (584mm
to 914mm).
Model 5000~8000
BTU/h
10000~12000
BTU/h
H 14” (356mm) 15-1/2” (394mm)
CAUTION
• Do not, under any circumstances, cut
or remove the third (ground) prong
from the power cord.
• Do not change the plug on the power
cord of the air conditioner.
• Aluminum house wiring may present
special problems - consult a qualified
electrician.
• When handling unit, be careful to
avoid cuts from sharp metal edges and
aluminum fins on front and rear coils.
Table 1
WARNING - Before You Begin
Read these instructions completely
and carefully.
• IMPORTANT - Save these instructions
for local inspector’s use.
• IMPORTANT - Observe all governing
codes and ordianaces.
• Note to Installer - Be sure to leave
these instructions with the consumer.
• Note to Consumer - Keep these
instructions for futrue reference.
• Skill level - Installation of this appliance
requires basic mechanical skills.
• Completion time - Approximately
1 hour. We recommend that two
people install this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper
installation is not covered under the
Warranty.
You MUST use all supplied parts and
use proper installation procedures as
described in these instructions when
installing this air conditioner.
H
Wooden Windows
INTERIOR
WALL
OFFSET
WINDOW
SILL
INNER
EXTERIOR
WALL
Fig. D
Tool You Will Need
Tool You May Use
Screwdriver
Level
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
To Next Page
