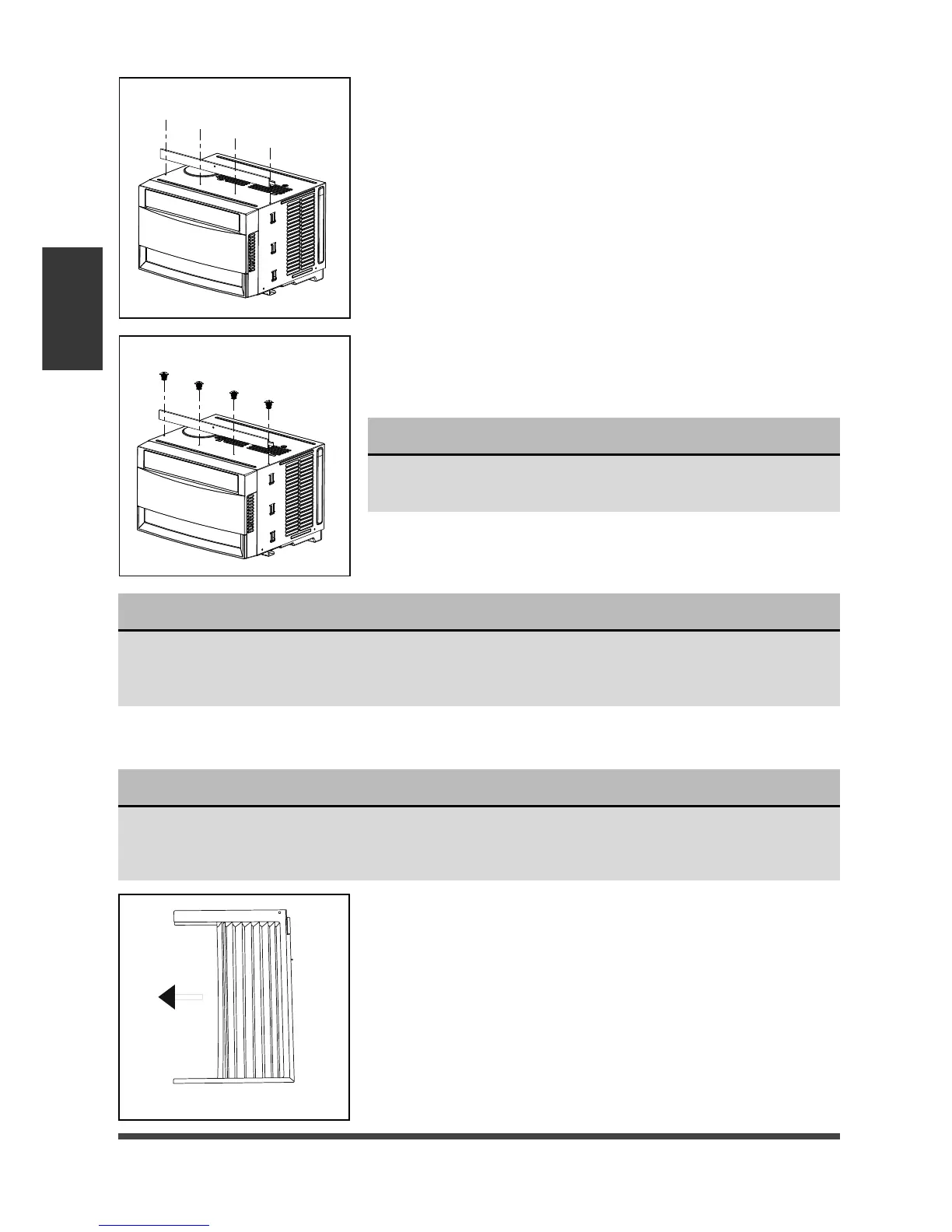

Installation
Instructions
NOTE
For safety reasons, all four (4) screws MUST be
securely fastened.
C. Align the hole in the top rail with those in the top of
the unit as shown in Fig. B.
Fig.B
Fig.C
D. Secure the top rail to the unit with the 3/8” Screws as
shown in Fig. C.
NOTE
The top rail hardware and the Fig. A, Fig. B and Fig. C are not applicable to the units
more than 10000 Btu/h. Before installing unit, the top rail must be assembled on the
unit (For < 10000 Btu/h models only).
NOTE
Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear
of (5/16”). This is necessary for proper condensed water utilization and drainage. If you
are not using the Side Panels for any reason, this pitch to the rear must be maintained.
Fig. 1
3. INSTALL THE ACCORDION PANELS
A. Place unit on floor, a bench or a table. Hold the
Accordion Panel in one hand and gently pull back
the center to free the open end. See Fig. 1.
