NOTE
Check that air conditioner is tilted back
about H (Fig. 5) (tilted about 3° to 4°
downward to the outside). After propor
installation, condensate should not drain
from the overflow drain hole during
normal use, correct the slope otherside.
Top Rail
Bottom Rail

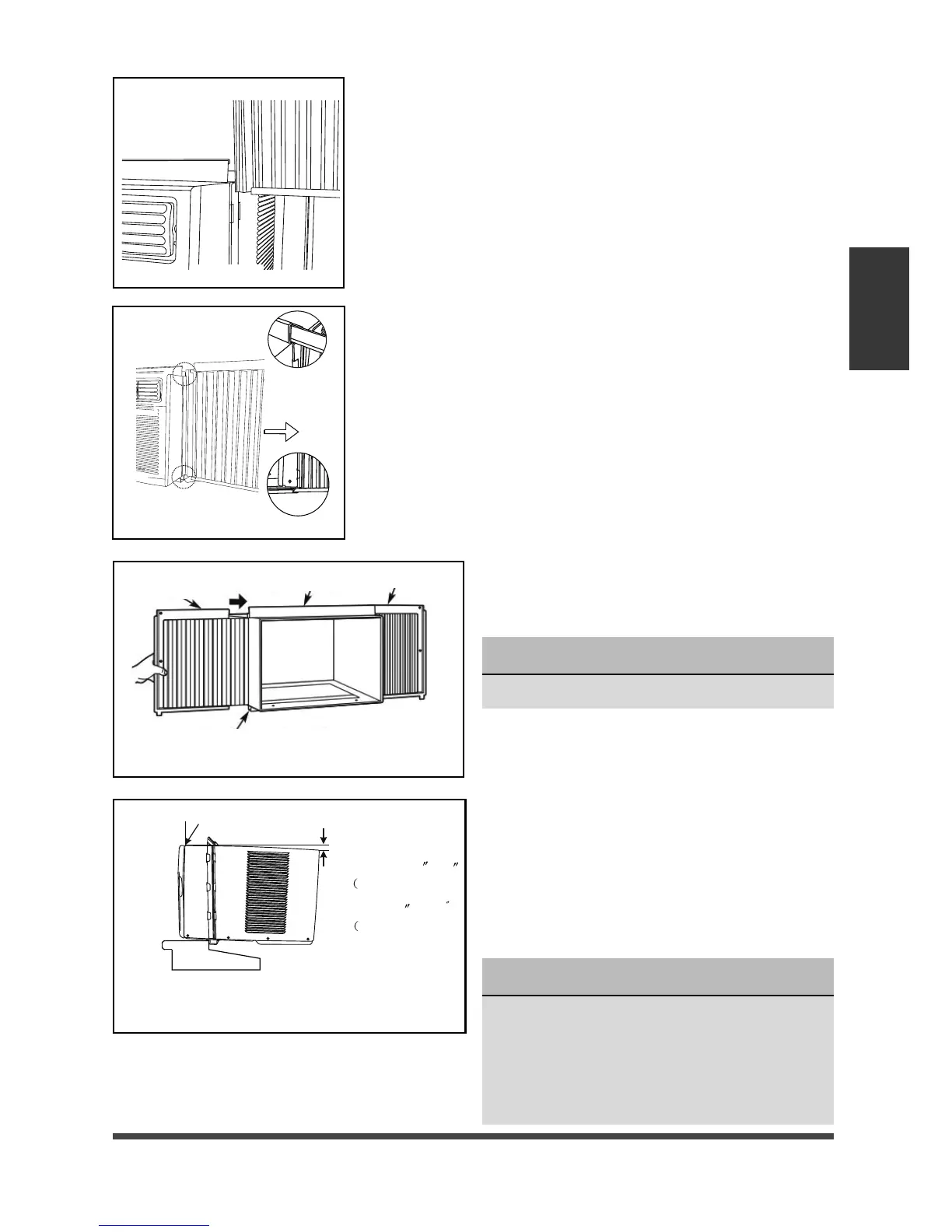

Fig. 3
Fig. 3
Fi g. 4
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4 to 1
for 5K to 8K)
Measure from the cabinet edge
3
H:About 1 to 1
/
for 10K to 12K)
8
H
Fig. 5
Installation
Instructions
“I” section
Fig. 2
B. Slide the free end “
I
“ section of the panel directly
into the cabinet as shown in Fig. 2. Slide the panel
down. Be sure to leave enough space to slip the
top and bottom of the frame into the rails on the
cabinet.
C. Once the panel has been installed on the side of the
cabinet, make sure it sits securely inside the frame
channel by making slight adjustments.
Slide the top and bottom ends of the frame into the
top and bottom rails of the cabinet. Fig. 3.
Top Rail
Bottom Rail
Top left
Top right
Fig. 4
NOTE
If storm window blocks AC, see Fig. 11.
4. SECURE THE ACCORDION PANELS
A. Keep a firm grip on the air conditioner,
carefully place the unit into the
window opening so the bottom of the
air conditioner frame is against the
window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
D. Slide the panel all the way in and
repeat on the other side.
