Midea MWB10CW71 User Manual

 Page 16 
window
frame
Fig. 5
Fig. 6
Fig.6
Fig. 7
NOTE
To prevent window sill from splitting, drill 1/8” (3mm)
pilot holes before driving screws.
Fig. 8
Fig. 8
Fig. 9
Fig. 9
FOAM SEAL
Fig. 10

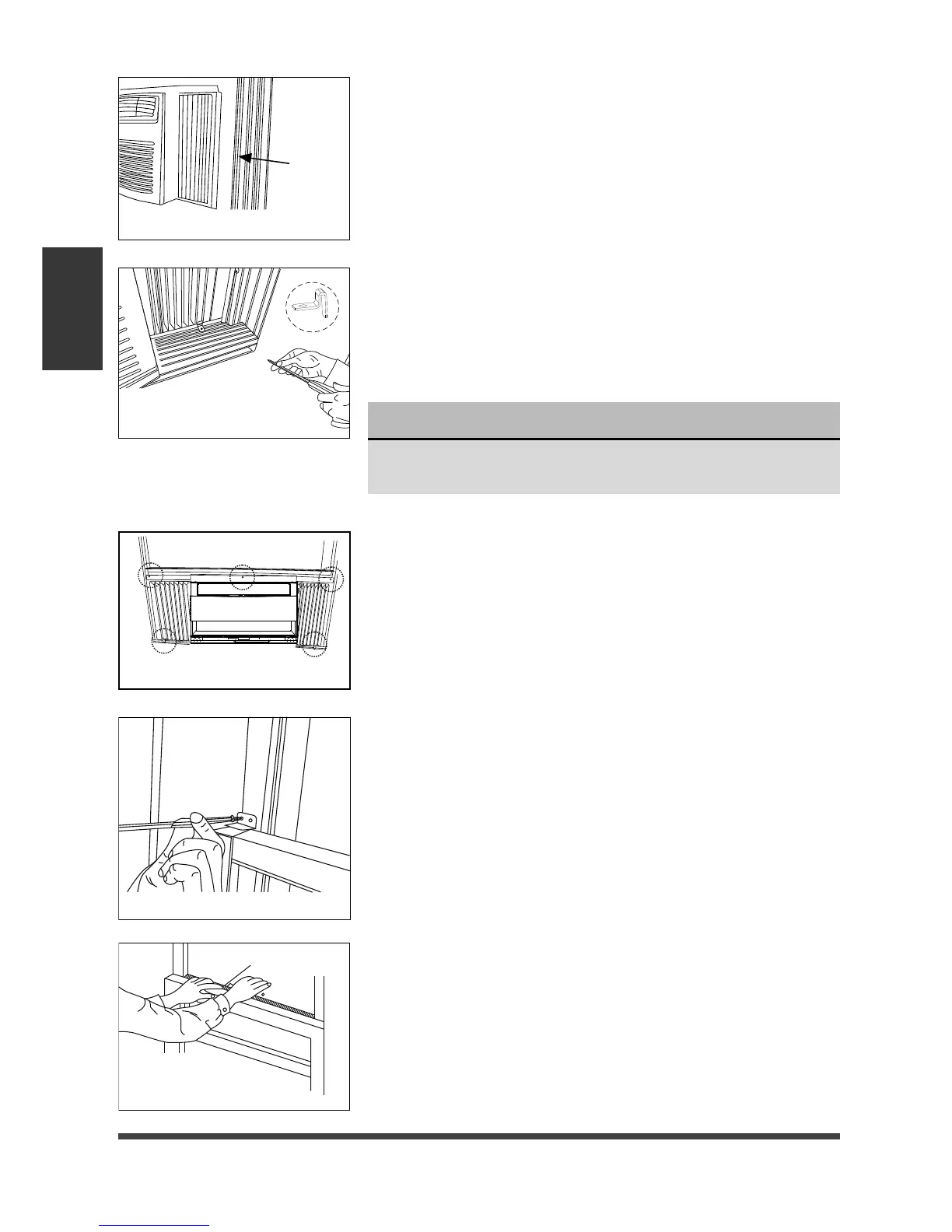

5. INSTALL SUPPORT BRACKET
A. Place the frame lock between the frame extensions
and the window sill as shown (Fig. 7).
Drive 3/4” (19mm) or 1/2” (12.7mm) locking screws
through the frame lock and into the sill.
B. Drive 3/4” (19mm) or 1/2” (12.7mm) locking screws
through frame holes into window sash (Fig. 8).
C. To secure lower sash in place, attach right angle sash
lock with 3/4” (19mm) or 1/2” (12.7mm) screw as
shown (Fig. 9).
D. Cut Window sash seal foam and insert it in the space
between the upper and lower sashes (Fig. 10).
B. Extend the side panels out against the window
frame (Fig. 6).
Installation
Instructions
