INSTALLATION INSTRUCTION
1. Check the capacity of power circuit
2. Power cord installation
3. Water heater installation
4. Plumbing connection
5. Power supply connection
6. Water Supply

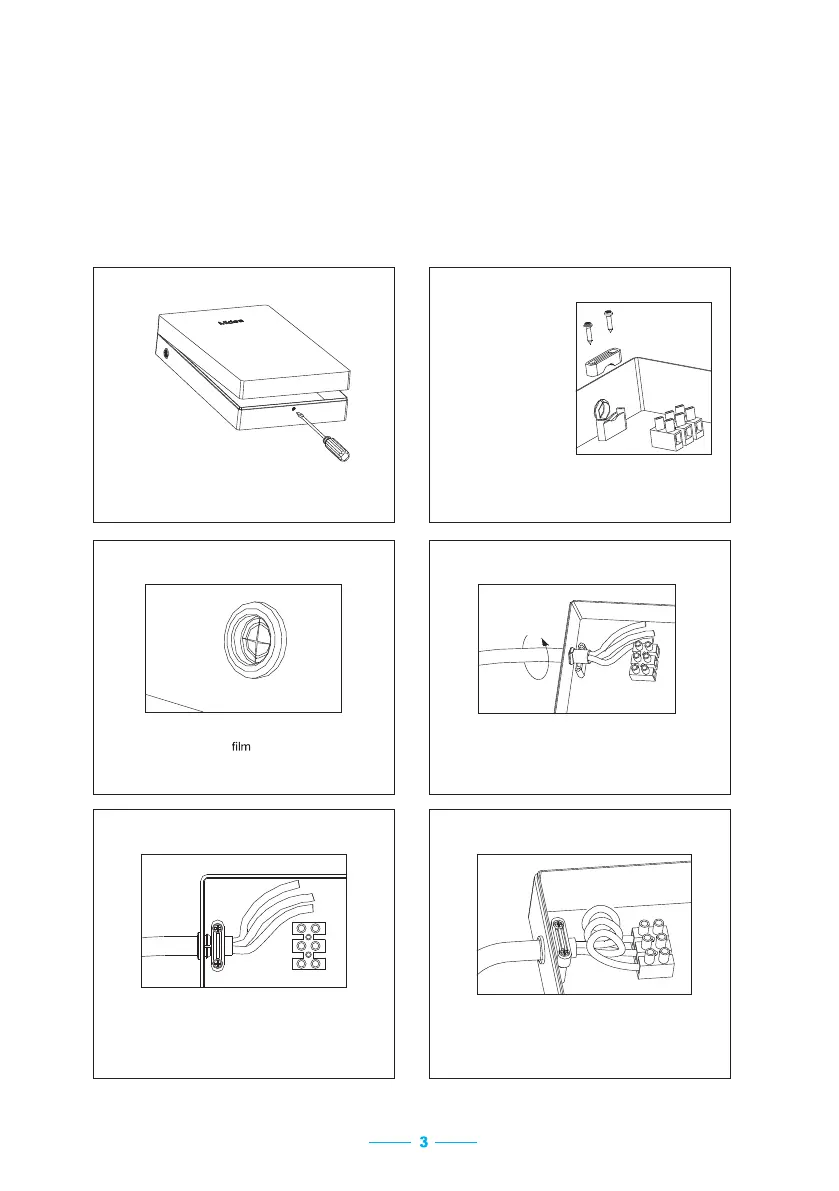

2. POWER CORD INSTALLATION:
Step 1
Remove the screws at the bottom of the unit.
Lift up the Main Switch Knob and Power Knob
to make it free. Remove the front plate gently.
Step 3
Gash the middle of the of the power cord jacket
with a sharp knife in order to put into power lines.
Step 5
Tighten the wire-pressing plate with screws to
primary position, ensure that the power cord not be
pulled out more than 60N.
Step 2
Remove the power cord wire pressing plate and
keep the screws.
Step 4
Screw the power cord into the jacket for installation
of wire pressing plate.
Step 6
Connect the power cord to wiring terminals; the
method is as shown in picture.
Note: the installation position of neutral line (blue), live
line (brown/red) and earth line (green/yellow) should be
corresponding to the other end on wiring terminals.
