18
Installation
Instructions

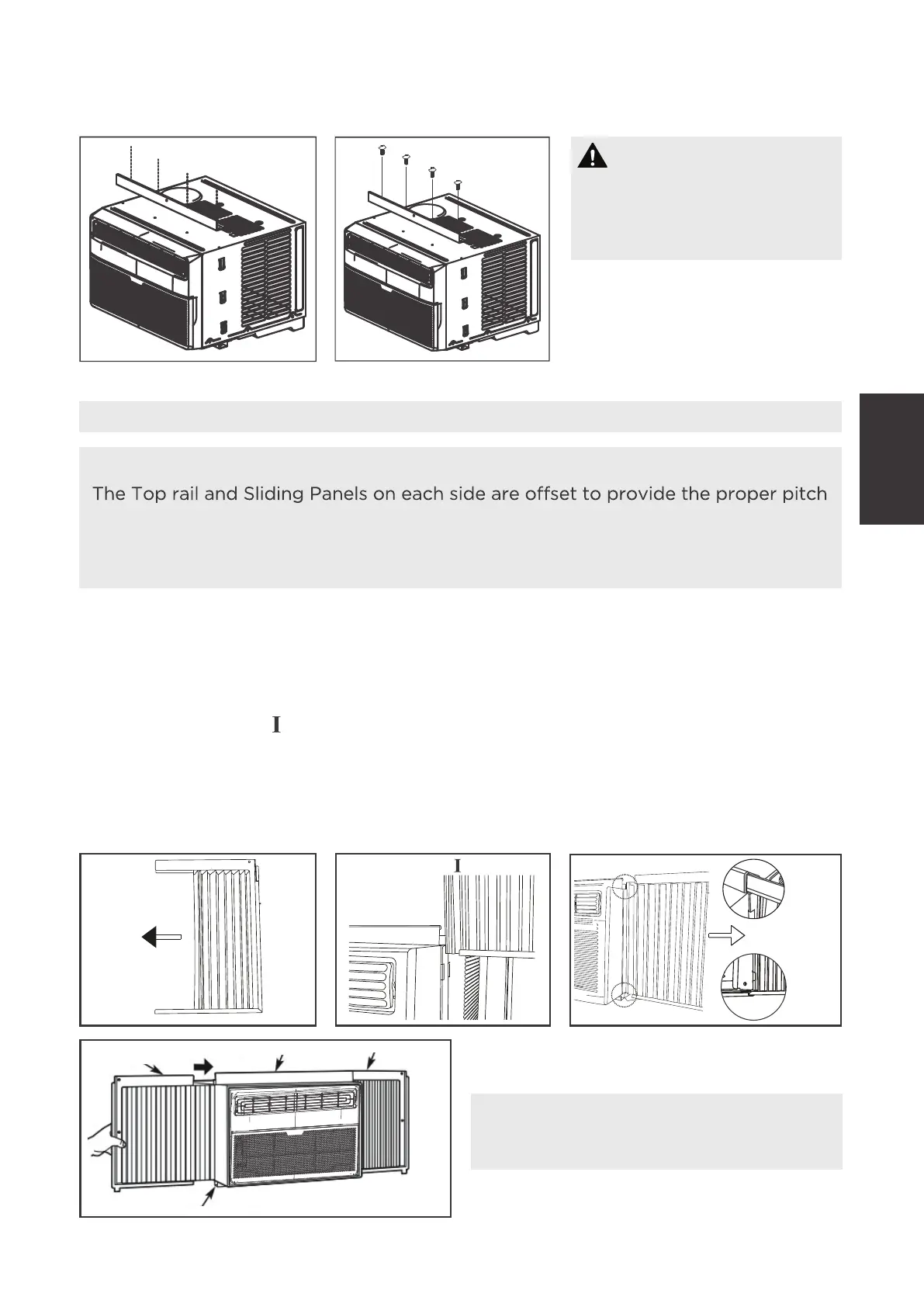

C. Align the hole in the top rail with those in the top of the unit as shown in Fig. E.
D. Secure the top rail to the unit with the 3/8” Screws as shown in Fig. F.
Place unit on the floor, a bench or a table. There is a left and right side accordion panel;
be sure to use the proper panel for each side. When installed, the flange for securing
the panel in place to the window sill will be facing into the room.
A. Hold the side panel in one hand and gently pull back the center to free the open end.
See Fig. 1.
B. Slide the free end “
“ section of the panel directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave enough space to slip the top and bottom of
the frame into the rails on the cabinet.
C. Once the panel has been installed on the side of the cabinet, make sure it sits securely
inside the frame channel by making slight adjustments. Slide the top and bottom ends
of the frame into the top and bottom rails of the cabinet. Fig. 3.
3. Install Accordion Panels on Air Conditioner
NOTICE
to the rear of the unit 5/16” (8mm). This is necessary for proper condensate
management and drainage.
If you are not using the Side Panels for any reason, this pitch to the rear must be
maintained.
For safety reasons, all four
(4) screws MUST be securely
fastened.
WARNING
D. Slide the panel all the way in and repeat
on the other side.
NOTICE
If storm window blocks AC, see Fig. 11.
“ “ section
Top Rail
Bottom Rail
Top Rail
Bottom Rail
Top left
Top right
Fig. E
Fig. 1 Fig. 2
Fig. 4
Fig. 3
Fig. F
