Installation
Instructions
B2: For Vinyl-Clad windows:
Drive 1/2” (12.7 mm) locking screws through the
top rail and into the window sash (Fig. 8B).
NOTE: Before driving the screws, drill 5 holes into
the window through the holes of the top rail and
side panel frames as shown (Fig. 8B).
C. Secure lower sash in place by attaching the sash
lock with the 3/4” (19 mm) or 1/2” (12.7 mm) screw
as shown (Fig. 9).
D. Cut Window sash seal foam and insert it in the
space between the upper and lower sashes (Fig. 10).
If AC is Blocked by Storm Window
SASH
1-1/2"min
(38 mm)
Board thickness
as required, for
proper pitch to
rear, along entire
sill. Fasten with
nails or screws.
Storm window
frame or other
obstruction.
Add wood as shown in Fig. 12, or remove
storm window before air conditioner is
installed.
If storm window frame must remain,
be sure the drain holes or slots are not
caulked or painted shut. Accumulated
rain water or condensation must be
allowed to drain out.
Removing AC From Window
• isconnect power cord.
• Remove sash seal from between windows, and unscrew sash lock.
• Remove screws installed through top rail and side panel frames.
• Close (slide) the side panels into the rails.
• Keeping a firm grip on the air conditioner, raise the sash and carefully remove.
• Be careful not to spill any condensate while lifting unit from window. Store parts
WITH air conditioner.
FOAM SEAL

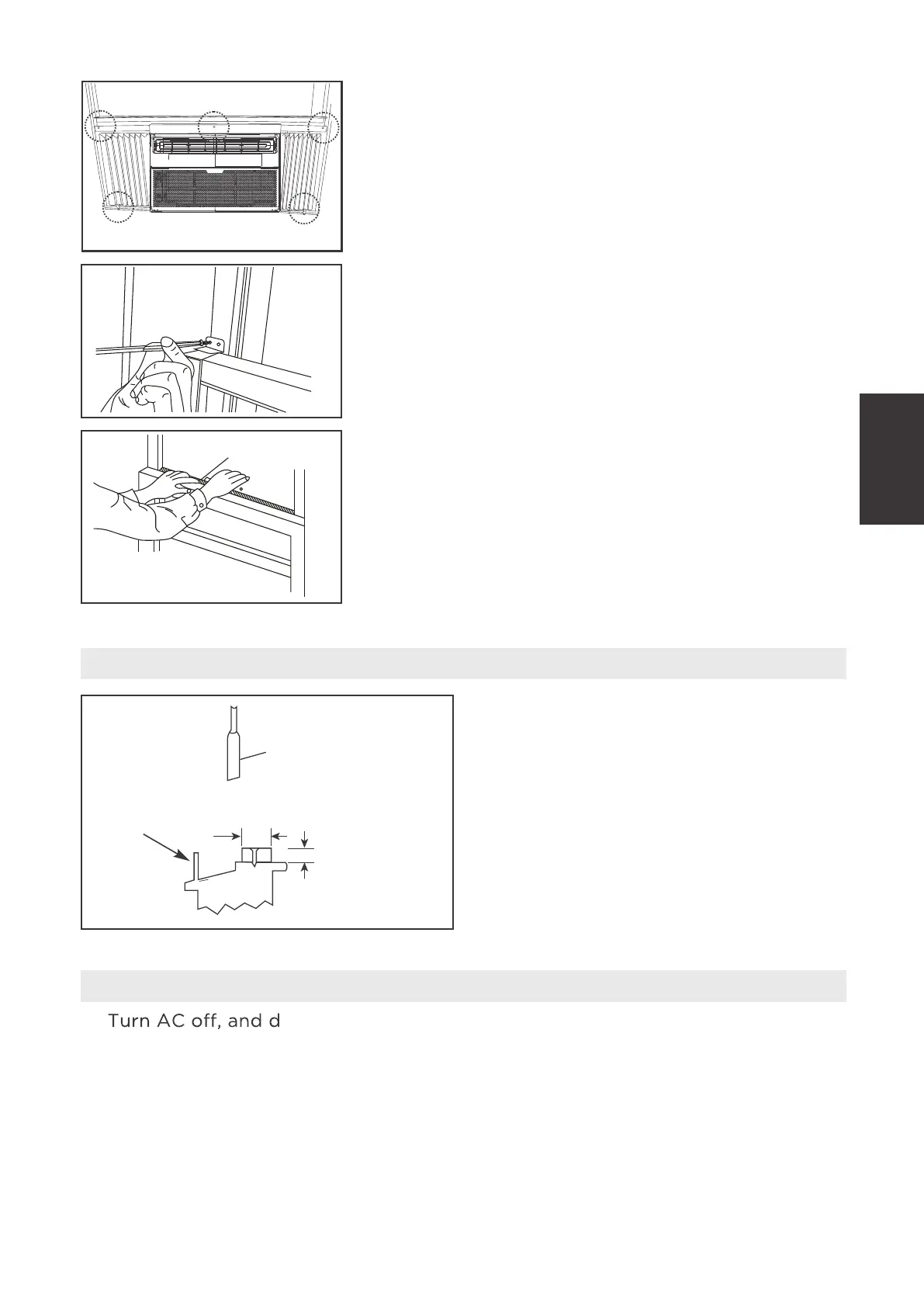

Fig. 8B
