MCAC-RTSM-2013-12 Midea High-temperature Direct-heating Heat Pump Water Heater Technical Manual
29

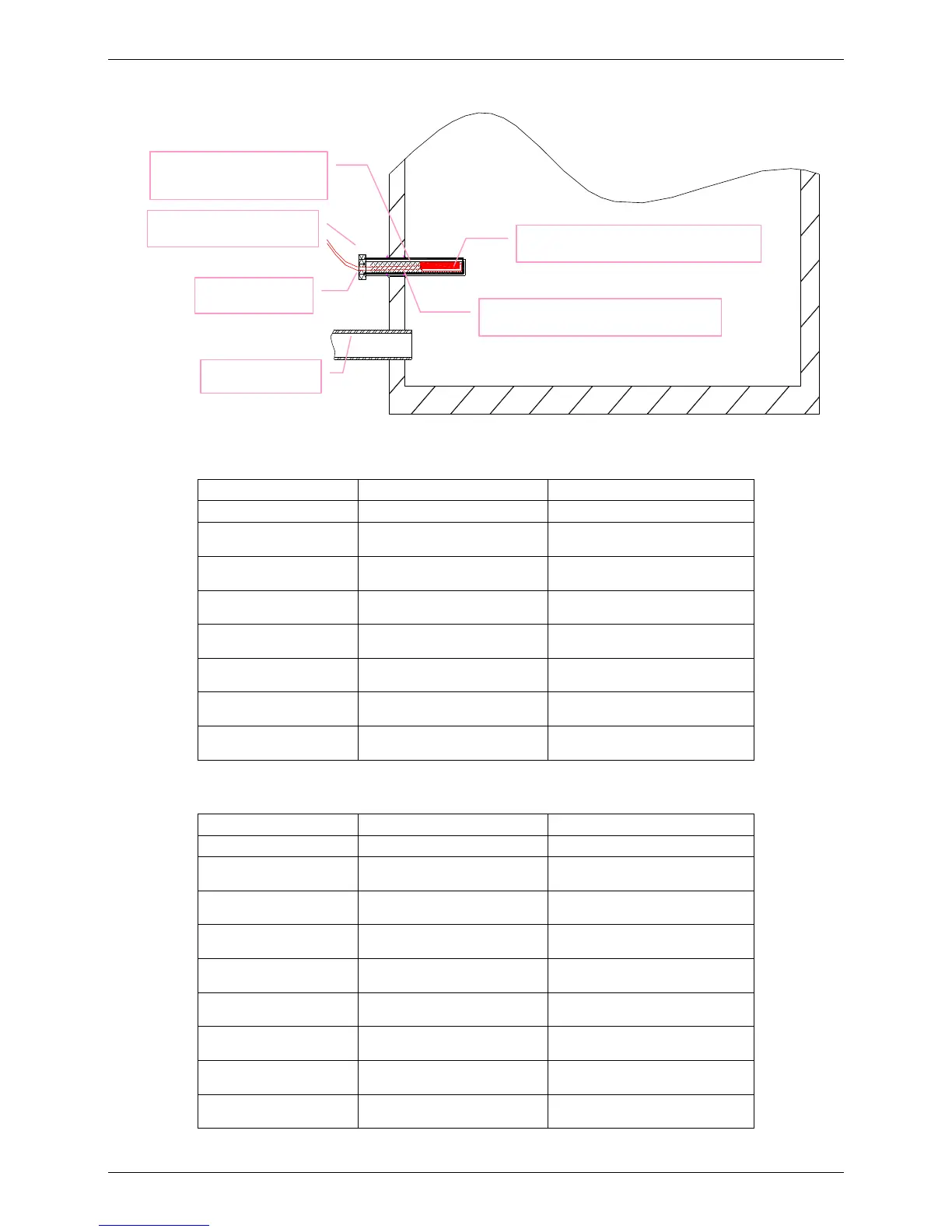

7.4.2 Installation of the Temp. Sensor
Water Pipe Selection 7.5
RSJ-380/SN1-820-D
Unit number
Main water inlet pipeline
Main water outlet pipeline
1 set
DN25
DN25
2 sets parallel
connection
DN50
DN50
3 sets parallel
connection
DN65
DN65
4~5 sets parallel
connection
DN80
DN80
6~8 sets parallel
connection
DN100
DN100
9~12 sets parallel
connection
DN125
DN125
13~14 sets parallel
connection
DN125
DN125
15~16 sets parallel
connection
DN150
DN150
RSJ-200/SN1-540V-D
Unit number
Main water inlet pipeline
Main water outlet pipeline
1 set
DN25
DN25
2 sets parallel
connection
DN32
DN32
3 sets parallel
connection
DN50
DN50
4~5 sets parallel
connection
DN50
DN50
6~7 sets parallel
connection
DN65
DN65
8 sets parallel
connection
DN65
DN65
9~12 sets parallel
connection
DN65
DN65
13~14 sets parallel
connection
DN80
DN80
15~16 sets parallel
connection
DN80
DN80
8 blind copper pipe or
stainless steel pipe
Water tank temperature sensor
Heat conduction silica gel filling
Port airproof
water outlet
Connect 0# main unit
