MCAC-RTSM-2013-12 Midea High-temperature Direct-heating Heat Pump Water Heater Technical Manual
36
3. Wired Controller and Operation
Technical data and characteristic
1. Input voltage 10V AC
2. Operation ambient temperature of wired controller: -10℃~43℃
3. Operation relative humidity of wired controller: 40%~90%
4. Touch key operation and LED displays operation parameters
5. Multiple timer and real-time clock (battery life: 5~8 years).
14
13
3
1
2
4
16
11
15
5
6
7
8
9
10
11
12
(Press for 3sec to
cancel timer)
(Press for 3sec to
unlock)
AUXILIARY

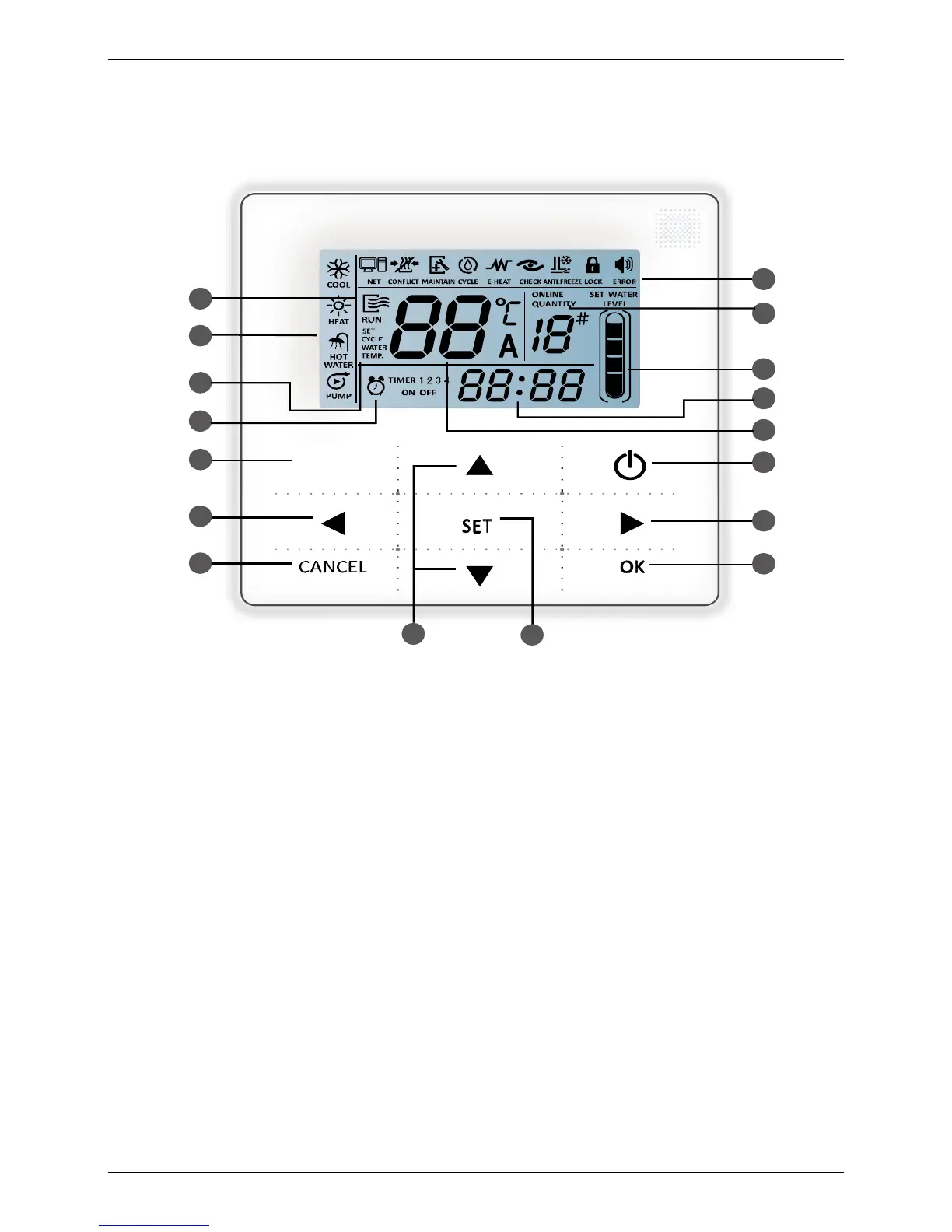

1. Operation icon
2. Mode area
3. Setting temperature
4. Timing on/off
5. Function icon
6. On-line units quantity indication
7. Water level indication
8. Clock
9. Water temperature
10. On/Off key
11. Left/Right key
12. Confirm key
13. Set key
14. Add and reduce key
15. Cancel key
16. Auxiliary key
