MCAC-HTSM-201906 Midea R410A Direct Heating Type HPWH 50Hz Technical Manual
46

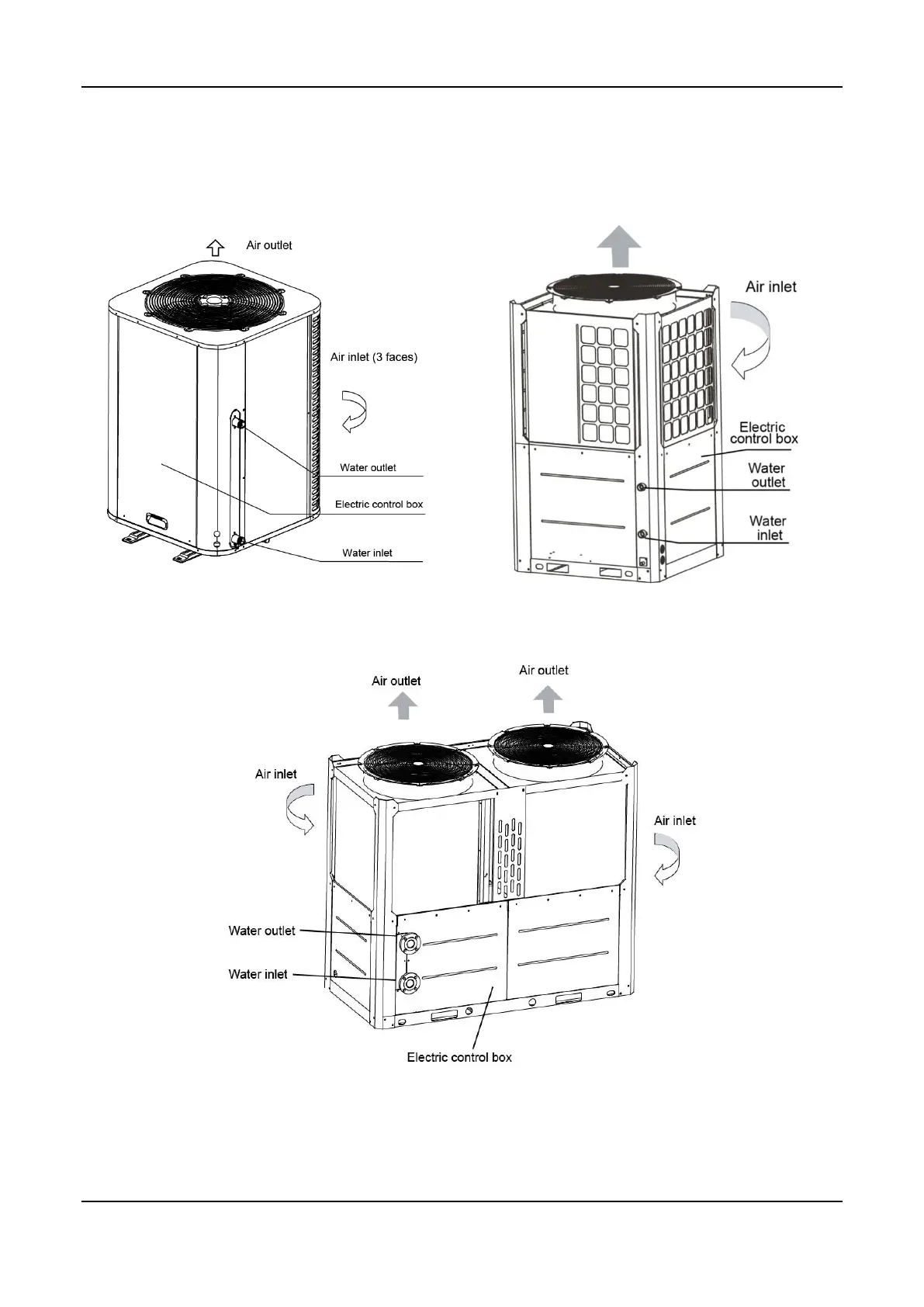

2.1 Unit outlook
Figure 3-2.1: Unit outlook for RSJ-120/ZN1-540V1,
RSJ-200/SZN1-540V1
Figure 3-2.2: Unit outlook for RSJ-420/SZN1-H
Figure 3-2.3: Unit outlook for RSJ-800/SZN1-H
Midea CAC Confidential
