2.7 Water tank installation
 The water tank temperature sensor (T5) can not be placed in the water or on the water pipe directly.
The water tank must be set a temperature pipe where the temperature sensor (T5) is installed.
 The water tank must have some safety devices to protect it such as temperature cut off switch, pressure
and temperature relief vale, etc.
 Make sure E-heater is covered with water all the time.

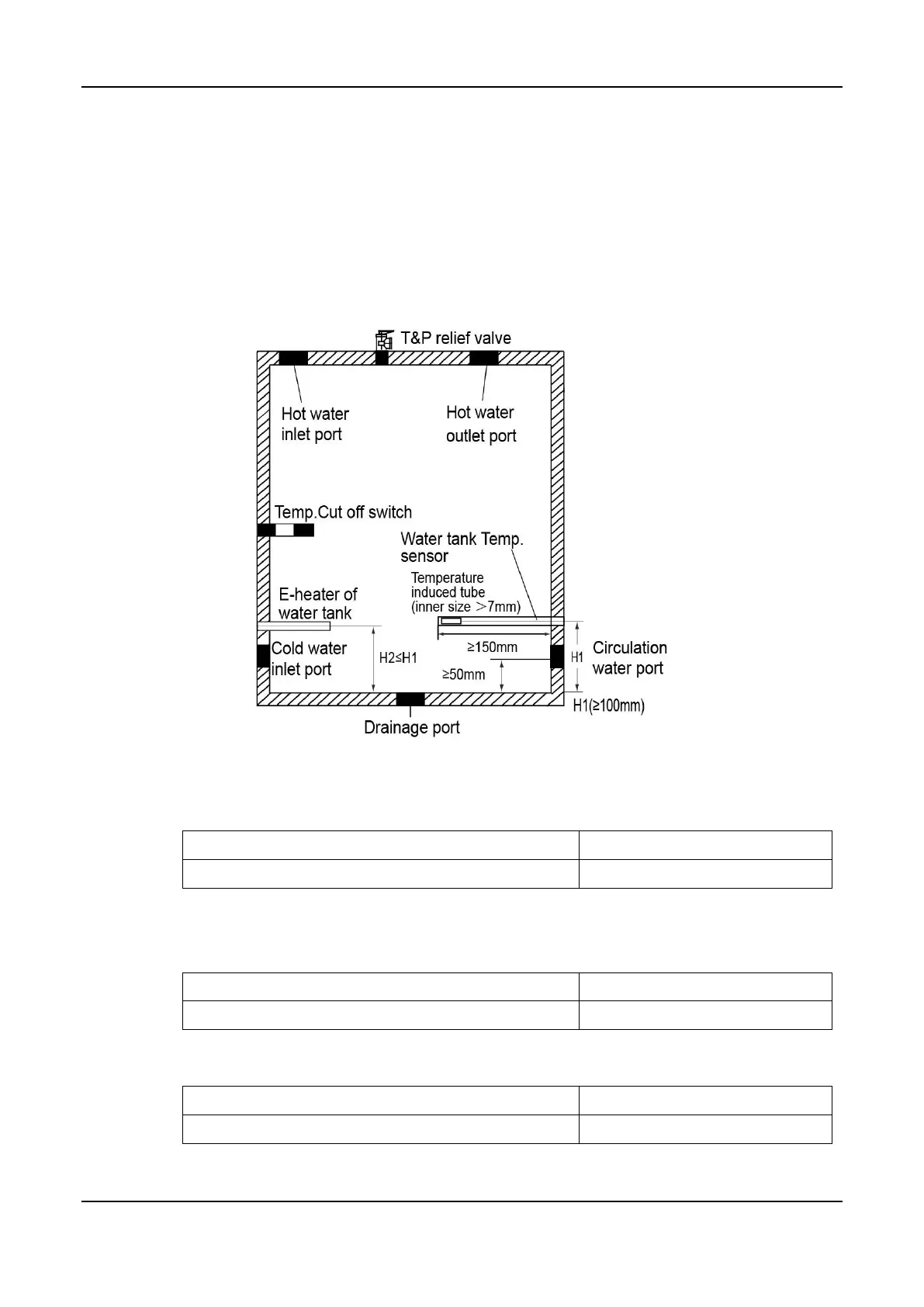

Figure 3-2.11: Water tank installation
 Water cycle pump selection:
RSJ-120/ZN1-H
Circulative heating rated water flow
2 m
3
/h
Water resistance of circulative rated water flow
160 kPa
RSJ-200/SZN1-H
Circulative heating rated water flow
3.5 m
3
/h
Water resistance of circulative rated water flow
160 kPa
RSJ-420/SZN1-H
Circulative heating rated water flow
7 m
3
/h
Water resistance of circulative rated water flow
160 kPa
