MCAC-HTSM-201906 Midea R410A Direct Heating Type HPWH 50Hz Technical Manual
90

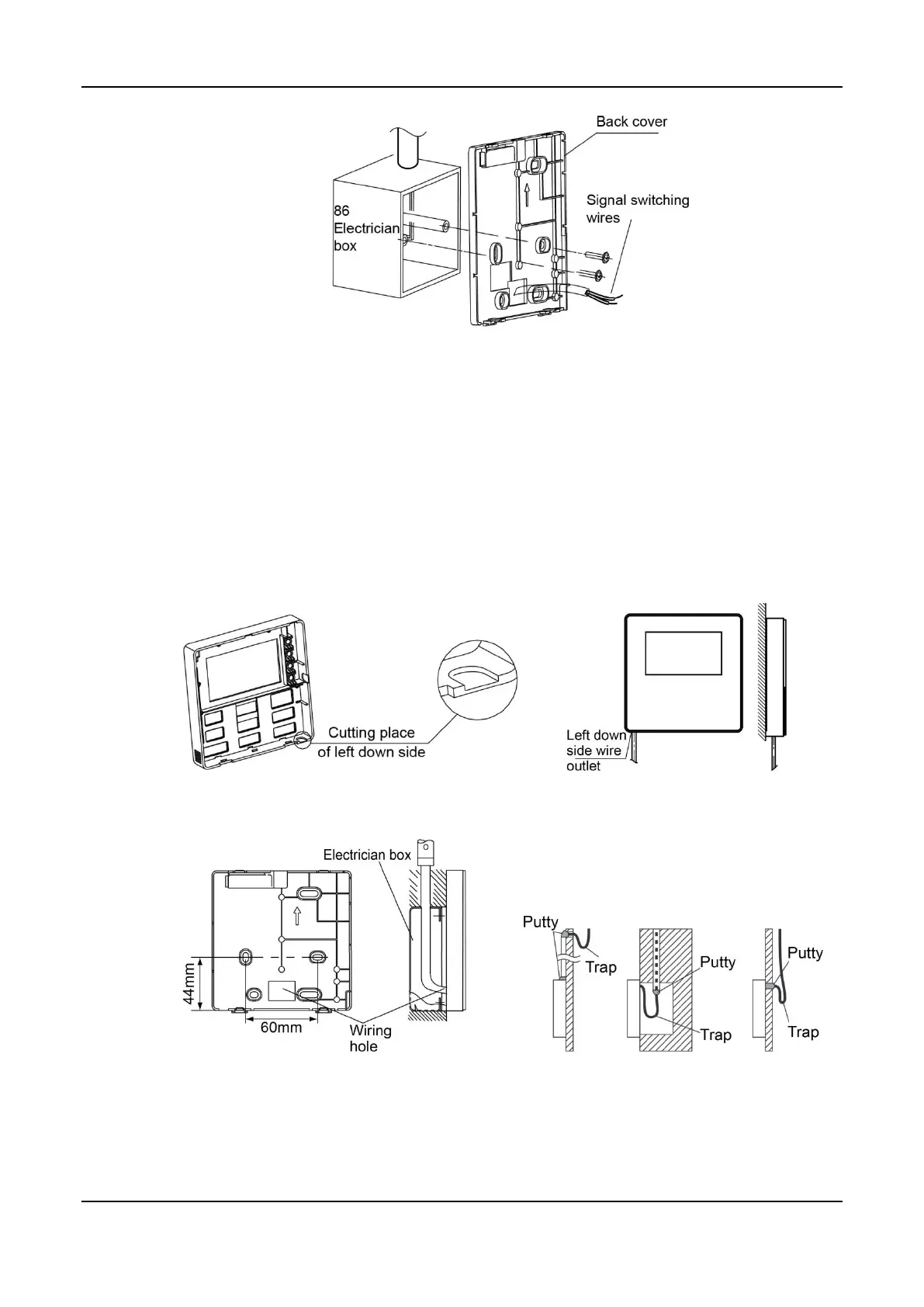

Use cross head screws to fix the wired controller bottom cover in the electric control box through the
screw bar. Make sure the wired controller bottom cover is on the same level after installation, and then
install the wired controller back to the bottom cover.
Over fasten the screw will lead to deformation of back cover.
4.6 Wire outlet
Avoid the water enter into the wired controller, use trap and putty to seal the connectors of wires during
wiring installation.
Method 1:
Method 2:
