MCAC-HTSM-201906 Midea R410A Direct Heating Type HPWH 50Hz Technical Manual
20

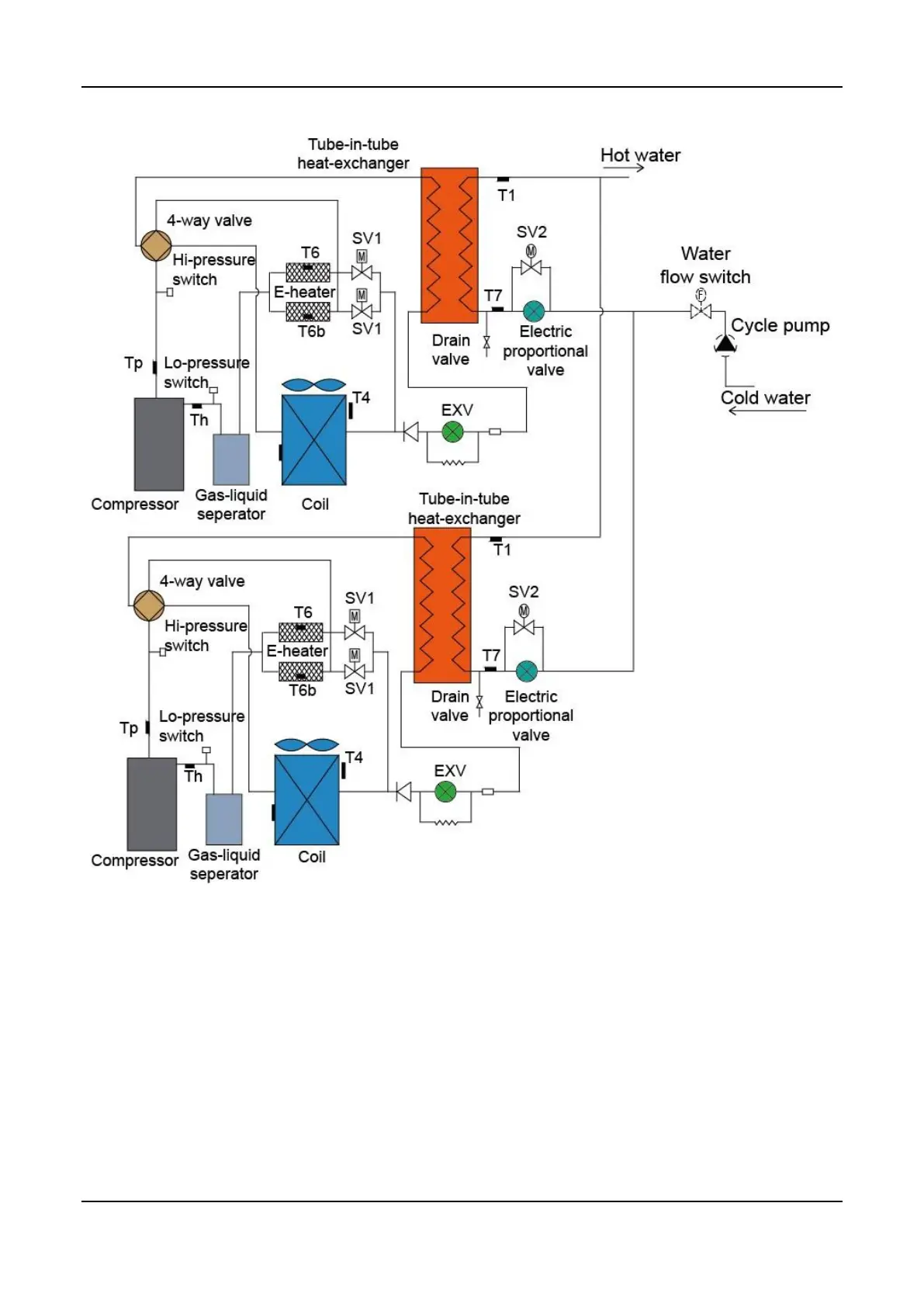

Figure 2-5.3: Refrigerant circuit of RSJ-800/SZN1-H
