Midea R410A Direct Heating Type HPWH 50Hz Technical Manual MCAC-HTSM-201906
47
2.2 Carrying of unit
Handling rope should at least can bear 3 times of the unit weight, and must go through the handling
holes shown in following pictures, and make sure there is enough strength to add a pad between the
rop and unit in order to protect the unit.
For RSJ-120/ZN1-540V1 and RSJ-200/SZN1-540V1, before Lifting, open the front and rear cover of the
lower unit and reset it after installation. The lifting angle of the rope should larger than 60°.
For RSJ-420/SZN1-H and RSJ-800/SZN1-H, the distance between the hood and air outlet meshes should
be more than 1 meter, and ensure that the hood has enough strength as well as reliability in handling
process. Unit gradient (α) should be less than 3°. Handle with care, do not collide and drag drastically.
Do not stand in handling operating radius.

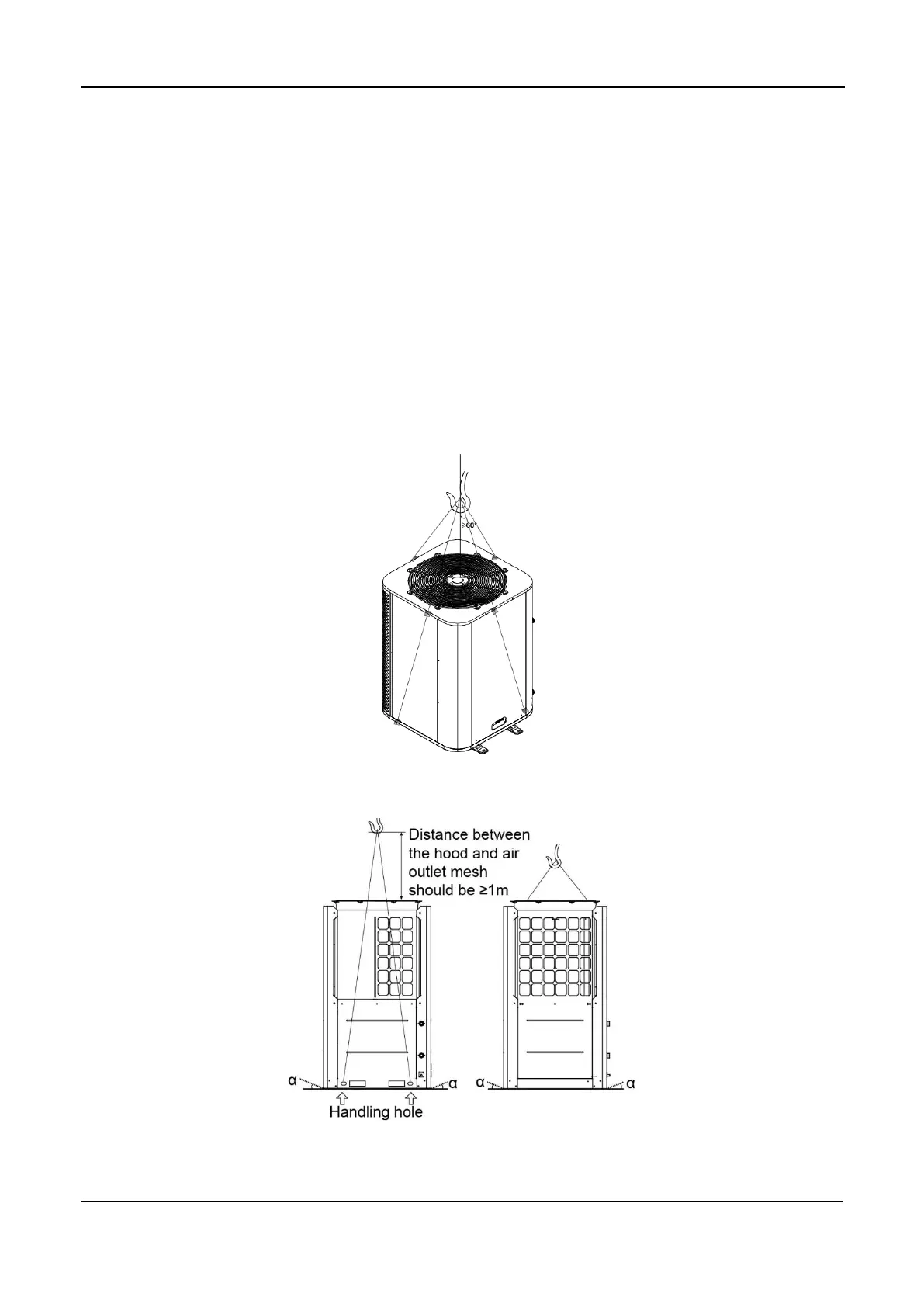

Figure 3-2.4: Lifting of RSJ-120/ZN1-540V1, RSJ-200/SZN1-540V1
Figure 3-2.5: Lifting of RSJ-420/SZN1-H
