Midea RSJ-200/SZN1-540V1

Midea R410A Direct Heating Type HPWH 50Hz Technical Manual MCAC-HTSM-201906
59

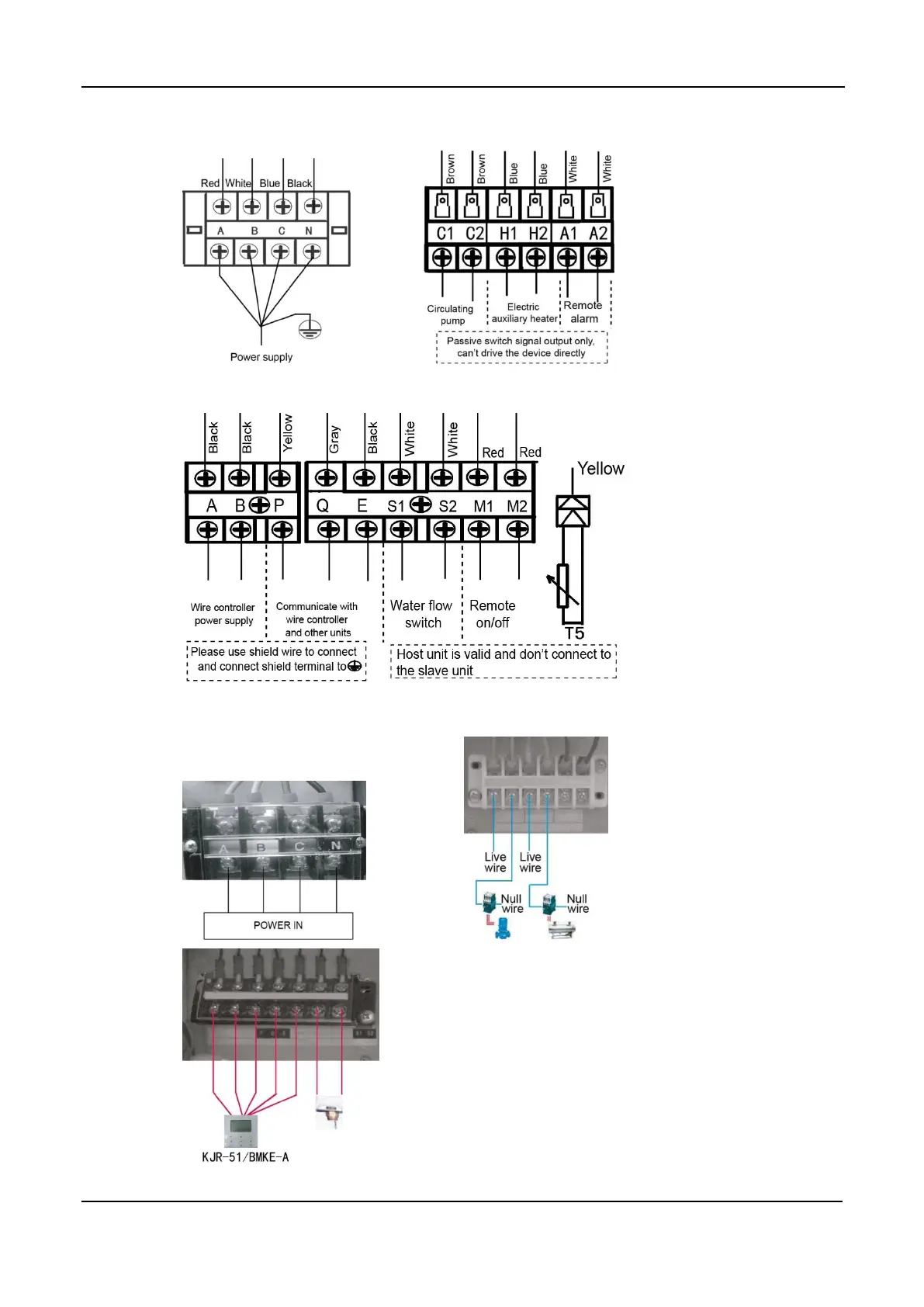

 Electric wiring figure
 Electric control schematic diagram of the unit (Only for reference)
When power supply wire of the wired controller is less than 20m, wiring can be applied as the location shown
