Midea SMK-D140HHN1-3

High Temperature Hydro Module
20 202003
Midea
VR High Temperature Hydraulic Module

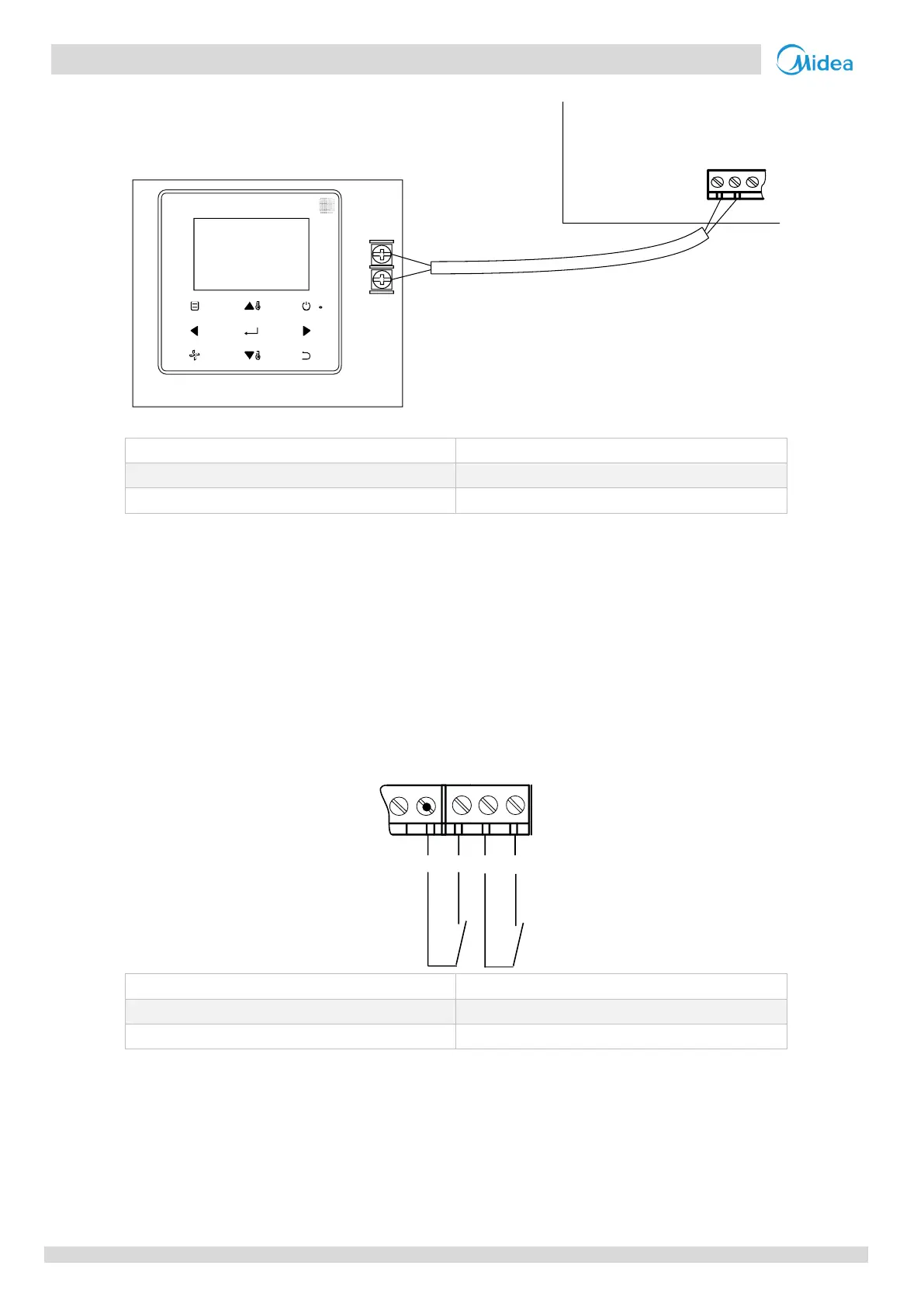

 Wired controller wiring
 Wires X1 and X2 do not have polarity requirements.
Voltage
18 V DC
Maximum running current (A)
0.1
Wiring size (mm2)
2x0.5
 Free electrical signal port N1/N2
 Cheap electrical signal port M1/M2
Used for energy management and to identify cheap or free electricity. When N1 is connected to N2, the electricity is
determined to be free electricity. When M1 is connected to M2, the electricity is determined to be cheap electricity. When
receiving cheap or free electrical signal, the hydraulic module will automatically start. (For detailed settings, refer to the
Service Manual)
Voltage
12 V DC
Maximum running current (A)
< 0.1
Wiring size (mm
2
)
2x0.5
X1X2
Hydro module
Wired Controller
X2
X1
CN15
CN15
N2N1
M2
M1
