VR High Temperature Hydraulic Module

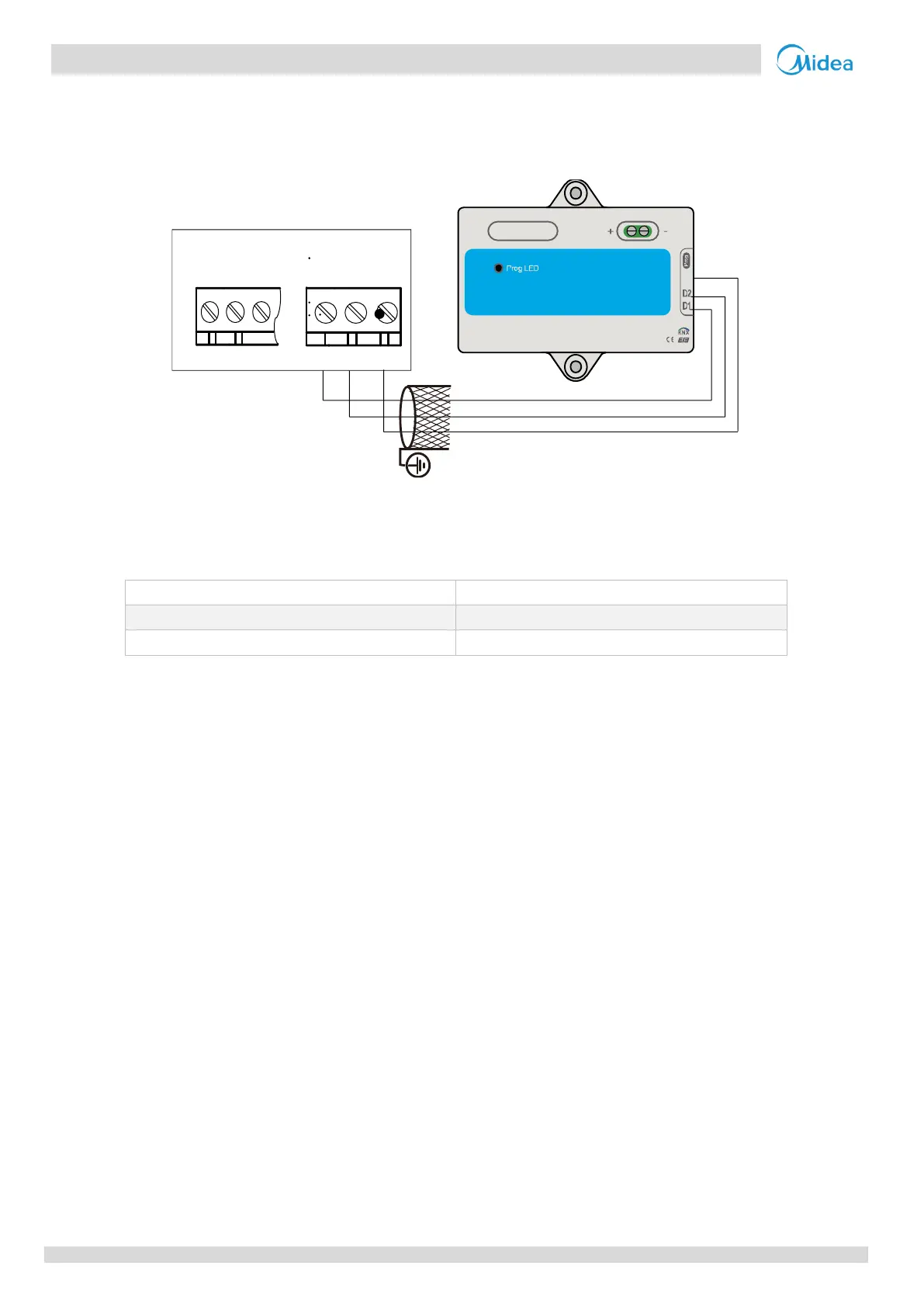

 The hydraulic module can connect the KNX gateway via D1\D2\E so that the third-party wired controller can control
the hydraulic module. In this case, X1 and X2 can be used for check query by connecting or without connecting the
wired controller, but cannot be used for control.
Hydro-box
X2X1
CN15
CN17
D2
D1
E
GW-KNX
E
tinUCA
Voltage
2.5~2.7 V DC
Maximum running current (A)
< 0.1
Wiring size (mm
2
)
3x0.75 shielded cable
