MCAC-UTSM-2014-03 R410A 380~415V 3Ph 50Hz TempMaker Series Split AC
72

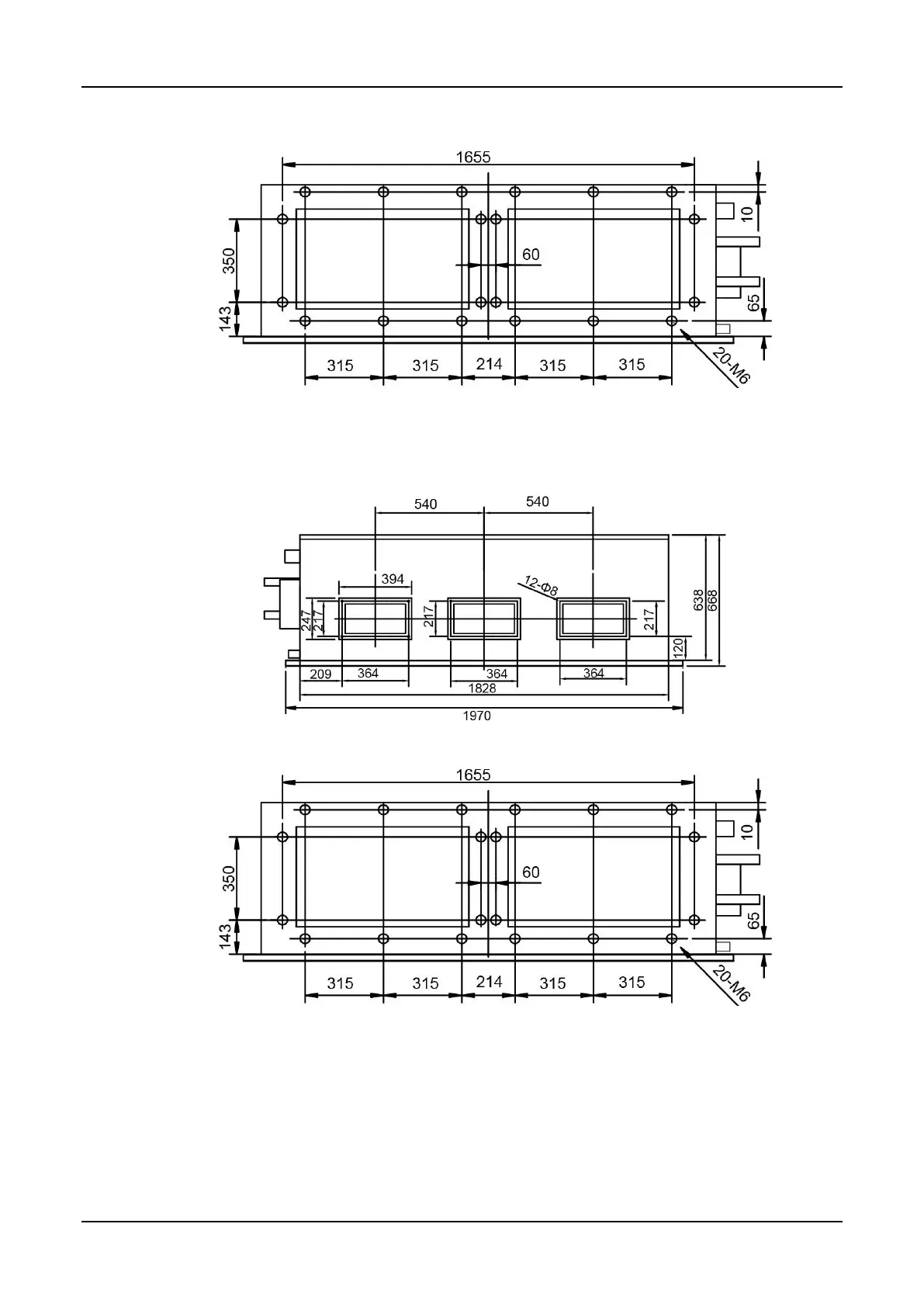

View of air inlet side (Unit: mm)
MHA-192HWN1
View of air outlet side (Unit: mm)
View of air inlet side (Unit: mm)
2.3 Install the drainage pipe
Install a drain stream trap in the drainpipe to prevent water from overflowing.
In order to prevent faults caused by condensate of the refrigerant pipe and drain pipe, perform
