R410A 380~415V 3Ph 50Hz TempMaker Series Split AC MCAC-UTSM-2014-03
79
5. Connection of Refrigerant Pipe

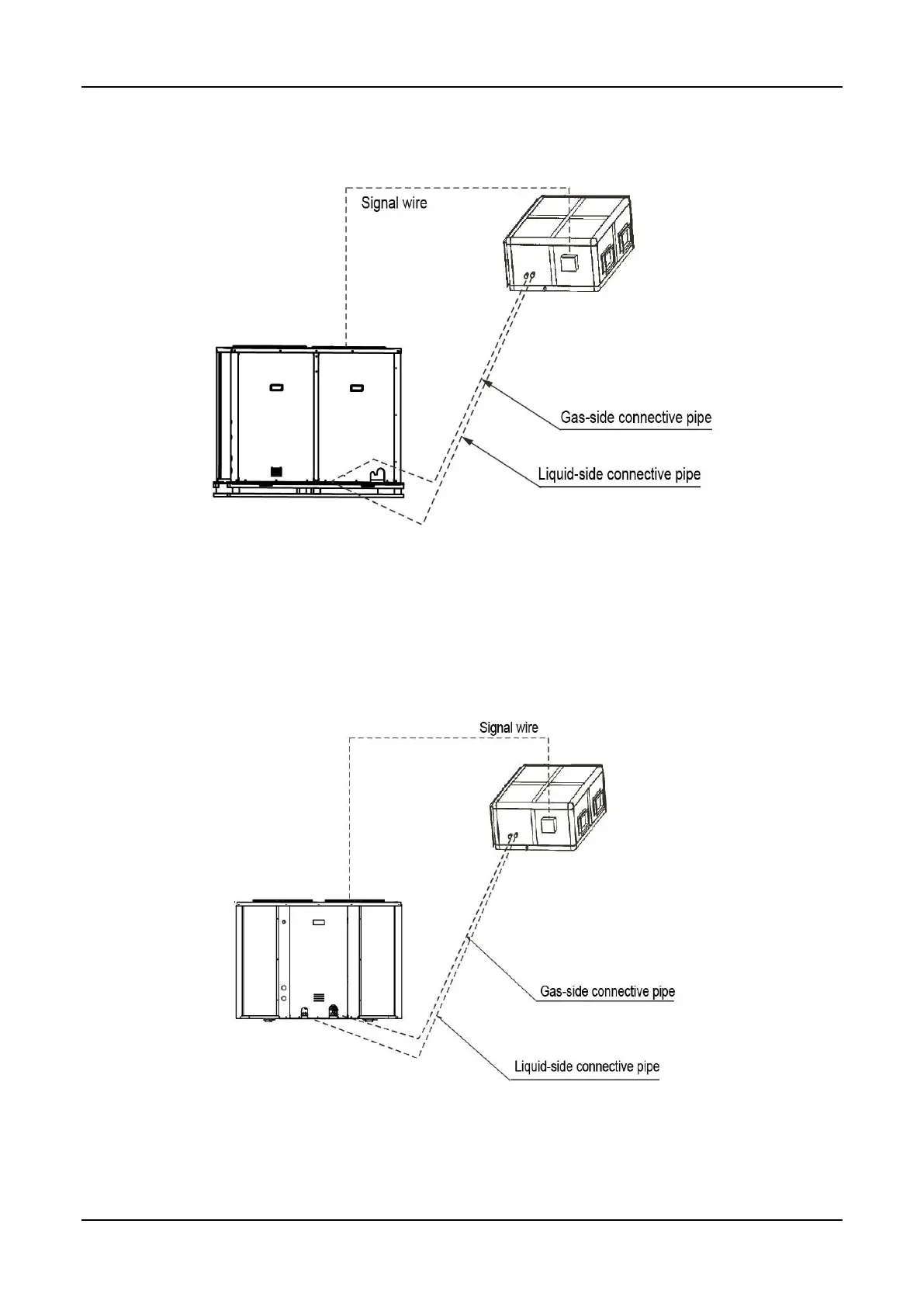

Schematic diagram of connection between indoor unit and outdoor unit:
MTB-76HWN1 + MOV-76HN1-R
MTB-96HWN1 + MOV-96HN1-R
MHB-76HWN1 + MOV-76HN1-R
MHB-96HWN1 + MOV-96HN1-R
MTB-12HWN1 + MOV-120HN1-R
