MCAC-UTSM-2014-03 R410A 380~415V 3Ph 50Hz TempMaker Series Split AC
74

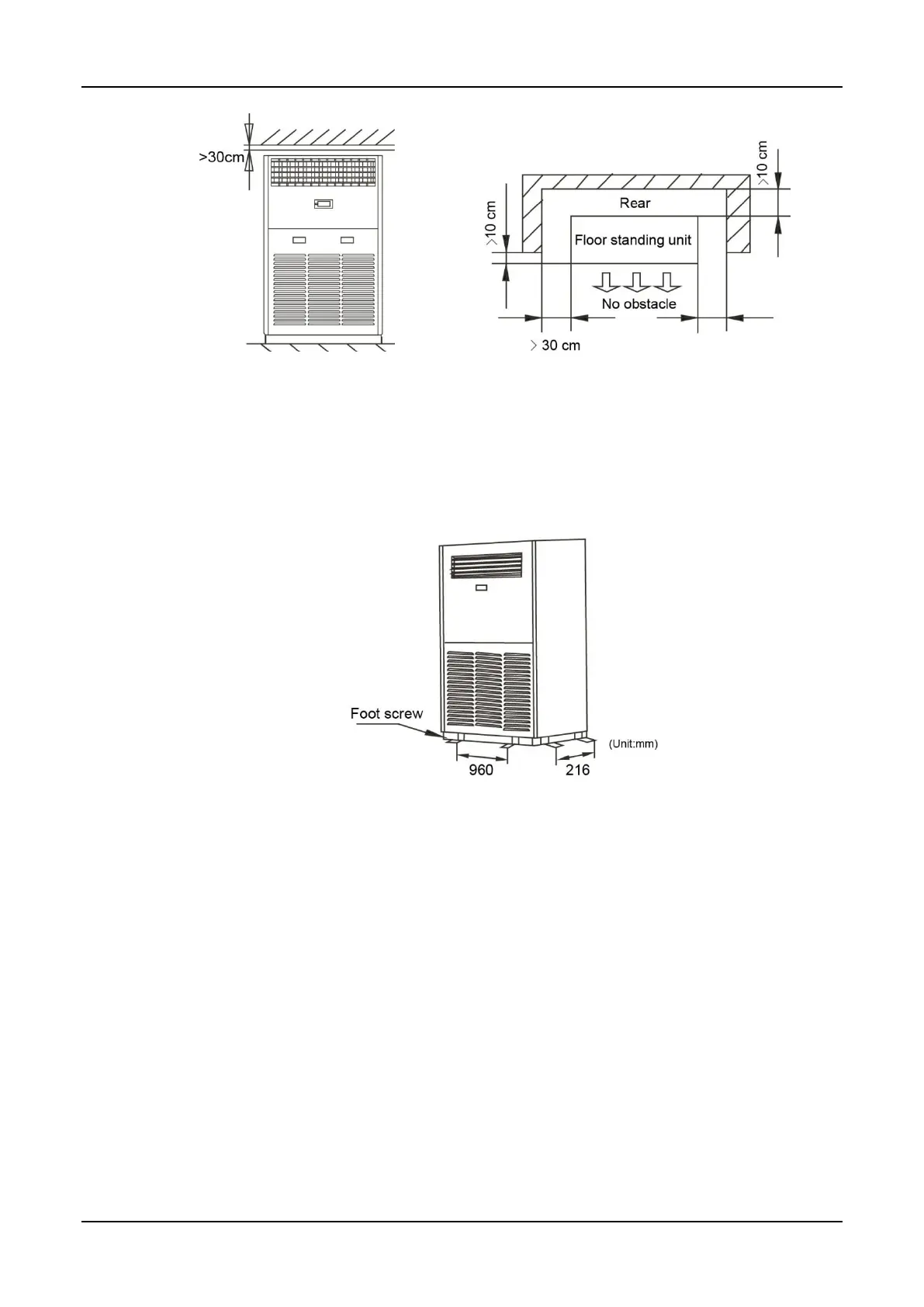

For anti-fall down, please conduct the follow measure:
a. Fix the feet on the floor after select a proper place for installation, since the height of the
unit casing is very high.
b. The right and left sides as weel as rear can be fixed, it is necessary to select the unit
fixed measure as per to the actual installing ambient.
Notes:
It is be ware of the foot screw, which may be hurt for the passby people, make sure enough securit
of that, prevent accident occure.
Before electric connection, uncover the screw-cap in the air intake panel, and then lossen
the screws.
Take off the air intake panel, ensure which place secure enough will not make risk to the
other people.
To Next Page
