VC Pro VRF 50/60Hz

149

Part 3 - System Design and Installation

Ducting for 24-30HP Units

3.3.5 Transverse ducting only

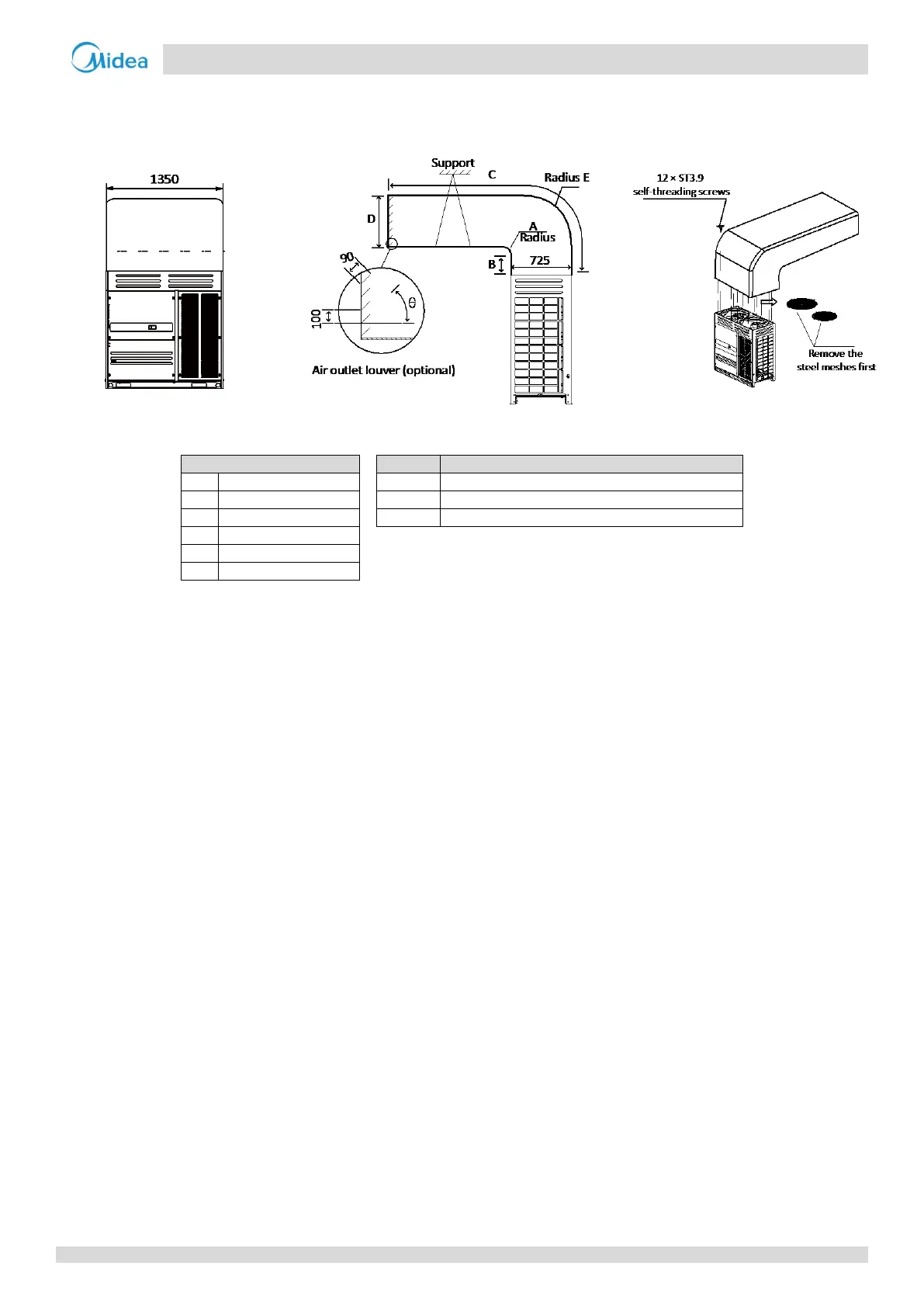

Figure 3-3.6: Transverse ducting for 24-30HP units (unit: mm))

Table 3-3.9: Duct dimensions

Table 3-3.10: External static pressure

Dimensions (mm)

ESP (Pa)

Remarks

A ≥ 300

Factory default

B ≥ 250

0 – 20

Remove steel mesh and connect to duct < 3m long

C ≤ 3000

> 20

Customization option

725 ≤ D ≤ 760

E = A + 725

Θ ≤ 15°

Midea VC Pro Series User Manual
