Midea VC Pro Series

VC Pro VRF 50/60Hz
37
Part 2 - Outdoor Unit Engineering Data
54/56/58/60HP

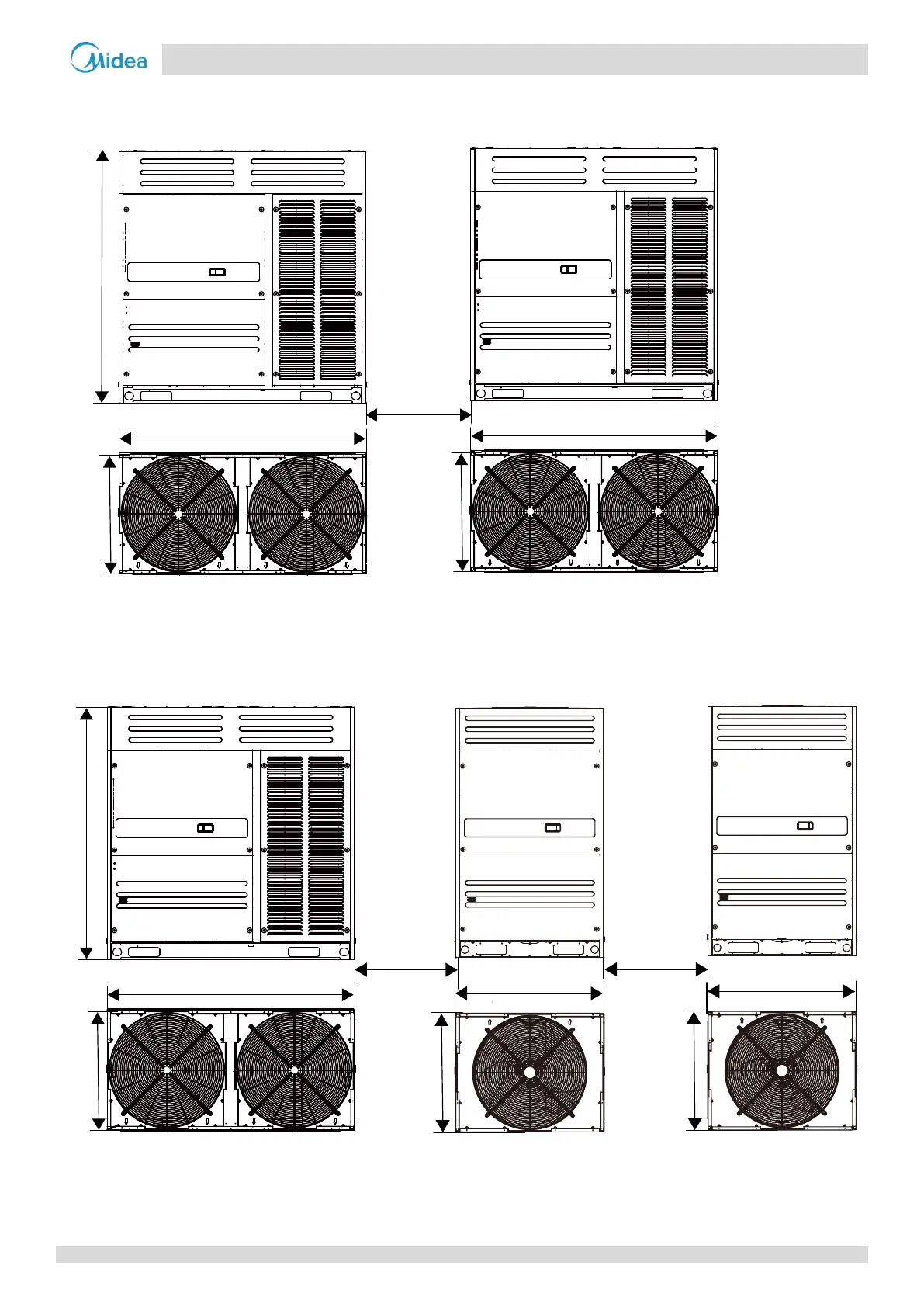

Figure 2-2.8: 54/56/58/60HP dimensions (unit: mm)
62HP
Figure 2-2.9: 62HP dimensions (unit: mm)
1615
765
1585
Outdoor unit 1
200-500
765
1585
Outdoor unit 2
960
765
1615
960
765
200-500
Outdoor unit 2 Outdoor unit 3
200-500
765
1585
Outdoor unit 1
