Midea VC Pro Series User Manual

VC Pro VRF 50/60Hz
42
Midea VC Pro Series Engineering Data Book
18-22HP

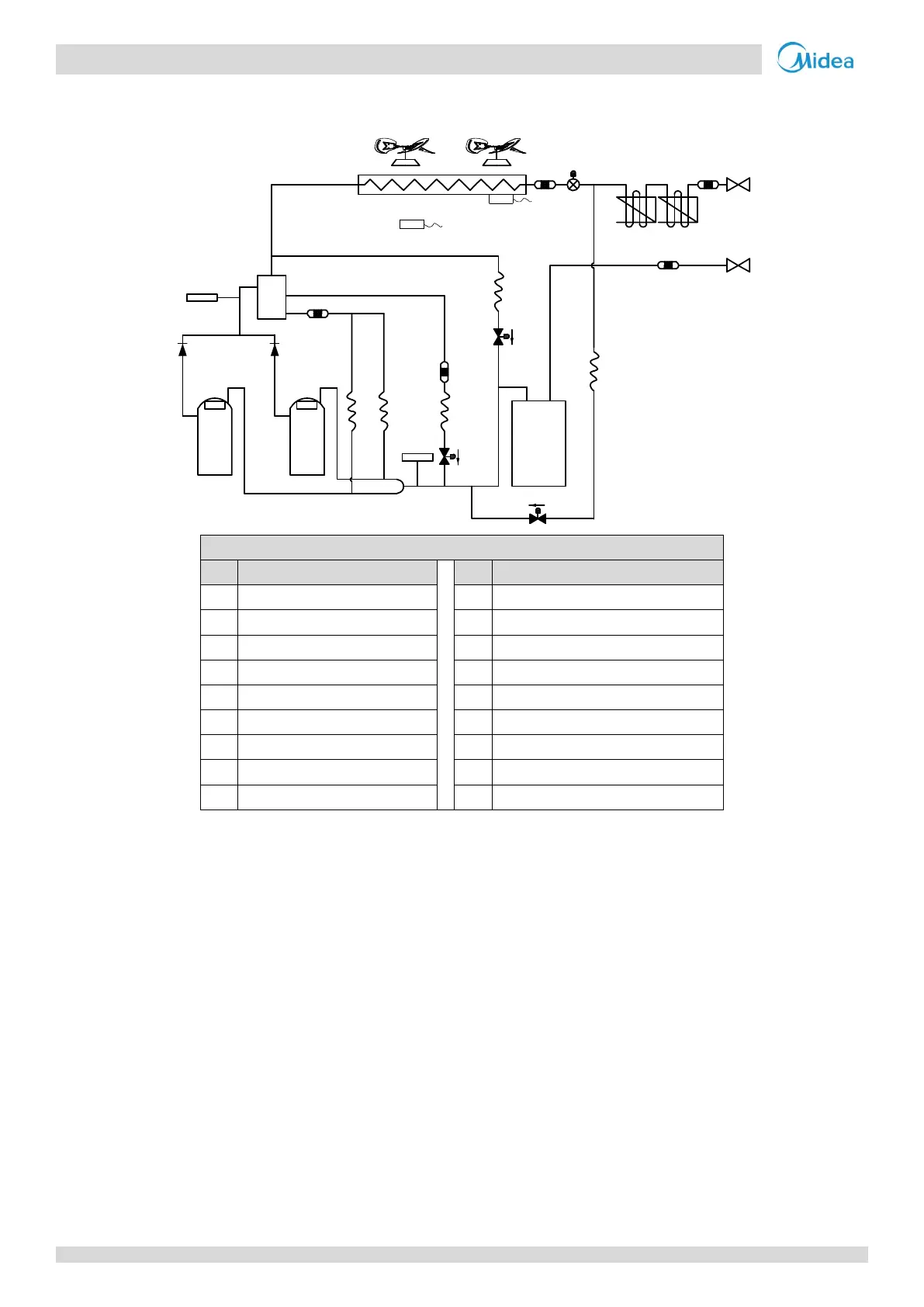

Figure 2-4.2: 18-22HP piping diagram
Legend
No.
Parts name
No.
Parts name
1
Compressor
10
Stop valve (gas side)
2
Discharge temperature sensor
11
Accumulator
3
High pressure sensor
12
Low pressure switch
4
Oil separator
13
Solenoid valve
5
Heat exchanger
T3
Heat exchanger temperature sensor
6
Electronic expansion valve (EXV)
T4
Outdoor ambient temperature sensor
7
Fan motor
SV2
Liquid injection valve
8
Fan
SV4
Oil return valve
9
Stop valve (liquid side)
SV7
Pressure valve
3
4
9
10
12
13
13
8
7
SV4
SV7
11
13
SV2
8
7
5
6
EXVA
XX°C
T3
T4
XX°C
2
1
2
1
