Be sure to select a special gas rubber hose or a suitable rigid tube and a gas relief valve.
Select the pipe size according to Table 1.
The length of the rubber hose shall not exceed 2 meters.
The rubber hose must be connected to the red line position of the gas inlet joint and
secured with a clamp.
After installation, check the unit with suds for gas leak.
Installation of gas pipe
As show in the figure below, tap in expansion screws for fixation, hang the unit vertically
and screw it down with nuts, insert plastic plugs below it and screw down self-tapping
screws.

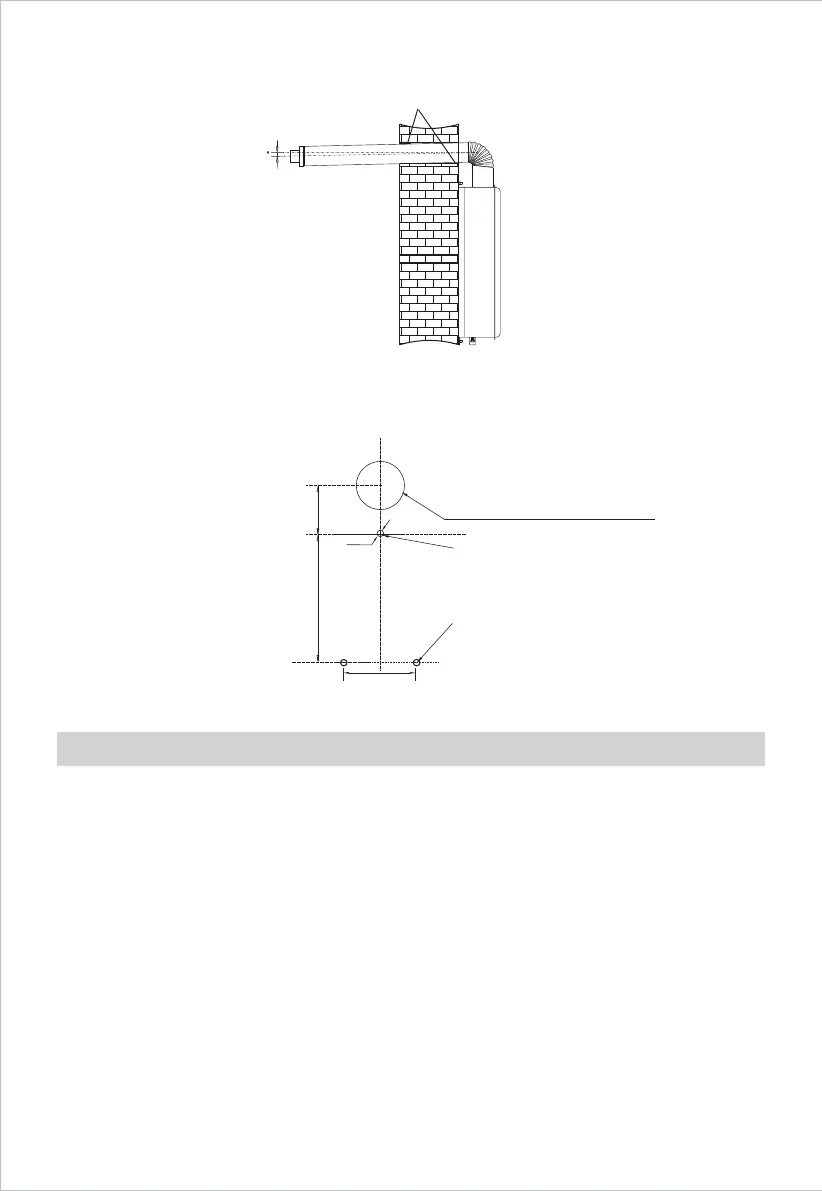

b. Installation mode of top rear exhaust.
a. Caution
When LPG is used, connect the attached gas inlet hose joint to the gas supply pipe joint
of the unit (be sure to mount a rubber sealing ring), then connect it with an Ф 9.5mm
special gas rubber hose. Insert one end into the hose joint of the unit’s gas inlet until the
hose is fitted over the red groove of the joint, and hold it with a clip.
b. Connect the unit to the gas joint with G1/2 pipe thread.
Incline downward by 3°
Packing seal
2 mounting holes for
self-tapping screw
plastic plug
1 mounting hole for
expansion screws
Ф 110 ~ Ф 120 round hole
Wall-through hole
90
595.3 100
3*Ф8
