Midea WHT 4.60 IX

INSTALLATION

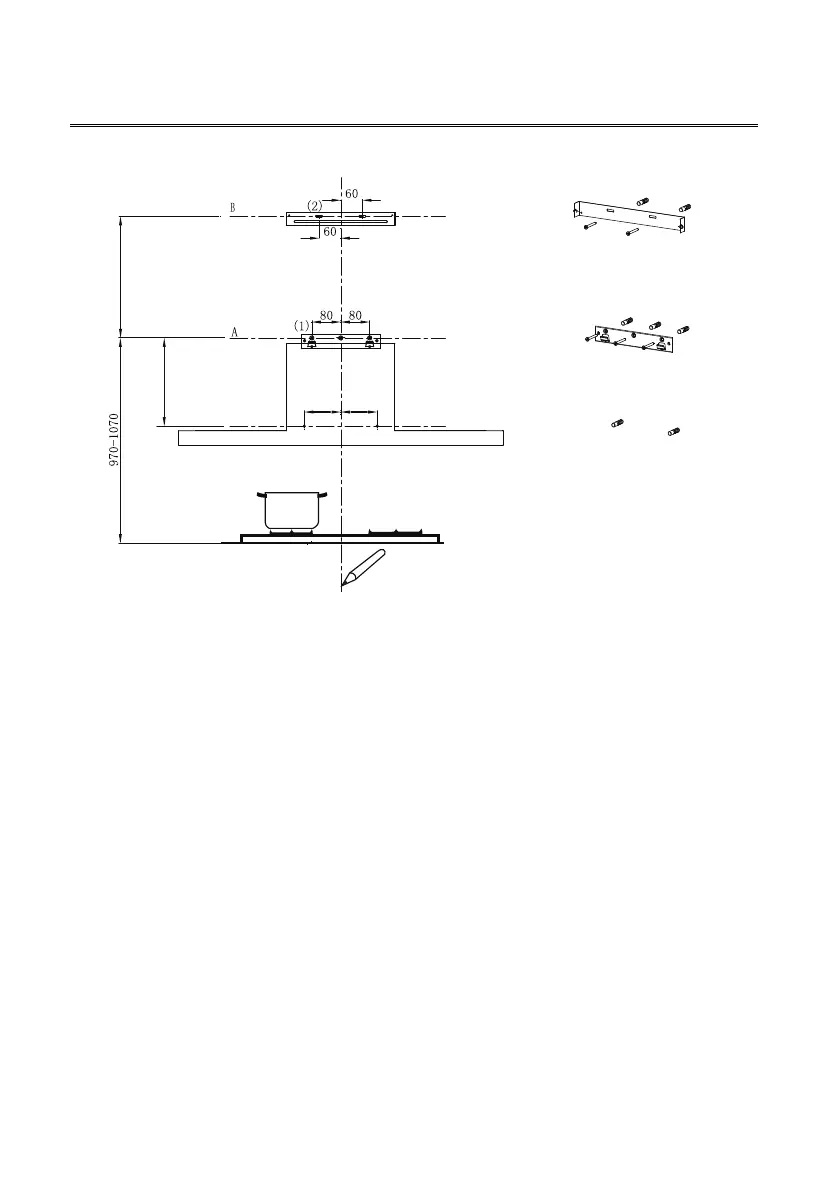

Wall drilling and bracket fixing
100
100
C
(3)
Vertical reference line
243
5
160-500
As a first step, proceed with the following drawings:
• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which
the hood is to be fitted.
•
A horizontal line A at 970 – 1070 mm above the cooker top.
•
A horizontal line B at a 160 - 500 mm above the horizontal line A.
•
A horizontal line C at a 243 mm below the horizontal line A .
Mark
Points:
• Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
•
Repeat this operation on the other side and on the vertical reference line, checking that
the three marks are leveled.
•
Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
•
Repeat this operation on the other side, checking that the two marks are on the same
horizontal line.
•
Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line . Repeat
this operation on the other side , checking that the two marks are leveled.
Fix the brackets:
• Drill holes at the marked points with a ɸ10 mm drill bit.
•
Insert the Wall Plugs 11 into the holes.
•
Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
•
Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.
