CHIMNEY ASSEMBLY
The chimney can only be installed with exhausting hood.

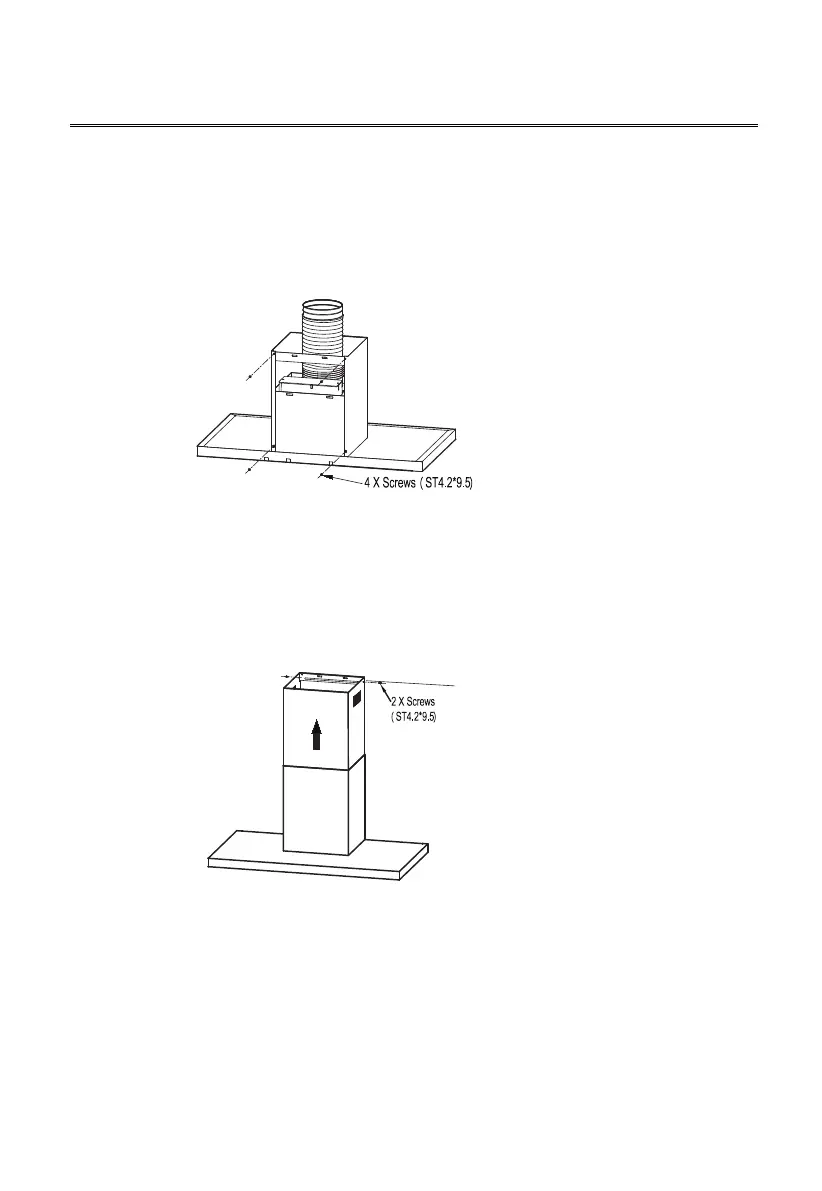

Lower Decorative Chimney
• Fix the exhaust pipe on the hood body, connect chimney and hood body with 2 screws
12. connect chimney fixing bracket and chimney with 2 screws 12.
Upper Decorative Chimney
• Insert the upper decorative chimney 2.2 into the lower decorative chimney
2.1 and drag it up to the horizontal line B
• Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2
screws 12 .
