midiplus Audiolink Light User Manual

MIDIPLUS Co, Ltd.
5
http://www.midiplus.com.tw
Chapter 1：Audiolink Light

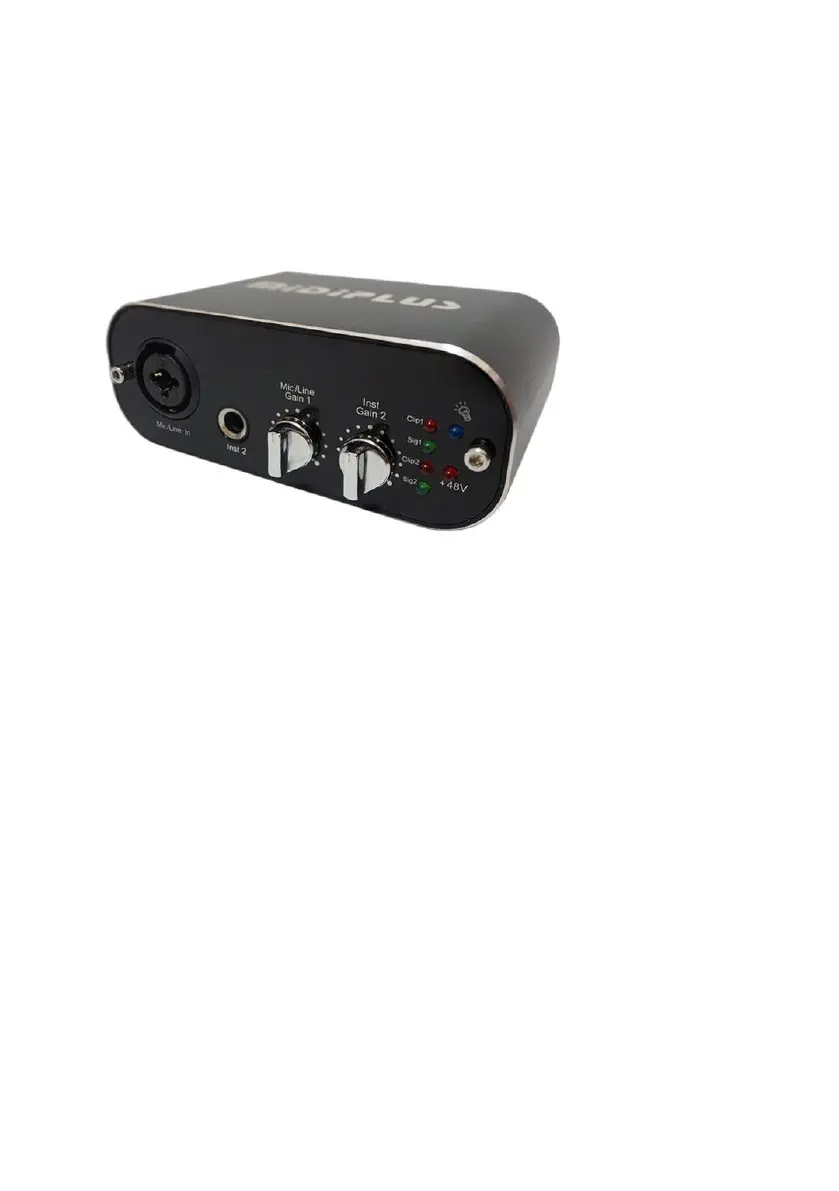

1.1 Front panel Overview
XLR MIC and Instrument Input
This XLR/jack combo balanced connector accepts an microphone level
signal with a XLR jack or in the middle a TRS jack. Beside the MIC/TRS
connectors there are 2 LEDs to monitor the signal and peak levels. Both
inputs can also used with MONO jacks as LINE Inputs.
2 x MIC level control
This level controllers regulates the level of the signals going from the
MIC input.

midiplus Audiolink Light Specifications

General

Brand	midiplus
Model	Audiolink Light
Category	Recording Equipment
Language	English
