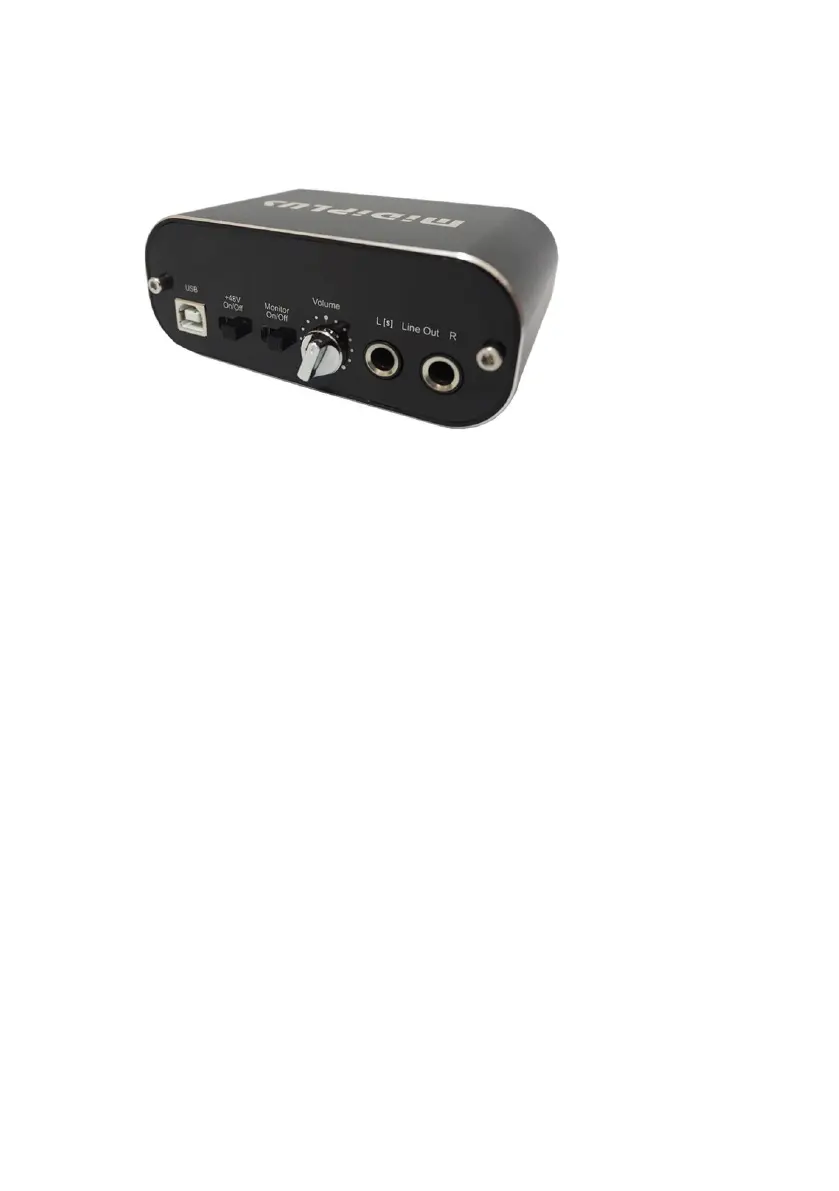

1.2 Rear panel overview
LINE OUT output level control
This level control regulates the level of the output signal for the Line out,
and if the left side is used alone, for the stereo headphone level.
USB Jack
This jack connects the Audiolink to your computer, using a USB 1.1 (or
higher) connection.
Monitor switch
This switch routes the signal from the Inputs directly to the Outputs, so
that the signal has no latency.
+48V Phantom power switch
Switch this to select between microphones with or without phantom
power (dynamic and condensator microphone) at channel 1.
LINE Output (stereo)
These unbalanced RCA output the signal, which is output from your
computer and should beconnected to a pair of powered speakers, a
mixer or a stereo receiver.
