Using the Midi-Interface
The MIDIPLUS STAGE 88 has a build in midi-interface; which transfers the midi data
from the keyboard to the computer, but also from the keyboard to other device. Both
midi-outs are separate usable, to control a sound expander or maybe an effect
device. In your music program you can set the midi-out-port (computer USB port) as
the output of computer and also the MIDI out-port (keyboard) as the output of the
keys of the keyboard. If the driver installation is correct, you can use the interface
without problems.

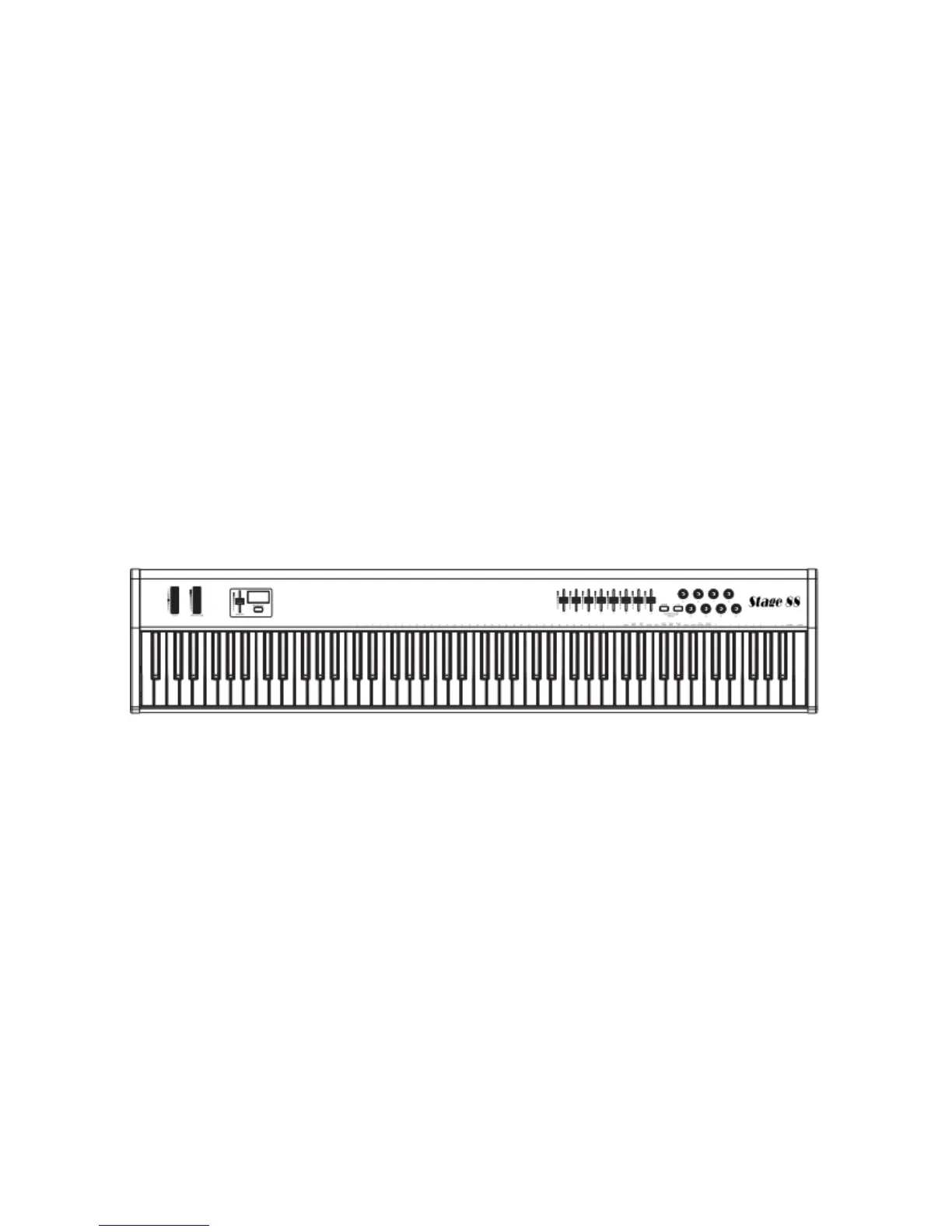

Overall Diagram Preview
Operation panel:
Power [hold] button
The LED display lightens up once USB power cable connected.
To Turn off power hold on power button 5 seconds to turn off power off keyboard.
Pitch Bend Wheel
The Pitch Bend wheel is used for raising or lowering the pitch of a voice during
performance. The range of pitch values depends on the sound generator (sound
card or module) being used. Please refer to the manuals of your devices for
information on how to change the Pitch Bend range. To bend the pitch up, please
