Midland ALAN 42 MULTI User Manual

2
ENGLISH
2

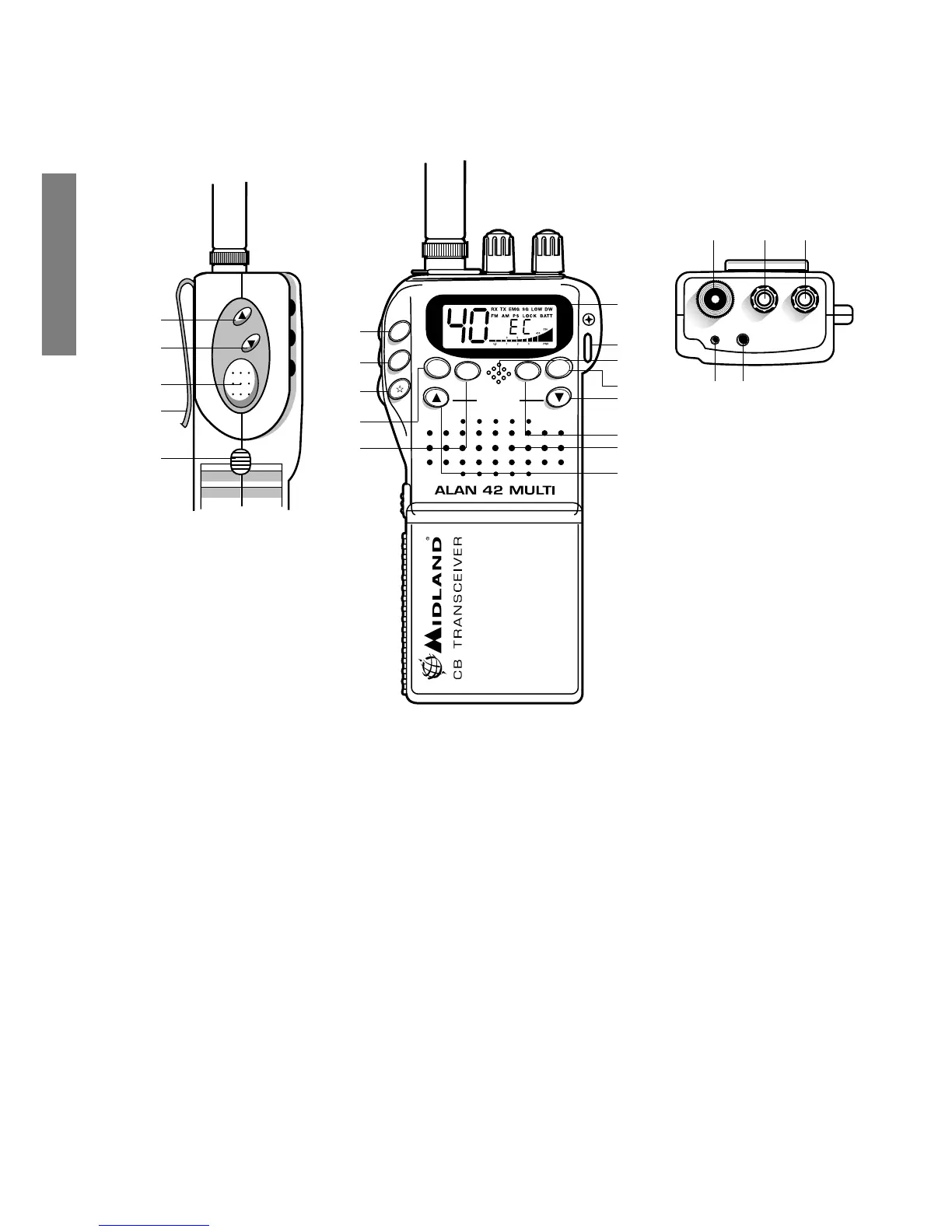

FUNCTION AND LOCATION OF THE CONTROLS
1. Antenna connector: insert into this plug the antenna supplied with the radio. It is
possible to use external vehicular antennas to obtain a better performance.
2. Squelch Control: this control cancels the background noise of the receiver. By
turning the knob to the right the function is activated, by turning the knob to the
left the function is deactivated. The knob should be regulated exactly at the point
where the receiver background noise disappears.
3. On/Off Volume Control.
In ‘’off’’ position your transceiver is off. Turn this control clockwise to switch on
the unit. Turn the knob clockwise a little more to set the audio level, until you get a
comfortable reception.
4. MIC jack: connect by inserting the loudspeaker mike to the plug.
5. External loudspeaker jack: connect by inserting the loudspeaker mike to the
plug.
6. Belt clip
MIC
SPK
SQL
OFF/VOL
1 2 3
54
CHANNEL
21
22
18
6
23
15
16
17
8
9
7
20
10
12
13
11
13
14
LCD
EMG
A/F H
/L
LOCK
MIC
CHANNEL
DW
SC
Q.UP Q DOWN
LCR

Midland ALAN 42 MULTI Specifications

Power

power supply	7.2 ÷ 13, 2 nom 12V
current drain at standby	100 mA when the save mode is off, 45 mA when the save mode is on
current drain	900 mA

Receiver Specifications

sensitivity at 10dB S/N	0.5µV (AM), 0.25µV (FM)
selectivity	more than 60dB
audio output power	0.5W 8 ohm (10% distortion)

Transmitter Specifications

RF output power	duty cycle 10% 4W AM/FM
frequency tolerance	0.005%
harmonic suppression	more than 70 dB

Weight and Dimensions

dimensions	30x70x140 mm
weight	220 gr
