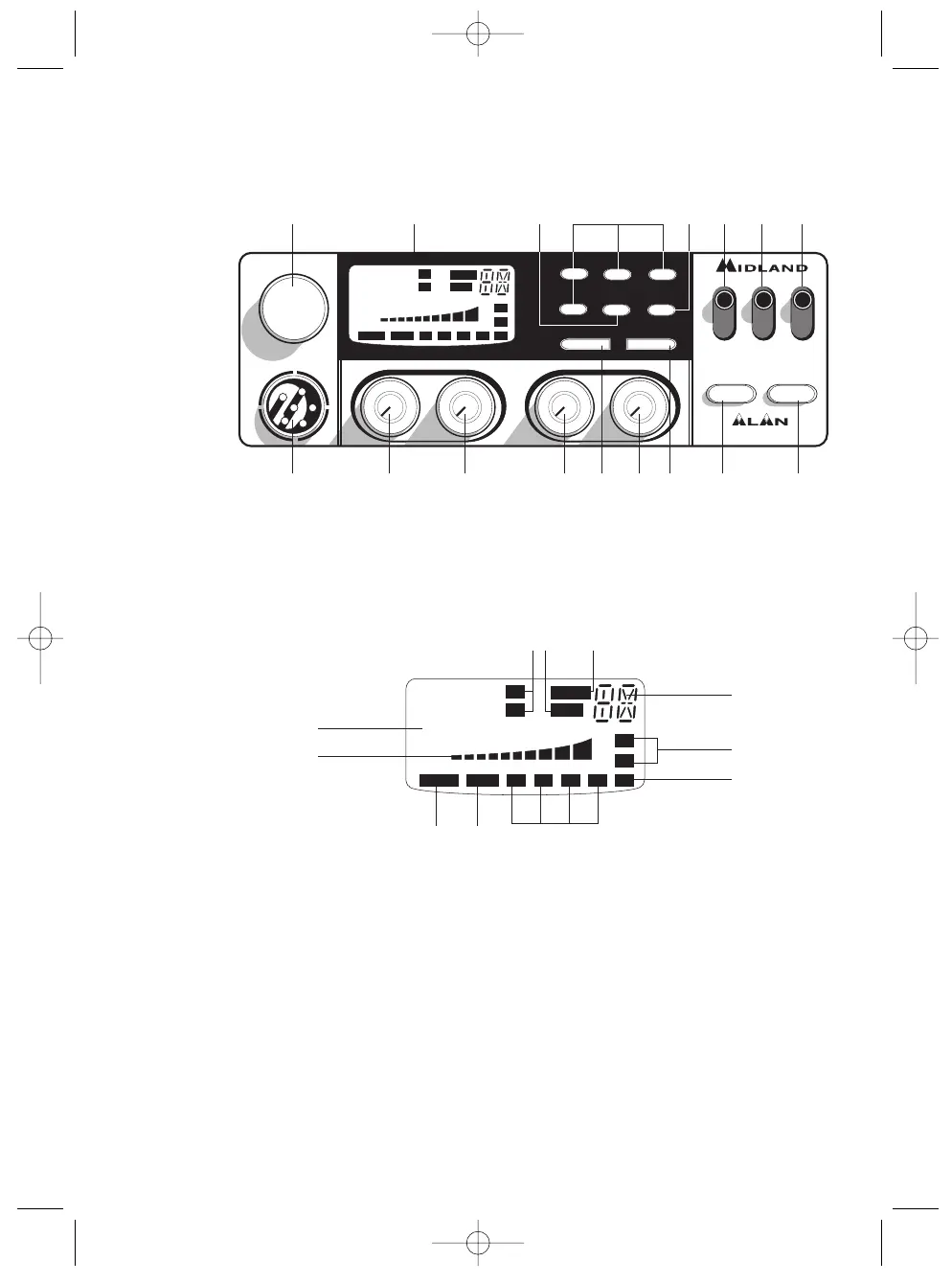

FUNCTION AND LOCATION OF THE CONTROLS
1. Channel selector
2. Microphone jack: Insert the mic connector into this jack.
3. Multifunction backlighted display.
A.Channel selected number
B.The received signal strength and the power of the transmitting signal
C.AM/FM mode
D.RX/TX: TX=transmit mode; RX=receive mode
E. SCAN mode
F. EMG mode
G.M1-M2-M3-M4: preset memory channels
H.DW: Dual Watch activated
I. Frequency band selected.
J. LOW: displayed when the radio transmits in low power (this mode is possible with
some frequency bands only – see the frequency band chart).
K.LOCK: microphone (UP/DOWN buttons) lock enabled.
4. “ON/OFF Volume” Control: in ‘’off’’ position your transceiver is OFF. Turn this control
clockwise to switch on the unit. Turn the knob clockwise a little more to set the audio
2
