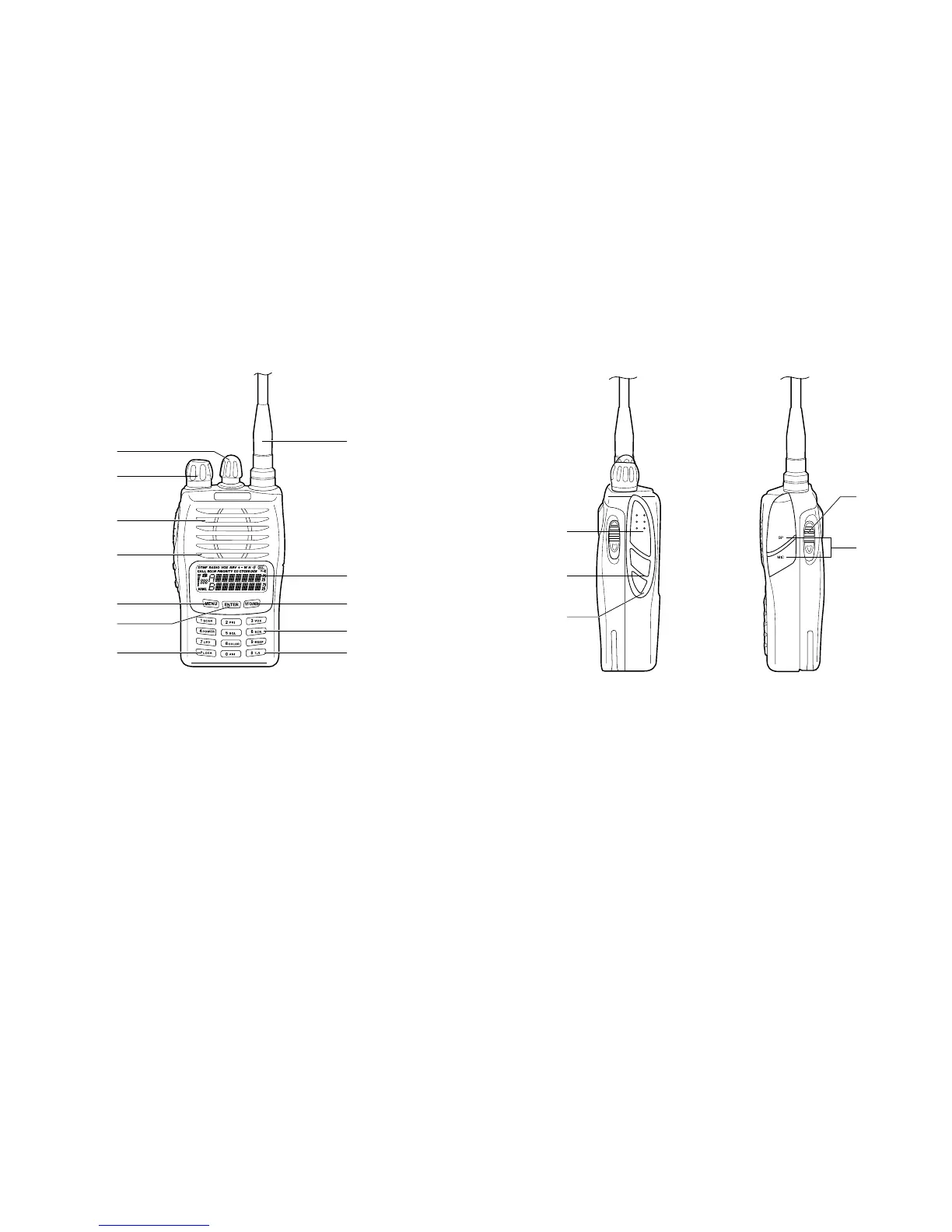

Transceiver
1. Power switch/volume control
2. Encoder Knob
3. Antenna
4. LCD display
5. MENU
6. ENTER (To enter the menu functions and confirm your selections)
7. Alphanumerical keypad
8. LOCK (keypad lock)
9. T-R (Frequency inversion activation)
10. VFO/MR (to change the radio modes)
A PTT (push to talk) key
B Flank key1: A/B frequency selector - single or dual band -, FM radio
C Flank key2: 1750/1450/2315 tone (programmable) or DTMF (pro-
grammable)
D Ext. speaker/microphone jack
E Battery latches
1
2
1
1
6
5
3
8
4
10
7
9
A
B
C
D
E
