DESCRIPTION OF THE CONTROLS AND FUNCTIONS
Display

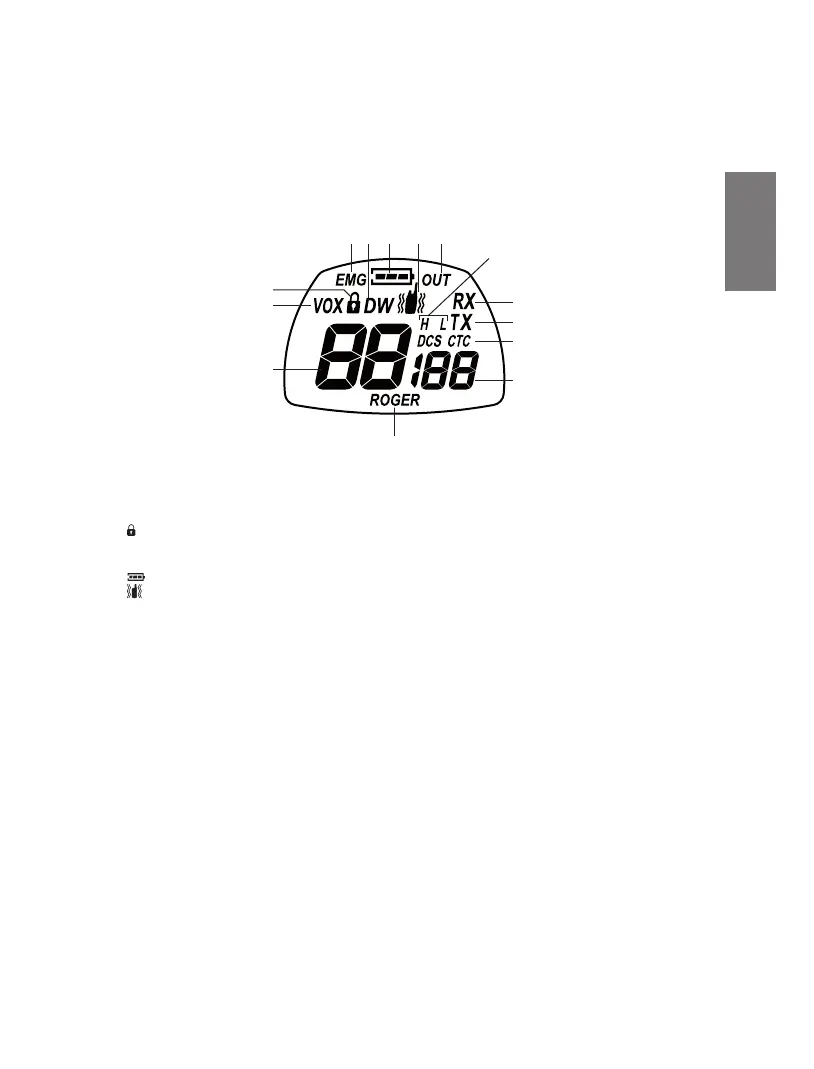

Your Midland G9 keeps you constantly updated about its operational status through a Liquid Crystal Display
(LCD). The symbols and their corresponding parameters that may appear, according to the operational status of
the device, are described as follows:
1. CHANNEL These two large digits indicate the selected channel
2. VOX VOX function activated
3.
CALL
MENU
EMG
1
2
5
3
4 6 8 7
11
9
10
12
13
14
15
24
23
22
21
20
19
18
17
16
This symbol appears when the keypad lock is activated
4. EMG Emergency function activated
5. DW Dual Watch activated
6.
CALL
MENU
EMG
1
2
5
3
4 6 8 7
11
9
10
12
13
14
15
24
23
22
21
20
19
18
17
16
Indicates the battery status
7.
CALL
MENU
EMG
1
2
5
3
4 6 8 7
11
9
10
12
13
14
15
24
23
22
21
20
19
18
17
16
Vibra-CALL function activated
8. OUT Indicates if the Automatic Out of Range function looses contact with the other
radios.
9. RX Reception mode
10. TX Indicates the transmission(PTT pressed);
11. H(High) / L(Low) High or low power selection.
The output power of the big PTT depends on your selection.
12. CTCSS/DCS Indicate the type of sub audio tone selected.
13. CTCSS/DCS tone These three small digits indicate the code of the CTCSS/DCS tones
selected (1-38 / 1-104)
14. ROGER Roger Beep activated.
CALL
MENU
EMG
1
2
5
3
4 6 8 7
11
9
10
12
13
14
15
24
23
22
21
20
19
18
17
16
1
2
3
4 5 6 8
7
10
9
11
12
13
14

Midland G9 Specifications

General

VOX	Yes
Water Resistance	IPX4
Display	LCD
Frequency Range	446.00625 - 446.09375 MHz
Channels	8
Output Power	500 mW ERP (PMR446); 10 mW (LPD433)
Weight	120 g (without batteries)
