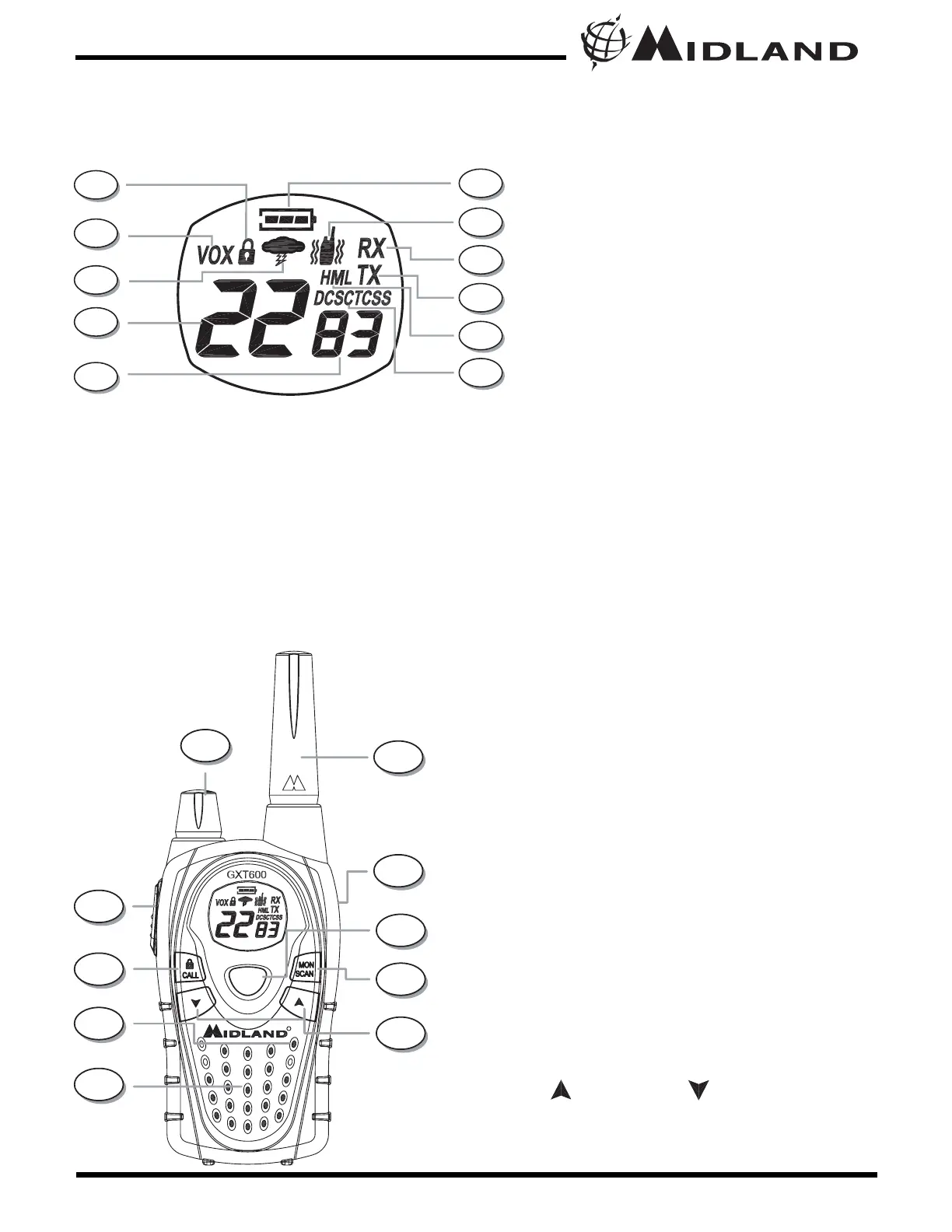

CONTROLS
LCD DISPLAY
1. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
2. eVOX – Indicates when eVOX mode is
active.
3. WX BAND ICON – Indicates when the
radio is in Weather Band mode.
4. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band (1~10 on
WX band).
5. PRIVACY CODE – Indicates Privacy
Code selected by user (oF~38/oF~83).
6. BATTERY METER – Indicates the
battery level.
7. VIBRATE-ALERT ICON – Indicates
when the Vibrate-Alert feature is on.
8. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
9. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
10. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/M/L)
11. PRIVACY CODE ICON – Indicates
Privacy Code setting (CTCSS/DCS).
11. POWER/VOLUME KNOB – Turn clock-
wise to turn the power on and increase
the volume level. Turn counter-clockwise
to decrease the volume level and turn
the power off.
12. PTT Button – Press and hold to transmit
voice communication.
13. CALL/LOCK Button – Press to send a
CALL tone signal. Press and hold to turn
KEY LOCK on/off.
14. MIC – Built-in microphone.
15. SPEAKER – Built-in speaker.
16. ANTENNA.
17. EXTERNAL SPEAKER/MIC JACK.
18. MENU Button – Press to access Menu
mode. Press and hold to go to WX Band
Receiver mode.
19. MONITOR/SCAN Button – Press to
enter SCAN mode. Press and hold to
enter MONITOR mode
20. UP and DOWN Button – Make
adjustments in MENU mode.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
20
19
18
17
16
Model GXT600/650 Series
